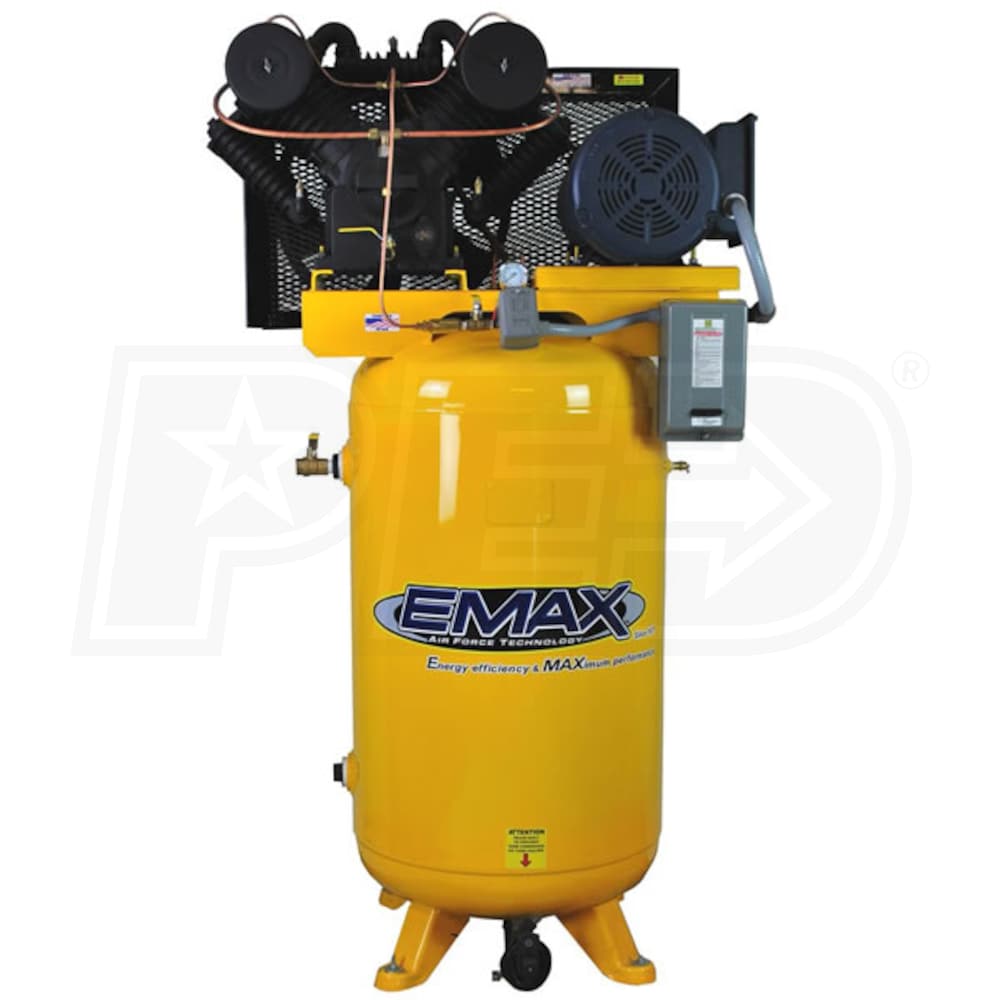

EMAX Industrial Plus 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model: EP07V080V1
+
Share This Product
-
Product Description
-
6Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
26
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
26 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
- Pressure Lubricated Two-Stage Cast Iron Pump
- Dual control design allows for automatic or continuous run
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
- Ram-Tek - Solid Steel, Heavy Gauge Rods
- Built for maximum performance & durability
- Flow-Tek - Concentric Disc Valves
- Delivers maximum performance & longevity
- Cool-Tek - The Coolest Running Compressors In The Industry
- Air Stream Technology provides 35% lower operating temperature
- Reduces moisture build up & extends pump life
- 7.5-HP Industrial Grade Motor
- Low 1750 RPM design extends useful life

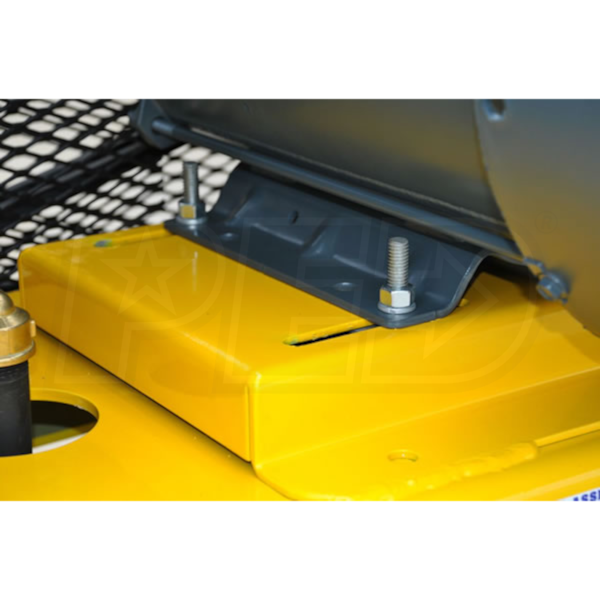

- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life
- Auto Tank Drain
- 110V Dual timer controlled, eliminates daily maintenance

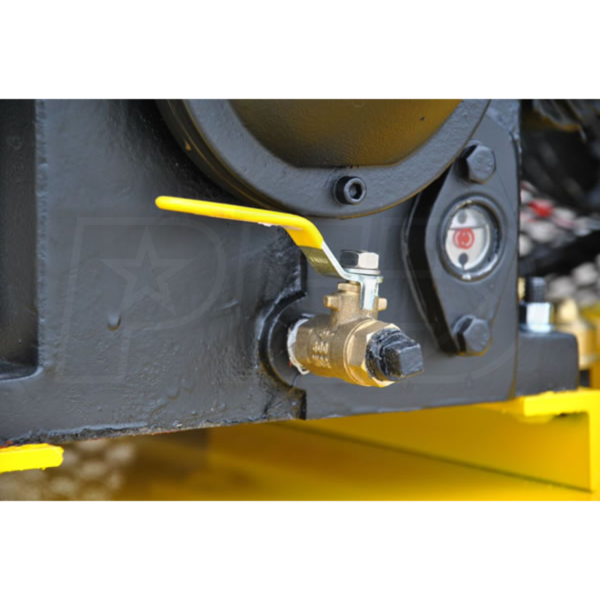

- Gate Valve Oil Drain
- Provides quick, clean oil changes
- 5 Year Limited Warranty On Air Compressor Tank & Lifetime Limited Warranty On Pressure Lubricated Pump
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA
78
Magnetic Starter
Yes
Amp Draw
32
Recommended Breaker
50 Amp Breaker
Engine
HP
7.5
Pump
CFM
26
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
958 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
34 Inches
Product Width
24 Inches
Product Height
72 Inches
Power Type
Electric
UPC
815002010120
Grade
Style
CFM
26
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
26 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
- Pressure Lubricated Two-Stage Cast Iron Pump
- Dual control design allows for automatic or continuous run
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
- Ram-Tek - Solid Steel, Heavy Gauge Rods
- Built for maximum performance & durability
- Flow-Tek - Concentric Disc Valves
- Delivers maximum performance & longevity
- Cool-Tek - The Coolest Running Compressors In The Industry
- Air Stream Technology provides 35% lower operating temperature
- Reduces moisture build up & extends pump life
- 7.5-HP Industrial Grade Motor
- Low 1750 RPM design extends useful life
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life
- Auto Tank Drain
- 110V Dual timer controlled, eliminates daily maintenance
- Gate Valve Oil Drain
- Provides quick, clean oil changes
- 5 Year Limited Warranty On Air Compressor Tank & Lifetime Limited Warranty On Pressure Lubricated Pump
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA
78
Magnetic Starter
Yes
Amp Draw
32
Recommended Breaker
50 Amp Breaker
Engine
HP
7.5
Pump
CFM
26
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
958 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
34 Inches
Product Width
24 Inches
Product Height
72 Inches
Power Type
Electric
UPC
815002010120
