EMAX Industrial Plus Silent 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model: ESP07V080V1
+
Share This Product
-
Product Description
-
2Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
29
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
29 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features

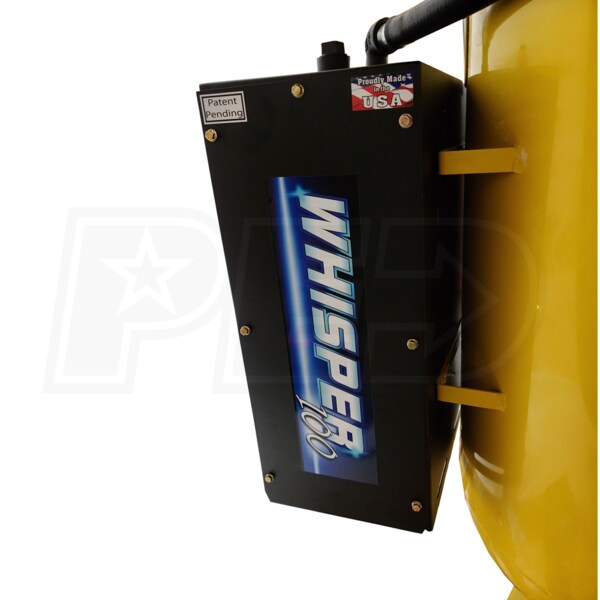

- Whisper 100 Series Silencer
- Reduces dBA readings by up to 25%
- Provides 5-layer filtration ideal for heavy airborne particle work environments
- Two-Stage Cast Iron Pump
- Dual control design allows for automatic or continuous run
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
- Solid Steel, Heavy Gauge Rods
- Built for maximum performance & durability

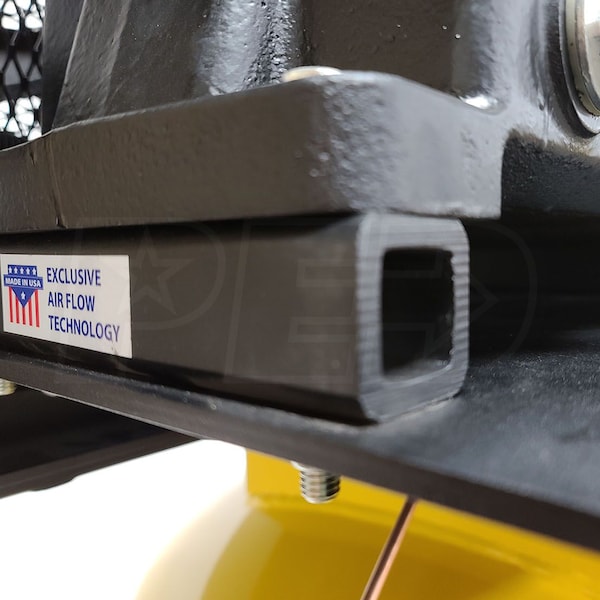

- Air Stream Technology
- Provides 35% lower operating temperature; coolest in the industry
- Reduces moisture build up & extends pump life
- 7.5-HP Industrial Grade Motor
- Low 1750 RPM design extends useful life; 64 Amp startup
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life
- Auto Tank Drain
- 110V dual timer controlled, eliminates daily maintenance
- 5 Year Factory Warranty
- Protects your investment
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
32
Recommended Breaker
50 Amp Breaker
Engine
HP
7.5
Pump
CFM
29
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
743 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
24 Inches
Product Width
34 Inches
Product Height
80 Inches
Power Type
Electric
UPC
815002013190
Grade

Style

CFM
29
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
29 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
- Whisper 100 Series Silencer
- Reduces dBA readings by up to 25%
- Provides 5-layer filtration ideal for heavy airborne particle work environments
- Two-Stage Cast Iron Pump
- Dual control design allows for automatic or continuous run
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
- Solid Steel, Heavy Gauge Rods
- Built for maximum performance & durability
- Air Stream Technology
- Provides 35% lower operating temperature; coolest in the industry
- Reduces moisture build up & extends pump life
- 7.5-HP Industrial Grade Motor
- Low 1750 RPM design extends useful life; 64 Amp startup
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life
- Auto Tank Drain
- 110V dual timer controlled, eliminates daily maintenance
- 5 Year Factory Warranty
- Protects your investment
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
32
Recommended Breaker
50 Amp Breaker
Engine
HP
7.5
Pump
CFM
29
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
743 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
24 Inches
Product Width
34 Inches
Product Height
80 Inches
Power Type
Electric
UPC
815002013190
Product Specs
+−
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
32
Recommended Breaker
50 Amp Breaker
Engine
HP
7.5
Pump
CFM
29
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
743 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
24 Inches
Product Width
34 Inches
Product Height
80 Inches
Power Type
Electric
UPC
815002013190
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
What is the dB rating for noise output?
Dale
from Minnesota
September 26, 2019
Answer
It ranges from 59-65 decibels depending on its surroundings.
Was this answer helpful?
Yes

0
No

0
Recommended Accessories
+−

Expert Recommended Accessories
Hand Picked By Our Expert Joshua
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
By Joshua A.
Manuals
+−
+
Ask Joshua, Our Product Expert, A Question!
*Required Fields

+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

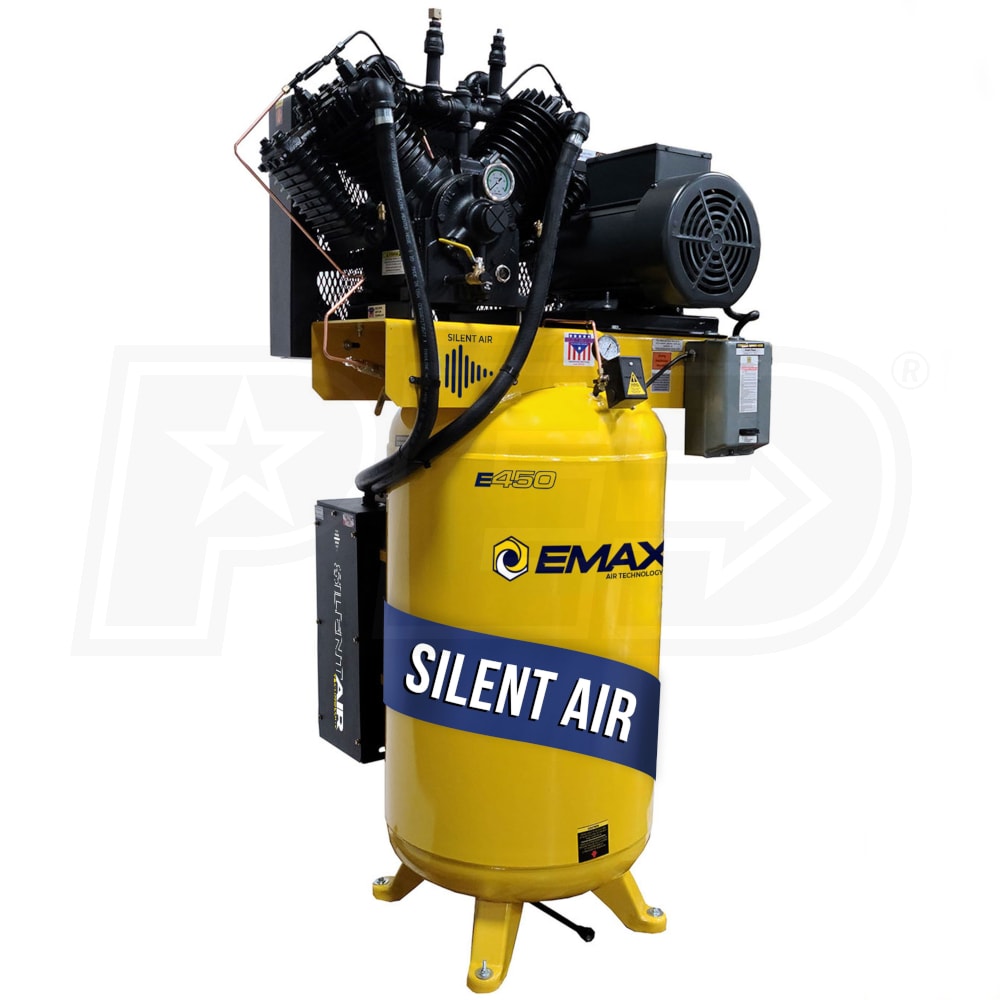

EMAX Industrial Plus Silent 7.5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)










×
