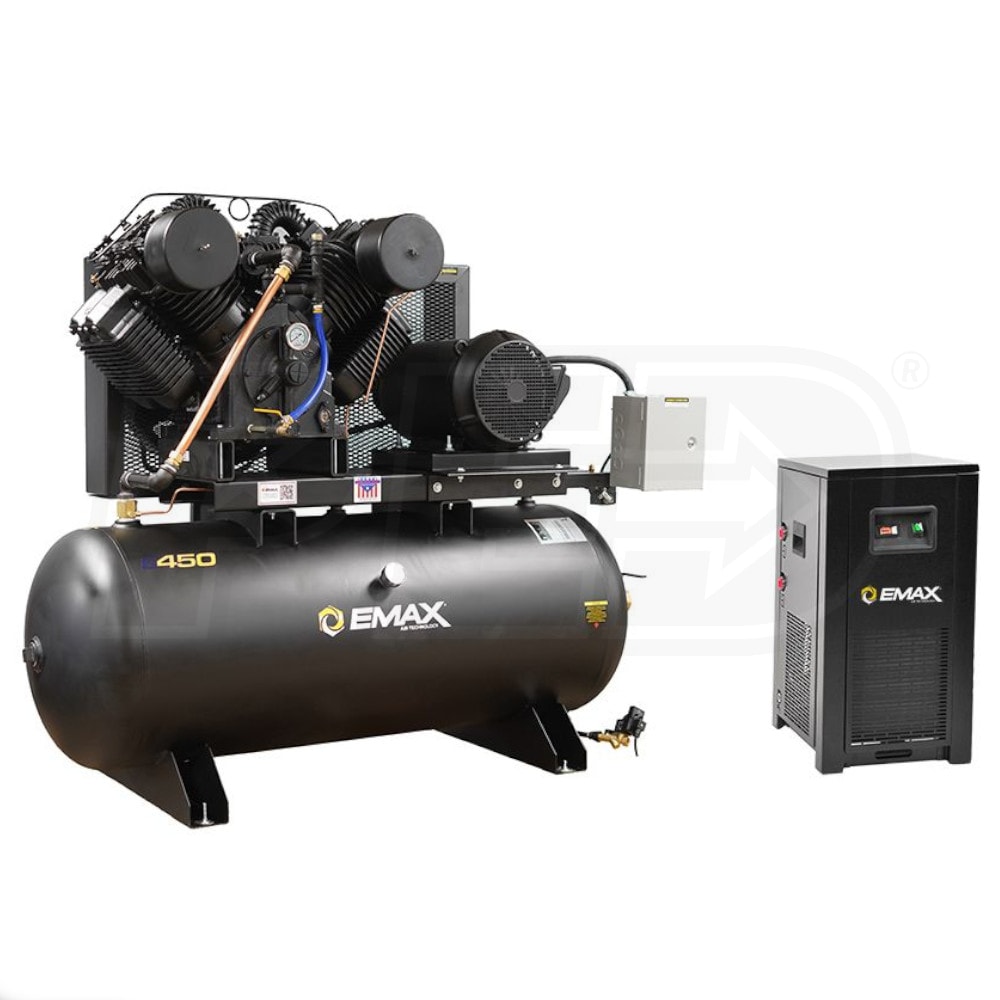

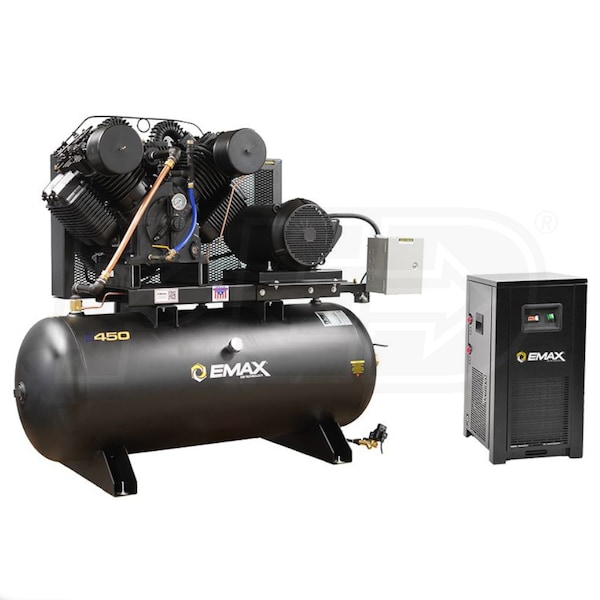

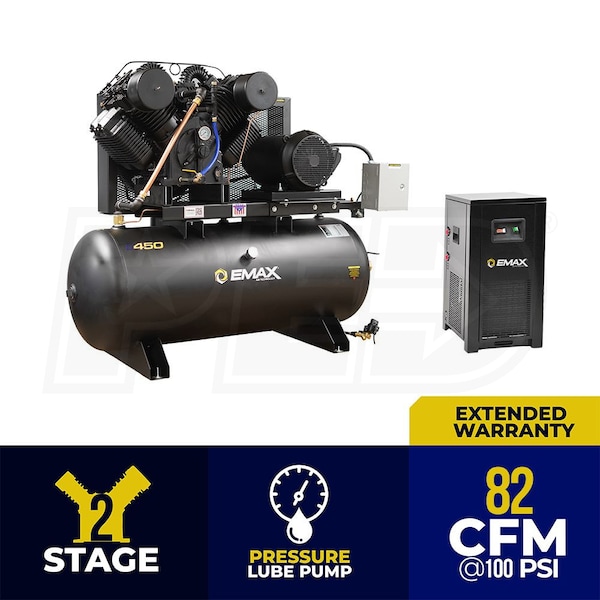

EMAX Industrial Plus 20-HP 120-Gallon Two-Stage Air Compressor w/ Dryer (230V 3-Phase)

Model:

EP20H120V3PKG-230

Write a Review
$8,738.70
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 8-12 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
EMAX Industrial Plus 20-HP 120-Gallon Two-Stage Air Compressor w/ Dryer (230V 3-Phase)
EMAX Industrial Plus 20-HP 120-Gallon Two-Stage Air Compressor w/ Dryer (230V 3-Phase)
Model: EP20H120V3PKG-230
$8,738.70
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Two Stage 3-Phase (230 Volts)

CFM

68

Tank Size

120

Air Dryer CFM

115

  • Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Piston Series Two-Stage Cast Iron Pump With Built-In Inter-Cooler & After-Cooler
  • Dual control design allows for automatic or continuous run up to 68 CFM
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • EMAX EDRCF1150115 115 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
  • Air is filtered of all solid particles 0.01 micron and larger
  • Energy efficient with coalescing filter built in auto drain
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability
  • Raised Mounting Platform
  • Cooler oil temperatures from 100% constant flow of cool air from the flywheel fan to top, sides, & underside of crankcase
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature, reduces moisture build up & extends pump life
  • Oil gate valve & sight gauge provide quick, clean oil changes
  • 20-HP TEFC Industrial Grade Motor
  • Low 1750 RPM design extends useful life, includes pre-wired magnetic starter
  • Belt tension adjuster for fast, easy "one turn" design
  • 120 Gallon ASME Receiver With Auto Tank Drain
  • 110V dual timer controlled drain eliminates daily maintenance
  • 5 year Limited Warranty on air compressor pump & tank
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EP20H120V3PKG-230
specs product image PID-78117
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
48
Recommended Breaker
70 Amp Breaker
Engine
HP
20
Pump
CFM
68
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Air Dryer
Air Dryer CFM
115
Max Inlet Temp. Rating
140
Max Ambient Temp. Rating
122
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
Yes
Post-Filter
Yes
Auto Drain
Yes
Overview
Weight
1636 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
74 Inches
Product Width
30 Inches
Product Height
61 Inches
Power Type
Electric
UPC
815002014111
