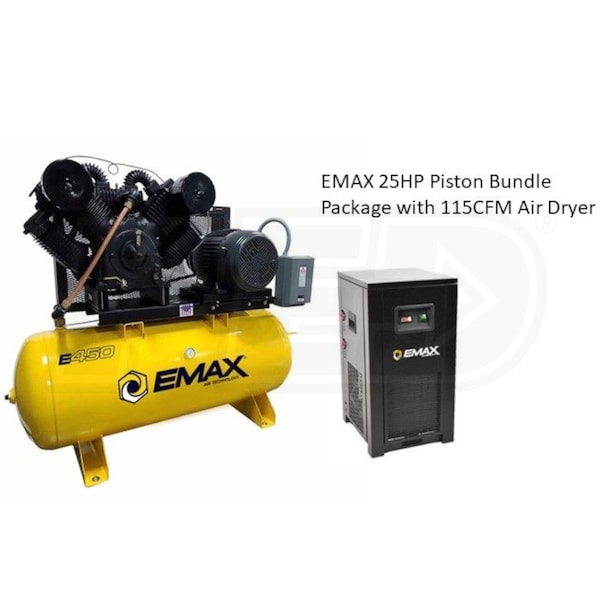

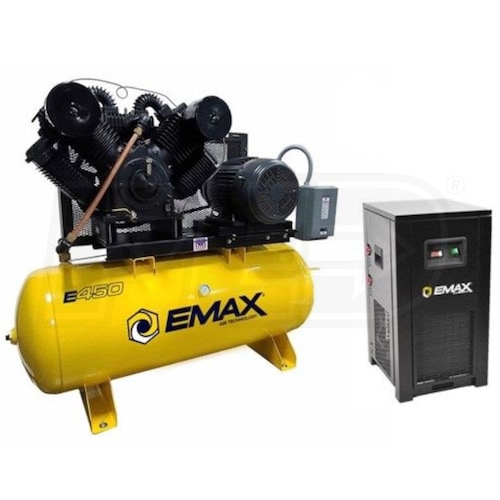

EMAX Industrial Plus 25-HP 120-Gallon Two-Stage Air Compressor w/ Dryer (230V 3-Phase)
Model: EP25H120V3PKG-230
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$9,499.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Voltage
Dryer
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
96
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Air Dryer CFM
144
Grade
Commercial
CFM
96 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Air Dryer CFM
144
Features
Features
  • Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Piston Series Two-Stage Cast Iron Pump With Built-In Inter-Cooler & After-Cooler

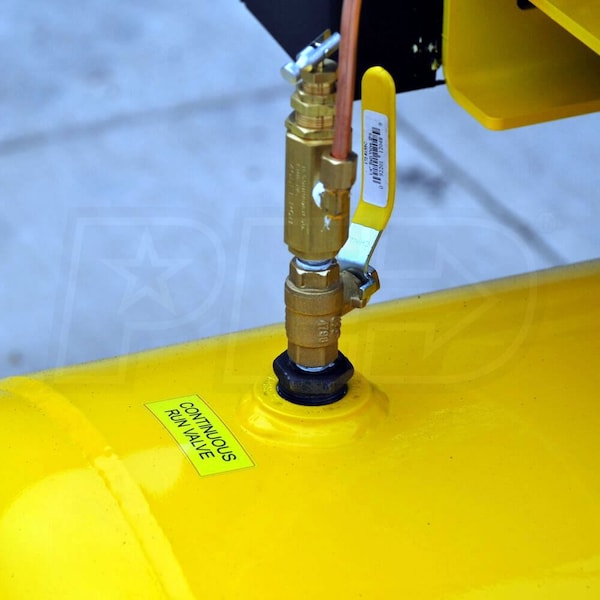

  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)

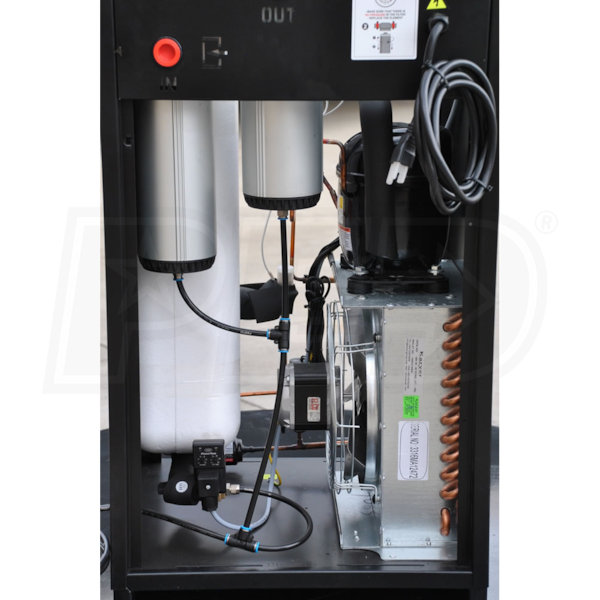

  • EMAX EDRCF1150144 144 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
  • Air is filtered of all solid particles 0.01 micron and larger
  • Energy efficient with coalescing filter built in auto drain
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability
  • Raised Mounting Platform
  • Cooler oil temperatures from 100% constant flow of cool air from the flywheel fan to top, sides, & underside of crankcase
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature, reduces moisture build up & extends pump life
  • Oil gate valve & sight gauge provide quick, clean oil changes
  • 25-HP TEFC Industrial Grade Motor
  • Low 1750 RPM design extends useful life, includes pre-wired magnetic starter

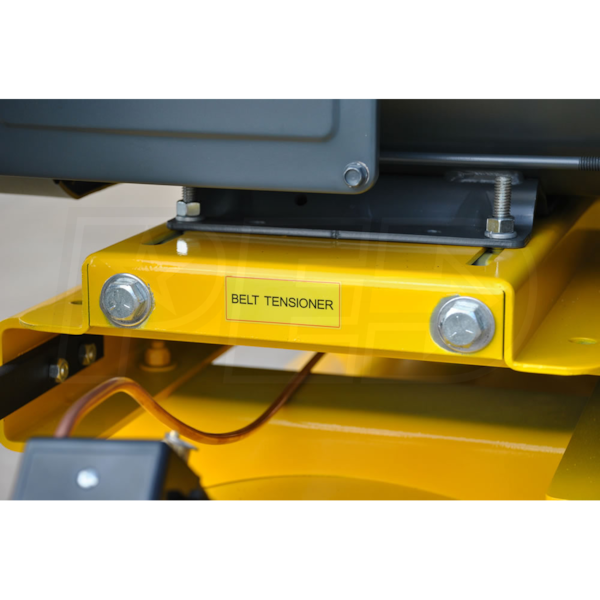

  • Belt tension adjuster for fast, easy "one turn" design
  • 120 Gallon ASME Receiver With Auto Tank Drain
  • 110V dual timer controlled drain eliminates daily maintenance
  • 5 year Limited Warranty on air compressor pump & tank
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
60
Recommended Breaker
80 Amp Breaker
Engine
HP
25
Pump
CFM
96
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Air Dryer
Air Dryer CFM
144
Max Inlet Temp. Rating
140
Max Ambient Temp. Rating
122
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
Yes
Post-Filter
Yes
Auto Drain
Yes
Overview
