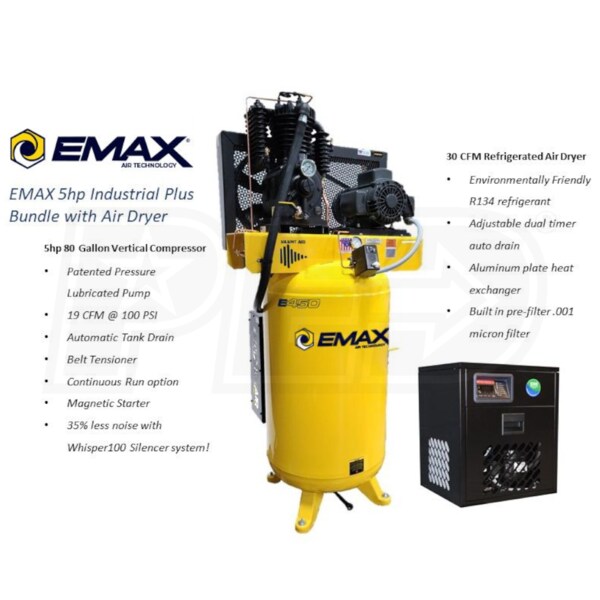

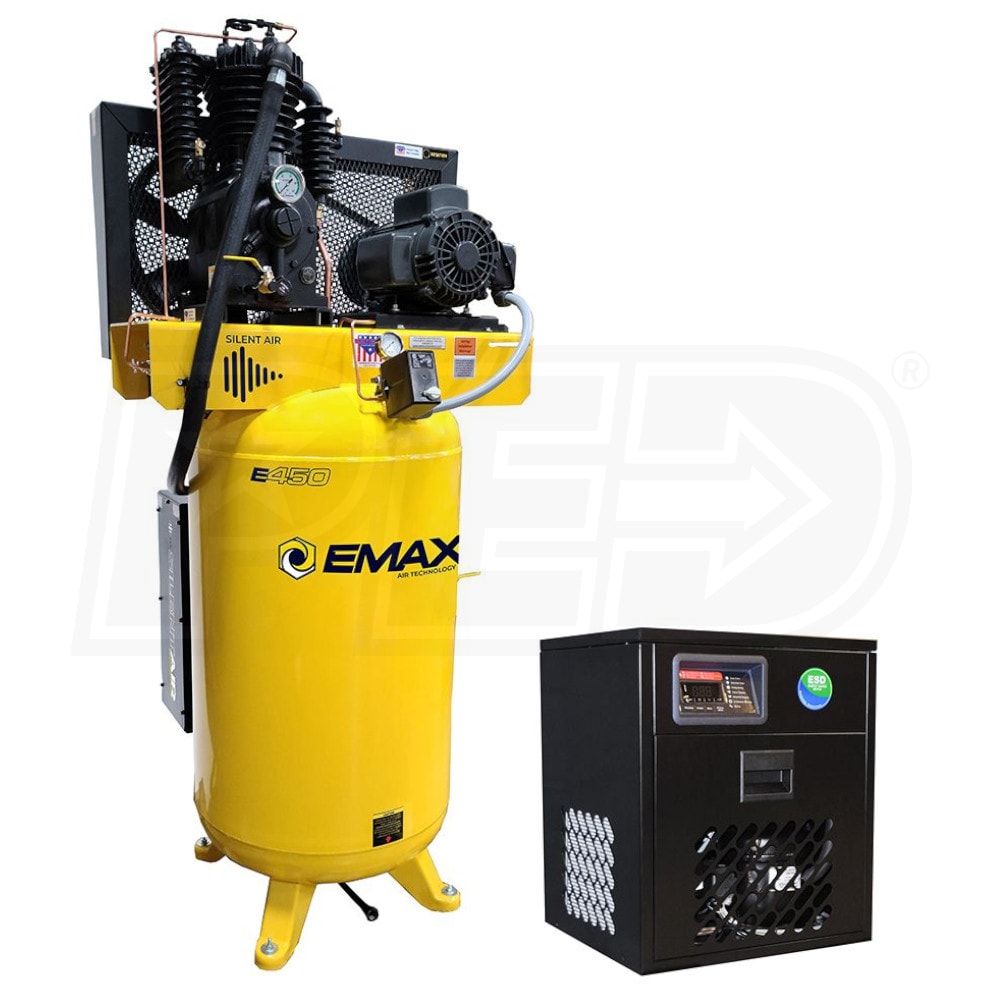

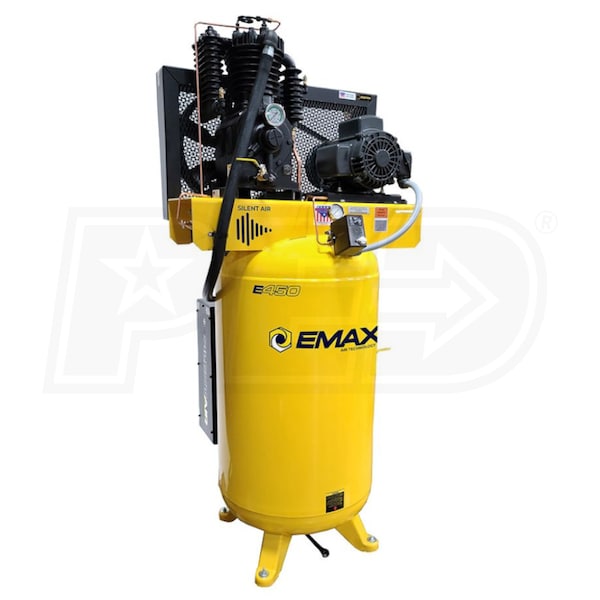

EMAX Silent Industrial Plus 5-HP 80-Gallon Two-Stage Air Compressor w/ Dryer (208V 3-Phase)

EMAX Silent Industrial Plus 5-HP 80-Gallon Two-Stage Air Compressor w/ Dryer (208V 3-Phase)
Model: ESP05V080I3PK-208
$3,200.00
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$50.00
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
CFM
19
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Air Dryer CFM
30
Grade
Commercial
CFM
19 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Air Dryer CFM
30
Features
Features

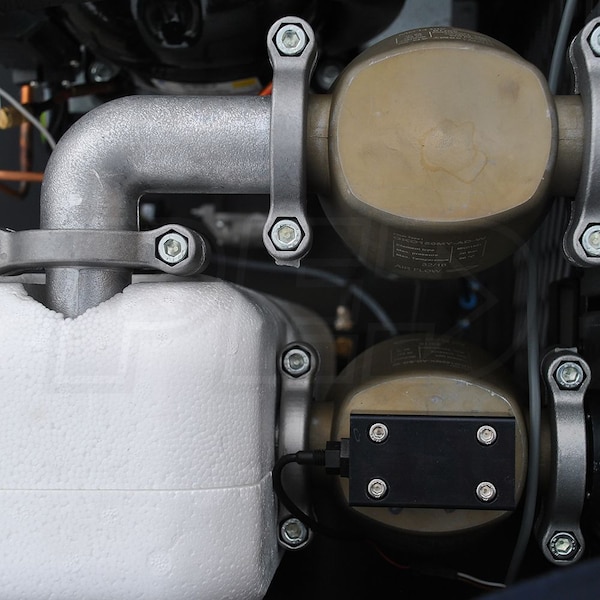

  • Piston Series Two-Stage Solid Cast Iron Pump With Built-In Inter-Cooler & After-Cooler
  • Designed for up to 50,000 hours of commercial or industrial

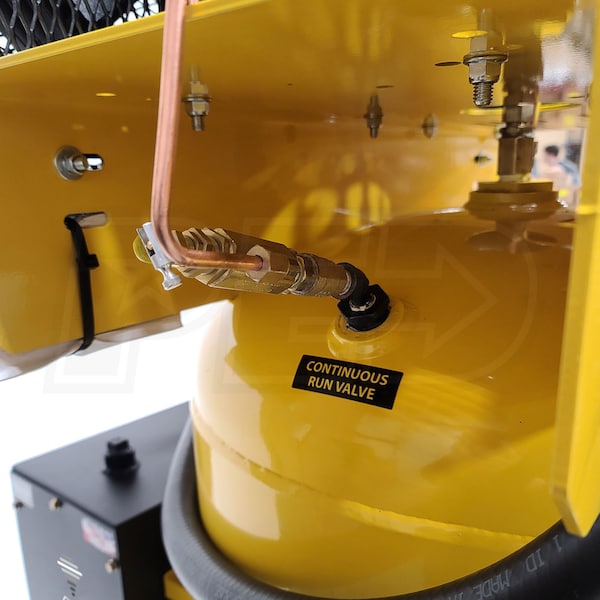

  • Dual control design allows for automatic or continuous run for all applications
  • 80 Gallon ASME Receiver With Auto Tank Drain

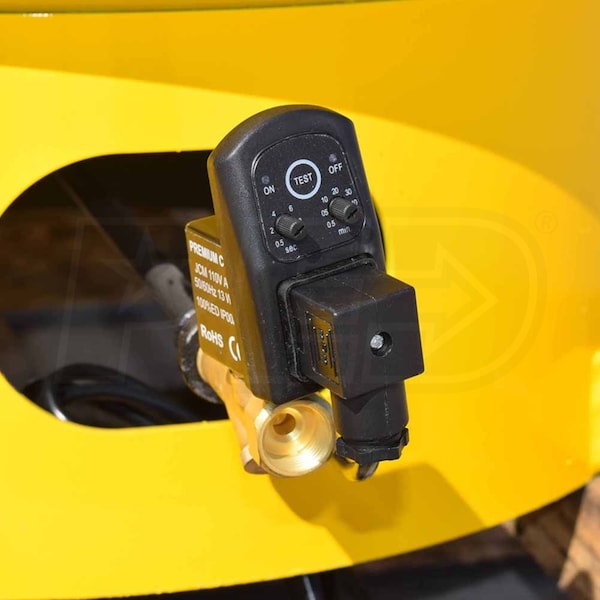

  • 110V automatic tank drain with dual timers eliminates daily maintenance

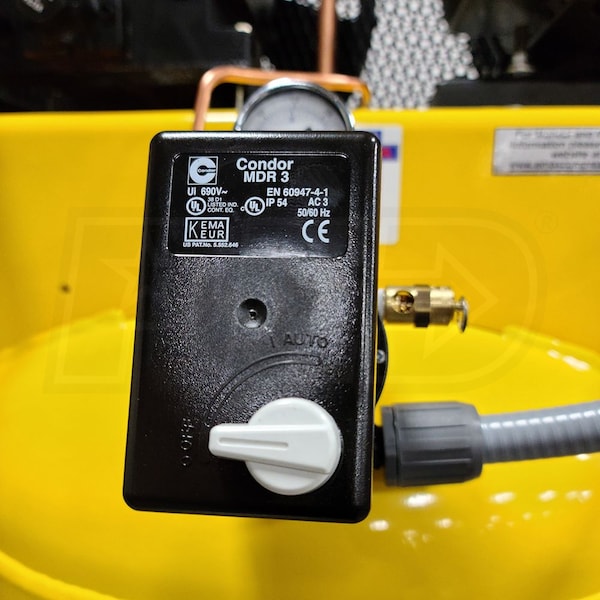

  • Prewired condor starter and pressure switch built into one

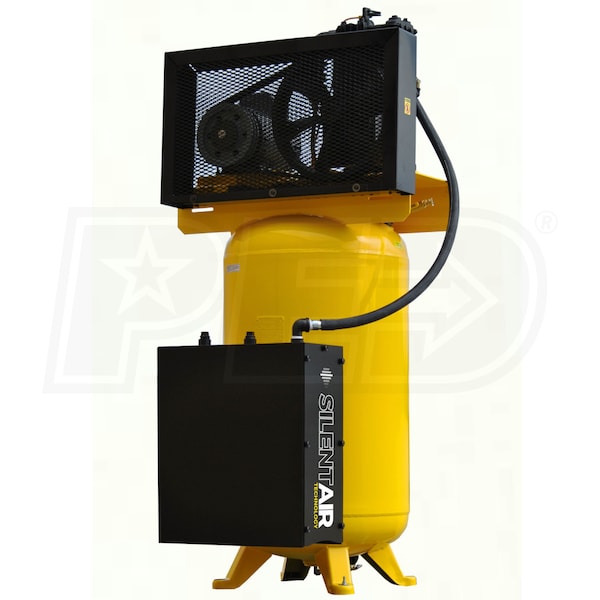

  • Silent Piston Air Industrial System
  • Piston intake noise is trapped and dissipated within the silencer structure
  • Piston intake noise is trapped and dissipated within the silencer structure
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability
  • Energy efficient 30CFM Refrigerated Air Dryer With Inner Cooler
  • Air is filtered of all solid particles 0.01 micron and larger
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
  • Industrial Grade Electric Motor
  • Low 1750 RPM design extends useful life; motors run much cooler than 3450 RPM
  • Low harmonic distortion, provides much higher torque in cold weather starting and require less electricity under start
  • Belt tension adjuster for fast, easy "one turn" design
  • Raised Mounting Platform
  • Cooler oil temperatures from 100% constant flow of cool air from the flywheel fan to top, sides, & underside of crankcase
  • Pulls the heat off the pistons and connecting rods
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature, reduces moisture build up & extends pump life
  • 5 Year Limited Warranty On Air Compressor Pump & Tank
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
14
Recommended Breaker
20 Amp Breaker
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
Yes
Air Dryer
Air Dryer CFM
30
Max Inlet Rating
140
Max Ambient Rating
122
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Auto Drain
Yes
Overview
Certification
UL,CSA, ASME
Weight
620 Pounds
Product Length
42 Inches
Product Width
34 Inches
Product Height
75 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002014296
Grade
Commercial
Style
CFM
19
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Air Dryer CFM
30
Grade
Commercial
CFM
19 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Air Dryer CFM
30
Features
Features
  • Piston Series Two-Stage Solid Cast Iron Pump With Built-In Inter-Cooler & After-Cooler
  • Designed for up to 50,000 hours of commercial or industrial
  • Dual control design allows for automatic or continuous run for all applications
  • 80 Gallon ASME Receiver With Auto Tank Drain
  • 110V automatic tank drain with dual timers eliminates daily maintenance
  • Prewired condor starter and pressure switch built into one
  • Silent Piston Air Industrial System
  • Piston intake noise is trapped and dissipated within the silencer structure
  • Piston intake noise is trapped and dissipated within the silencer structure
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability
  • Energy efficient 30CFM Refrigerated Air Dryer With Inner Cooler
  • Air is filtered of all solid particles 0.01 micron and larger
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
  • Industrial Grade Electric Motor
  • Low 1750 RPM design extends useful life; motors run much cooler than 3450 RPM
  • Low harmonic distortion, provides much higher torque in cold weather starting and require less electricity under start
  • Belt tension adjuster for fast, easy "one turn" design
  • Raised Mounting Platform
  • Cooler oil temperatures from 100% constant flow of cool air from the flywheel fan to top, sides, & underside of crankcase
  • Pulls the heat off the pistons and connecting rods
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature, reduces moisture build up & extends pump life
  • 5 Year Limited Warranty On Air Compressor Pump & Tank
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
14
Recommended Breaker
20 Amp Breaker
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
Yes
Air Dryer
Air Dryer CFM
30
Max Inlet Rating
140
Max Ambient Rating
122
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Auto Drain
Yes
Overview
Certification
UL,CSA, ASME
Weight
620 Pounds
Product Length
42 Inches
Product Width
34 Inches
Product Height
75 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002014296
Product Specs
+
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
14
Recommended Breaker
20 Amp Breaker
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
Yes
Air Dryer
Air Dryer CFM
30
Max Inlet Rating
140
Max Ambient Rating
122
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Auto Drain
Yes
Overview
Certification
UL,CSA, ASME
Weight
620 Pounds
Product Length
42 Inches
Product Width
34 Inches
Product Height
75 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002014296
