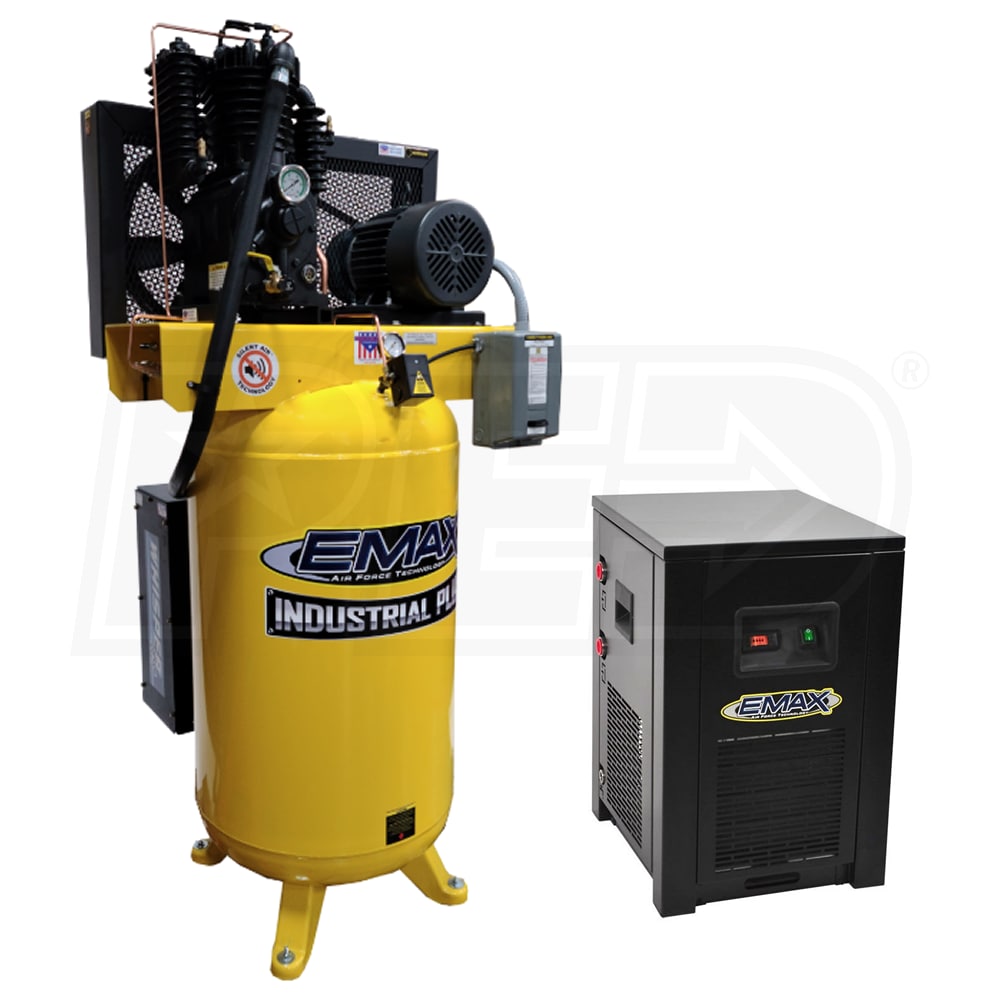

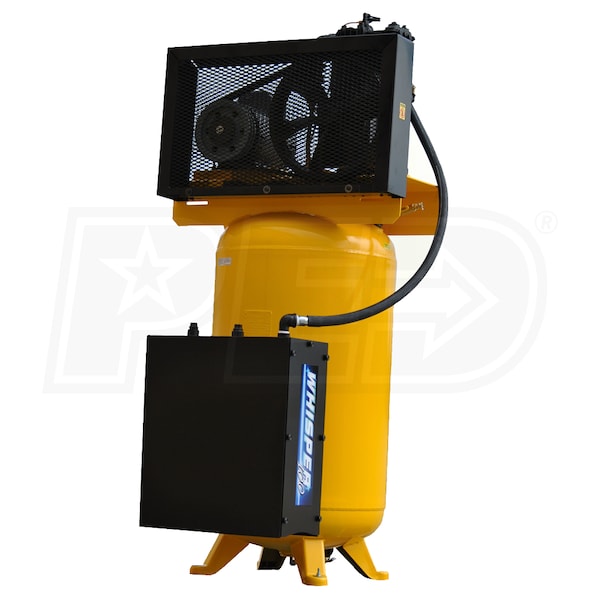

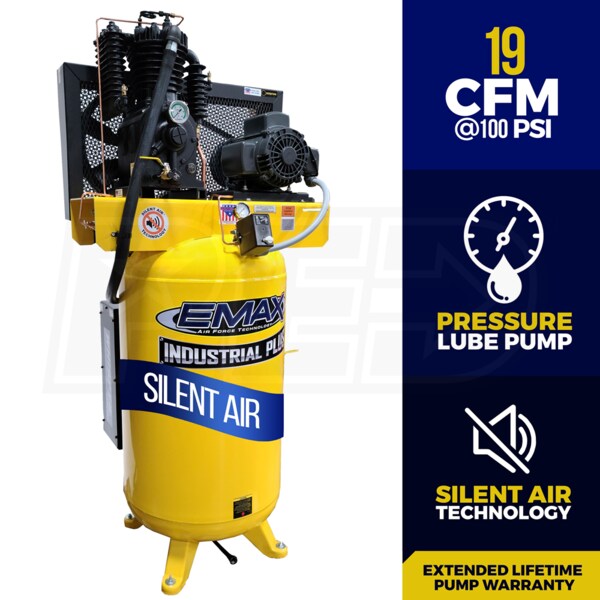

EMAX Industrial Plus Silent 5-HP 80-Gallon Two-Stage Air Compressor w/ Dryer (460V 3-Phase)

Model:

ESP05V080I3PK-460

Write a Review
$4,096.43
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
EMAX Industrial Plus Silent  5-HP 80-Gallon Two-Stage Air Compressor w/ Dryer (460V 3-Phase)
EMAX Industrial Plus Silent 5-HP 80-Gallon Two-Stage Air Compressor w/ Dryer (460V 3-Phase)
Model: ESP05V080I3PK-460
$4,096.43
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Two Stage 3-Phase (460 Volts)

CFM

19

Tank Size

80

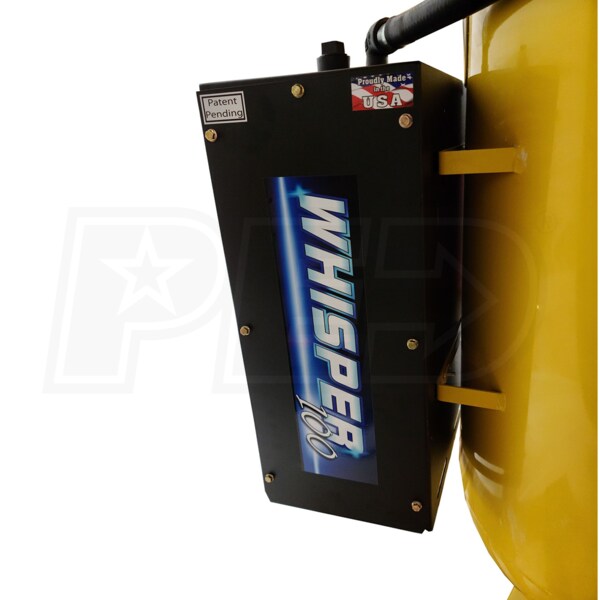

  • Silent Piston Air Industrial System
  • Reduces dBA readings by up to 25%
  • Piston intake noise is trapped and dissipated within the silencer structure

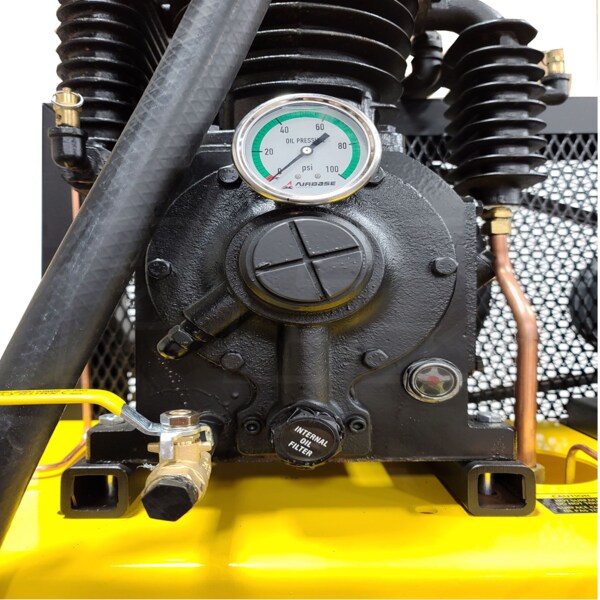

  • Pressure Lubricated Cast Iron Pump w/ Built-In Inter-Cooler & After-Cooler
  • Designed for up to 50,000 hours of commercial or industrial
  • Dual control design allows for automatic or continuous run for all applications
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • Air Stream Technology provides 35% lower operating temperature, reduces moisture build up & extends pump life
  • Ram-Tek - Solid Steel, Heavy Gauge Rods
  • All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability
  • 80 Gallon ASME Receiver With Auto Tank Drain
  • 110V automatic tank drain with dual timers eliminates daily maintenance

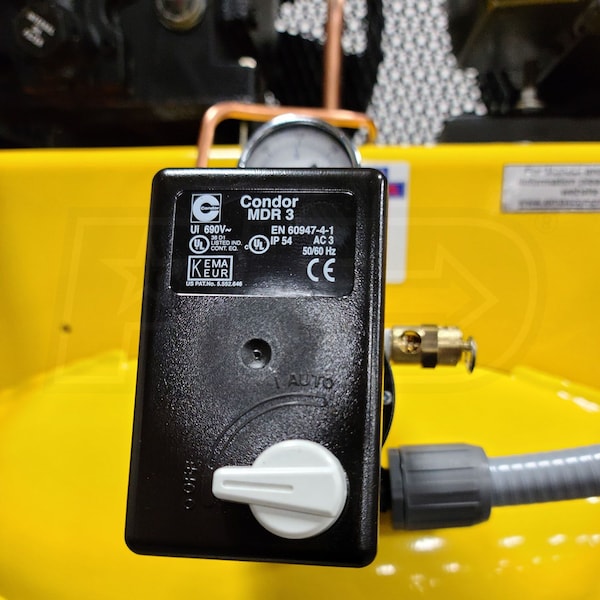

  • Prewired condor starter and pressure switch built into one
  • Industrial Grade Electric Motor
  • Low 1750 RPM design extends useful life; motors run much cooler than 3450 RPM
  • Low harmonic distortion, provides much higher torque in cold weather starting and require less electricity under start
  • Belt tension adjuster for fast, easy "one turn" design
  • EMAX EDRCF1150030 30 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
  • Air is filtered of all solid particles 0.01 micron and larger
  • Energy efficient with coalescing filter built in auto drain
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools
  • Raised Mounting Platform
  • Cooler oil temperatures from 100% constant flow of cool air from the flywheel fan to top, sides, & underside of crankcase
  • Pulls the heat off the pistons and connecting rods
  • 5 Year Limited Warranty On Air Compressor Tank & Lifetime Limited Warranty On Pressure Lubricated Pump
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ESP05V080I3PK-460
specs product image PID-79679
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
6
Recommended Breaker
15 Amp Breaker
Engine
HP
5
Pump
CFM
19
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
620 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
42 Inches
Product Width
34 Inches
Product Height
75 Inches
Power Type
Electric
UPC
815002014296
