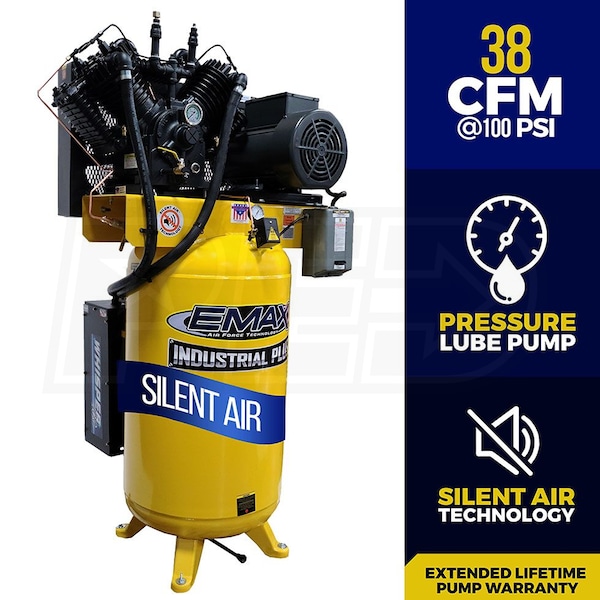

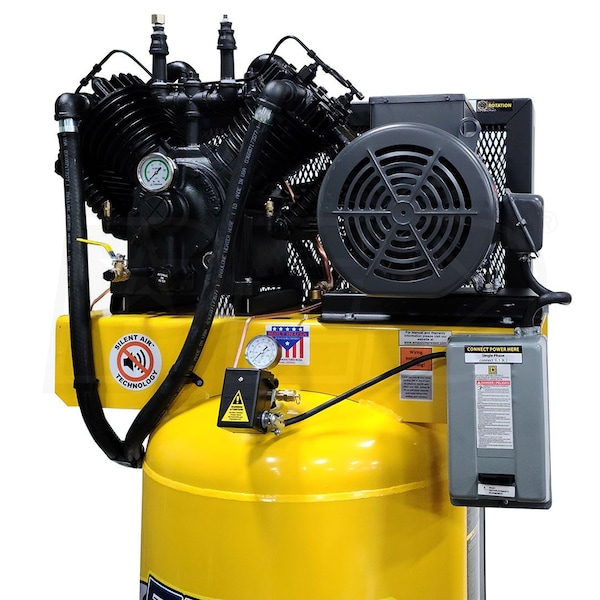

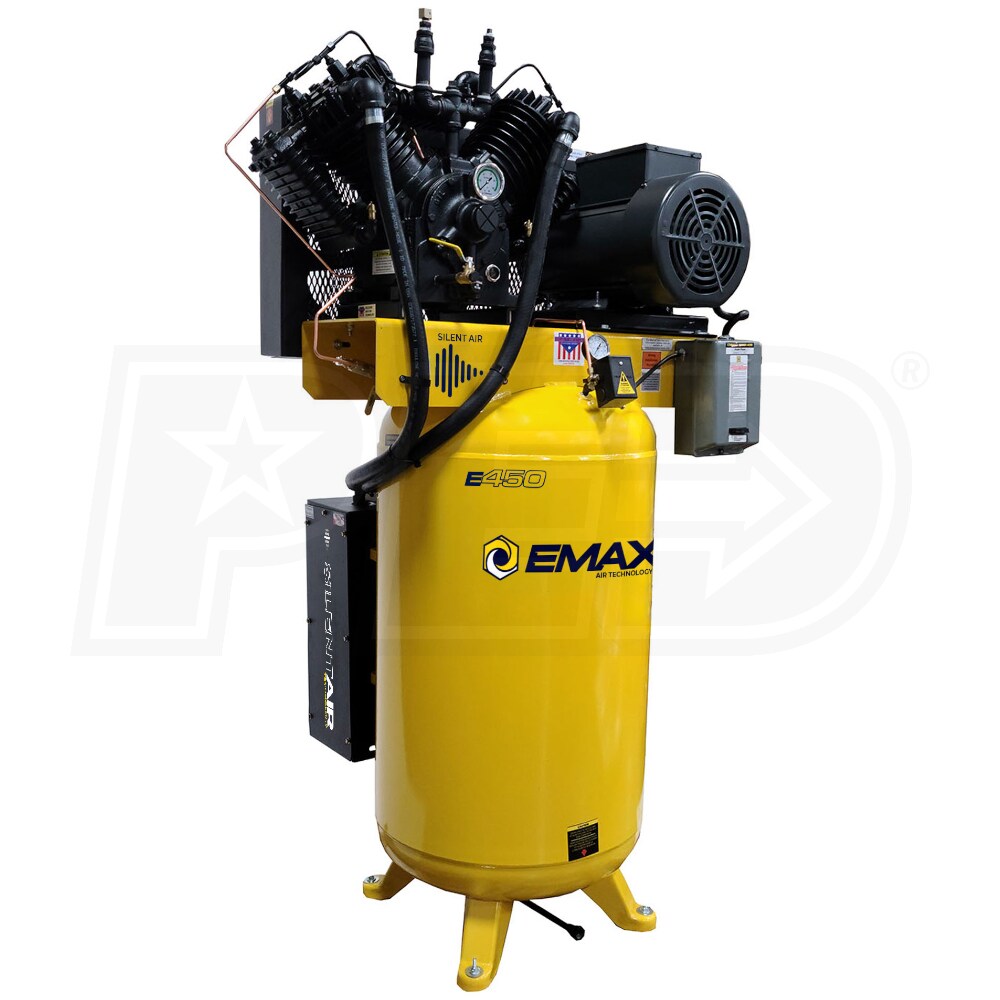

EMAX Industrial Plus Silent 10-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase)
Model: ESP10V080V3-208
+
Share This Product
-
Product Description
-
7Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
38
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
38 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features

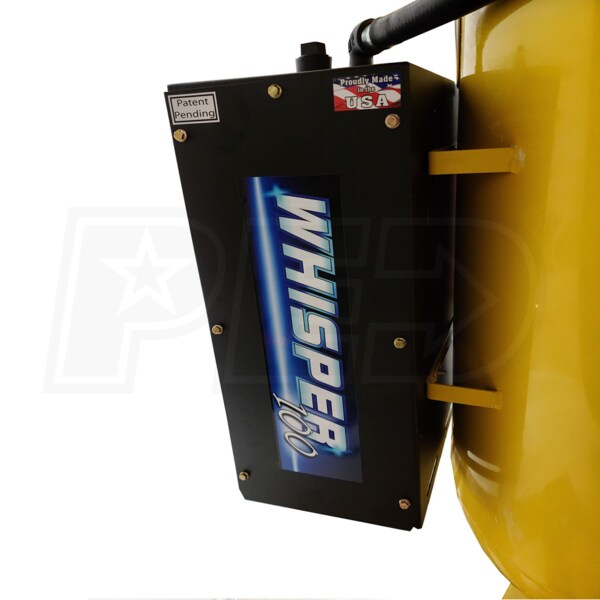

- Whisper 100 Series Silencer
- Reduces dBA readings by up to 25%
- Provides 5-layer filtration ideal for heavy airborne particle work environments
- Two-Stage Pressure Lubricated Pump Cast Iron Pump

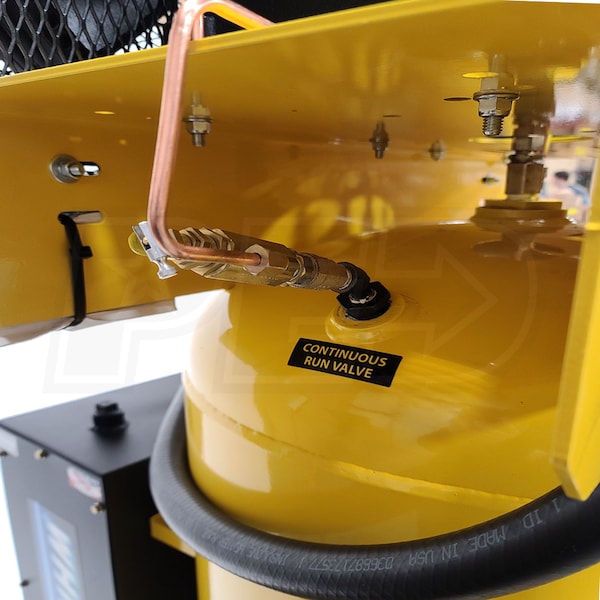

- Dual control design allows for automatic or continuous run; raised mounting platform helps cool pump
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
- Solid Steel, Heavy Gauge Rods
- Built for maximum performance & durability

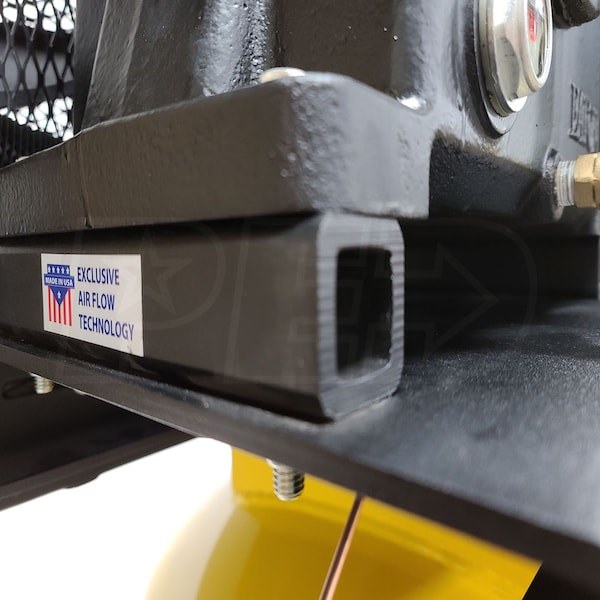

- Air Stream Technology
- Provides 35% lower operating temperature; coolest in the industry
- Reduces moisture build up & extends pump life
- 10-HP TEFC Industrial Grade Motor
- Low RPM design extends useful life; magnetic starter included
- Condor pressure switch for reliable starts; OSHA approved metal belt guard

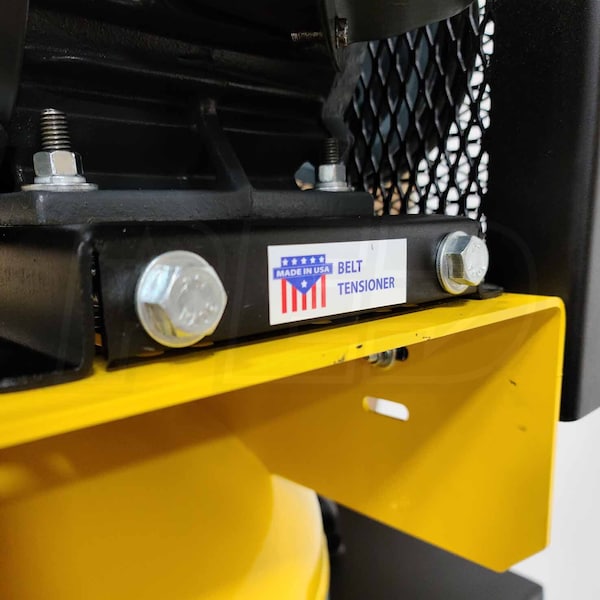

- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life; just loosen 4 bolts slightly, adjust tensioner bolt, then retighten 4 bolts
- Dual Timer Automatic Tank Drain
- 110V timer controlled, eliminates daily maintenance; reduces moisture in your air lines & protects the tank
- 5 Year Factory Warranty
- Protects your investment; see terms in Owner's Manual PDF under Specs tab
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Engine
HP
10
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
986 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
50 Inches
Product Width
35 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002013251
Grade

Style

CFM
38
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
38 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
- Whisper 100 Series Silencer
- Reduces dBA readings by up to 25%
- Provides 5-layer filtration ideal for heavy airborne particle work environments
- Two-Stage Pressure Lubricated Pump Cast Iron Pump
- Dual control design allows for automatic or continuous run; raised mounting platform helps cool pump
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
- Solid Steel, Heavy Gauge Rods
- Built for maximum performance & durability
- Air Stream Technology
- Provides 35% lower operating temperature; coolest in the industry
- Reduces moisture build up & extends pump life
- 10-HP TEFC Industrial Grade Motor
- Low RPM design extends useful life; magnetic starter included
- Condor pressure switch for reliable starts; OSHA approved metal belt guard
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life; just loosen 4 bolts slightly, adjust tensioner bolt, then retighten 4 bolts
- Dual Timer Automatic Tank Drain
- 110V timer controlled, eliminates daily maintenance; reduces moisture in your air lines & protects the tank
- 5 Year Factory Warranty
- Protects your investment; see terms in Owner's Manual PDF under Specs tab
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Engine
HP
10
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
986 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
50 Inches
Product Width
35 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002013251
Product Specs
+−
Specifications
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Engine
HP
10
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
986 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
50 Inches
Product Width
35 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002013251
