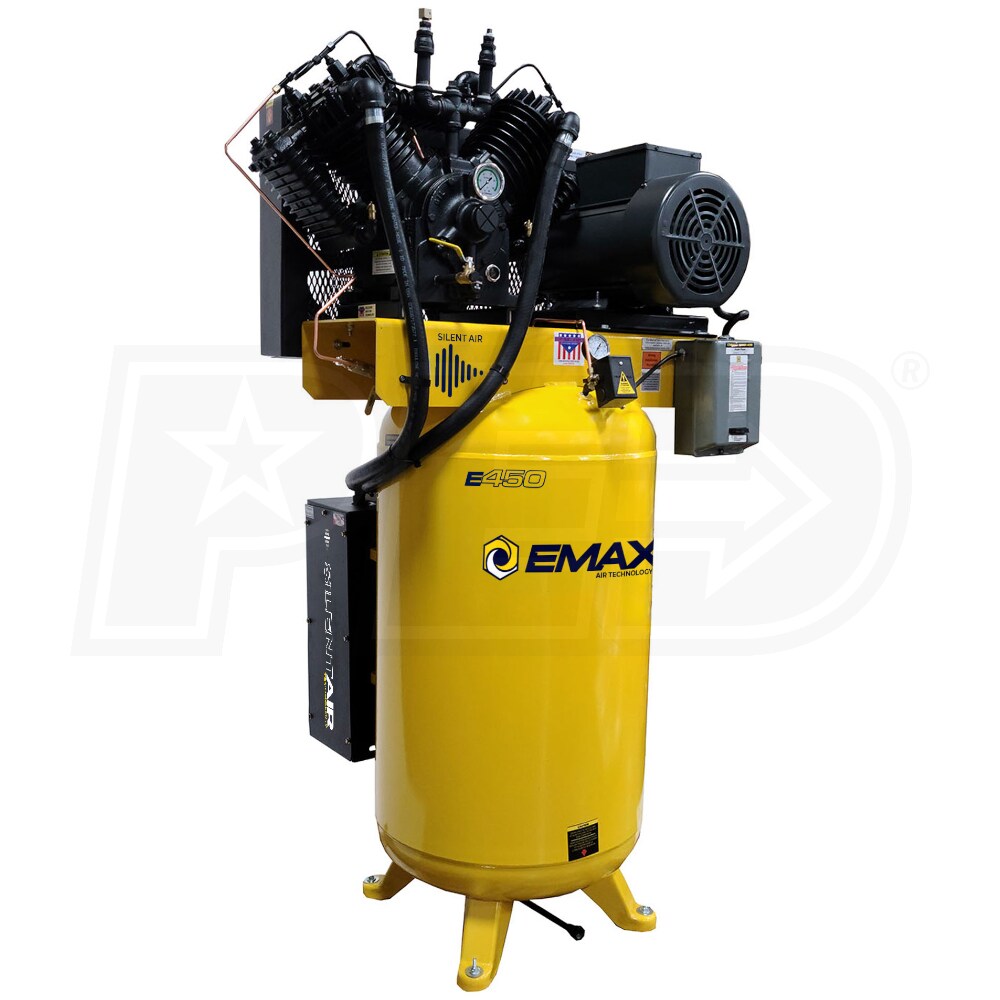

EMAX Industrial Plus Silent 10-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Model:
815002013251
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
3-Phase
CFM
38
Tank Size
80
- Whisper 100 Series Silencer
- Reduces dBA readings by up to 25%
- Provides 5-layer filtration ideal for heavy airborne particle work environments
- Two-Stage Pressure Lubricated Pump Cast Iron Pump
- 38 CFM @ 100 PSI; 34 CFM @ 175 PSI (MAX)
- Dual control design allows for automatic or continuous run; raised mounting platform helps cool pump
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
- Solid Steel, Heavy Gauge Rods
- Built for maximum performance & durability
- Air Stream Technology
- Provides 35% lower operating temperature; coolest in the industry
- Reduces moisture build up & extends pump life
- 10-HP TEFC Industrial Grade Motor
- Low RPM design extends useful life; magnetic starter included
- Condor pressure switch for reliable starts; OSHA approved metal belt guard
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life; just loosen 4 bolts slightly, adjust tensioner bolt, then retighten 4 bolts
- Dual Timer Automatic Tank Drain
- 110V timer controlled, eliminates daily maintenance; reduces moisture in your air lines & protects the tank
- 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty
- Please See Warranty Sheet For More Information
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
815002013251
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
24
Recommended Breaker
40 Amp Breaker
Engine
HP
10
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
986 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
50 Inches
Product Width
35 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002013251
Additional Model Numbers
ESP10V080V3-230, 815002013251
