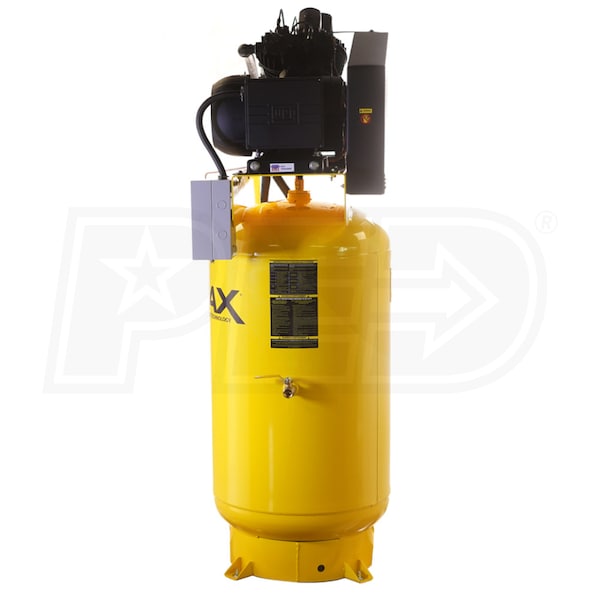

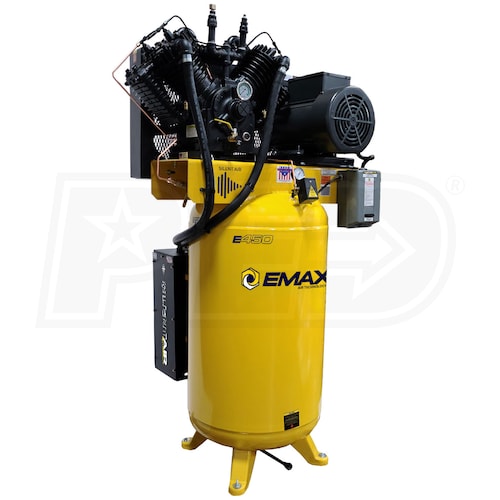

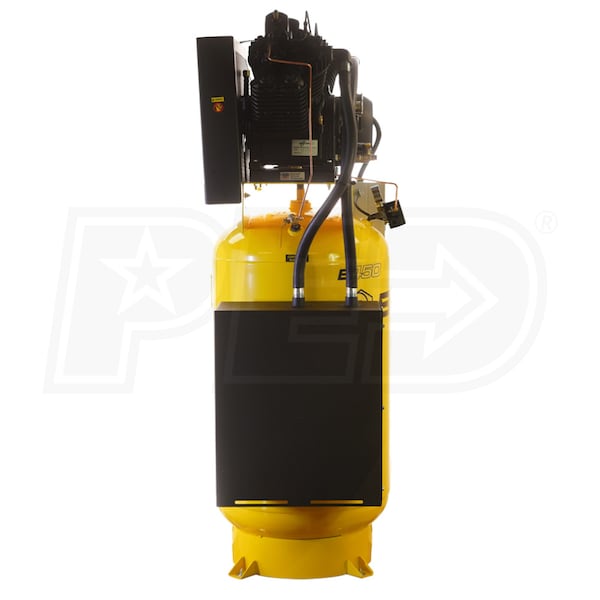

EMAX Industrial Plus Silent 10-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
Model: 815002013251
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
38
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
38 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features

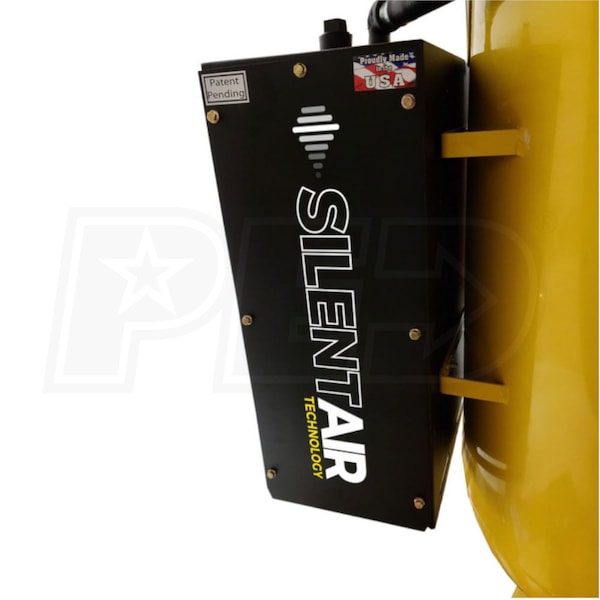

- Whisper 100 Series Silencer
- Reduces dBA readings by up to 25%
- Provides 5-layer filtration ideal for heavy airborne particle work environments

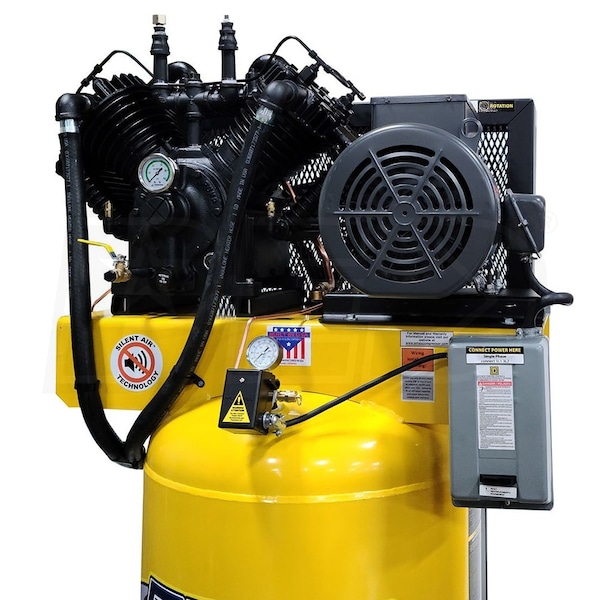

- Two-Stage Pressure Lubricated Pump Cast Iron Pump
- Dual control design allows for automatic or continuous run; raised mounting platform helps cool pump
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
- Solid Steel, Heavy Gauge Rods
- Built for maximum performance & durability
- Air Stream Technology
- Provides 35% lower operating temperature; coolest in the industry
- Reduces moisture build up & extends pump life
- 10-HP TEFC Industrial Grade Motor
- Low RPM design extends useful life; magnetic starter included

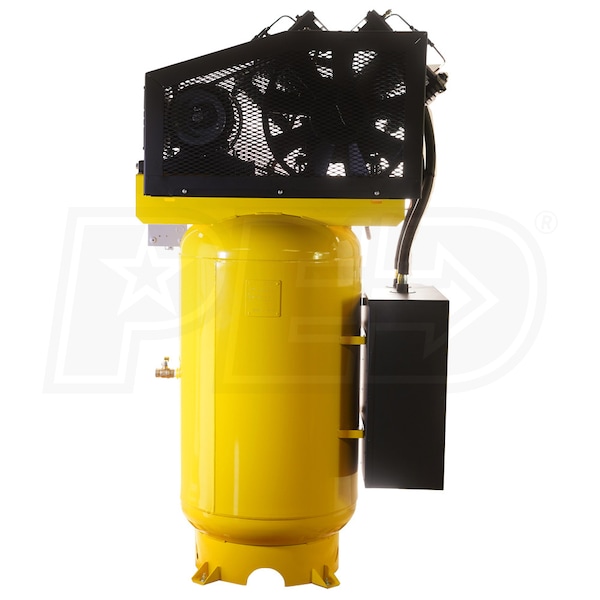

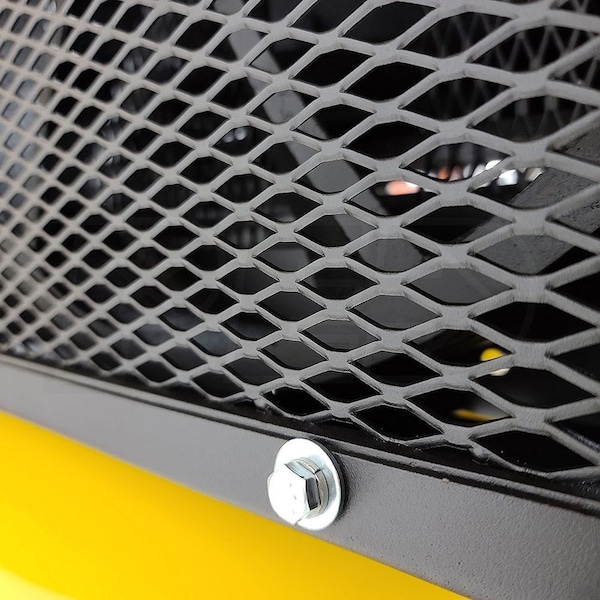

- Condor pressure switch for reliable starts; OSHA approved metal belt guard
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life; just loosen 4 bolts slightly, adjust tensioner bolt, then retighten 4 bolts
- Dual Timer Automatic Tank Drain
- 110V timer controlled, eliminates daily maintenance; reduces moisture in your air lines & protects the tank
- 5 Year Factory Warranty
- Protects your investment
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
12
Recommended Breaker
20 Amp Breaker
Engine
HP
10
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
986 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
50 Inches
Product Width
35 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002013251
Additional Model Numbers
ESP10V080V3-460, 815002013251
Grade
Style
CFM
38
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
38 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
- Whisper 100 Series Silencer
- Reduces dBA readings by up to 25%
- Provides 5-layer filtration ideal for heavy airborne particle work environments
- Two-Stage Pressure Lubricated Pump Cast Iron Pump
- Dual control design allows for automatic or continuous run; raised mounting platform helps cool pump
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
- Solid Steel, Heavy Gauge Rods
- Built for maximum performance & durability
- Air Stream Technology
- Provides 35% lower operating temperature; coolest in the industry
- Reduces moisture build up & extends pump life
- 10-HP TEFC Industrial Grade Motor
- Low RPM design extends useful life; magnetic starter included
- Condor pressure switch for reliable starts; OSHA approved metal belt guard
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life; just loosen 4 bolts slightly, adjust tensioner bolt, then retighten 4 bolts
- Dual Timer Automatic Tank Drain
- 110V timer controlled, eliminates daily maintenance; reduces moisture in your air lines & protects the tank
- 5 Year Factory Warranty
- Protects your investment
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
12
Recommended Breaker
20 Amp Breaker
Engine
HP
10
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
986 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
50 Inches
Product Width
35 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002013251
Additional Model Numbers
ESP10V080V3-460, 815002013251
Product Specs
+−
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
12
Recommended Breaker
20 Amp Breaker
Engine
HP
10
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
986 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
50 Inches
Product Width
35 Inches
Product Height
78 Inches
Power Type
Electric
UPC
815002013251
Additional Model Numbers
ESP10V080V3-460, 815002013251
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
If I change the oil every other year, would this affect the warranty? Also, does this unit have an hour meter on it?
James H.
from Illinois
April 17, 2019
Answer
It could affect the warranty. This unit does not have an hour meter on it, but EMAX has a maintenance schedule in their manual on how often oil needs to be changed along with the air filters. Please scroll to page 7 in the product manual, which will go over the maintenance schedule.
