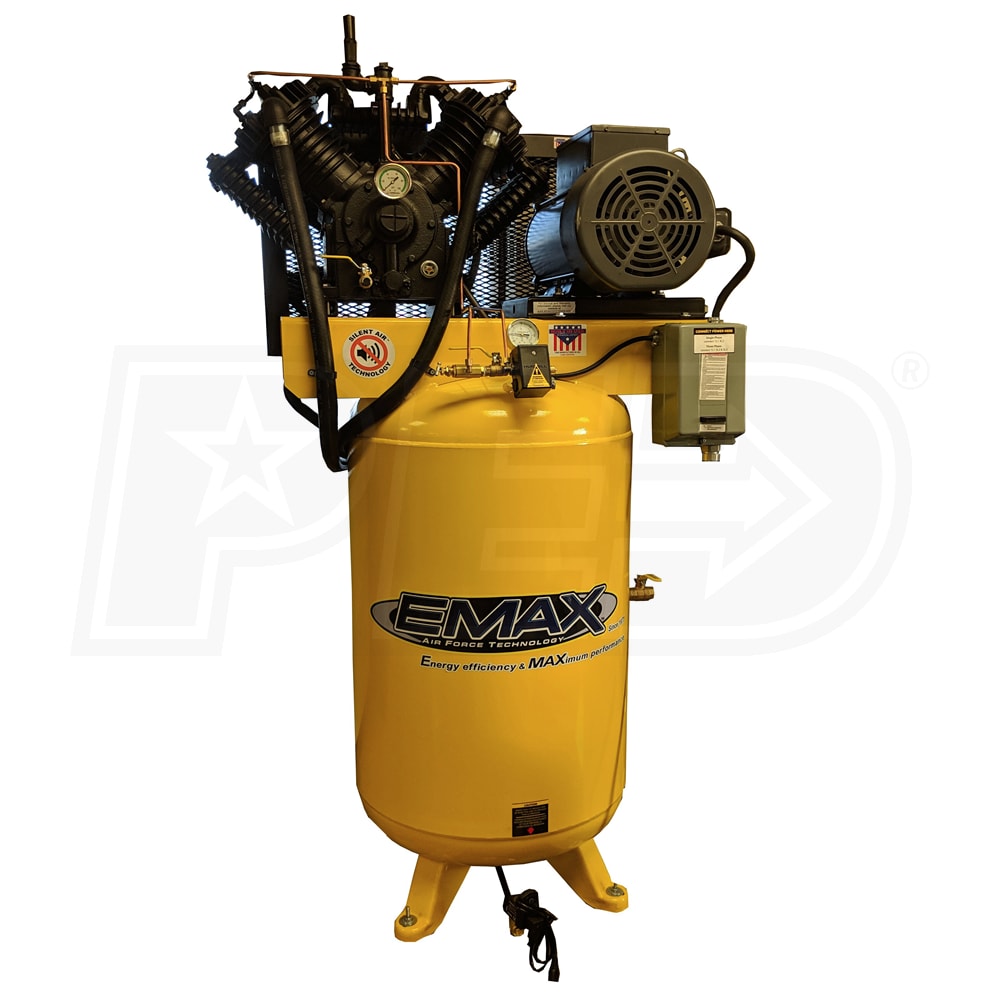

EMAX Industrial Plus Silent Air 10-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor (208/230V 1-Phase)

EMAX Industrial Plus Silent Air 10-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor (208/230V 1-Phase)
Our Price
Compare Prices
Shipping Info
Model: ESR10V080V1
(Based on expert analysis, manufacturer ratings and customer reviews)
$4,564.99

Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Voltage
Add-Ons
+$50.00
Factory-Direct
Ships in 4-6 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 1-Phase
CFM
38
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
38 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • 10-HP Industrial-Duty TEFC Grade Motor
  • Low 1750 RPM design extends useful life
  • Fully waterproof and protects from dust and dirt
  • Whisper 100 Series Silencer
  • Reduces dBA readings by up to 25%
  • 5-layer filtration is ideal for heavy airborne particle work environments
  • Two-Stage Pressure-Lubricated Solid Cast Iron Pump
  • Low 800 RPM produces less heat for less wear & tear
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Built-In Aftercooler & Intercooler
  • Protects from excessive heat and moisture
  • Cools down air to provide trouble-free protection against water in your system
  • Air Stream Technology
  • Reduces moisture build up & extends pump life
  • Provides 35% lower operating temperature; coolest in the industry
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life; just loosen 4 bolts slightly, adjust tensioner bolt and retighten 4 bolts
  • Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • 80-Gallon ASME Air Tank w/ Auto Tank Drain
  • Approved for all 50 states
  • 110V dual timer controlled auto drain eliminates daily maintenance and rust build up
  • 5-Year Bumper To Bumper Factory Warranty
  • Warranty is only valid for 5-yrs with annual purchase of Maintenance Kit Model: FILTERKIT008
Specifications
Engine
HP
10
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA
70
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
60 Amp Breaker
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
UL,CSA, ASME
Weight
887 Pounds
Product Length
38 Inches
Product Width
42 Inches
Product Height
76 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002017372
Grade
Commercial
Style
Two Stage 1-Phase
CFM
38
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
38 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
  • 10-HP Industrial-Duty TEFC Grade Motor
  • Low 1750 RPM design extends useful life
  • Fully waterproof and protects from dust and dirt
  • Whisper 100 Series Silencer
  • Reduces dBA readings by up to 25%
  • 5-layer filtration is ideal for heavy airborne particle work environments
  • Two-Stage Pressure-Lubricated Solid Cast Iron Pump
  • Low 800 RPM produces less heat for less wear & tear
  • Dual control design allows for automatic or continuous run
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • Built-In Aftercooler & Intercooler
  • Protects from excessive heat and moisture
  • Cools down air to provide trouble-free protection against water in your system
  • Air Stream Technology
  • Reduces moisture build up & extends pump life
  • Provides 35% lower operating temperature; coolest in the industry
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life; just loosen 4 bolts slightly, adjust tensioner bolt and retighten 4 bolts
  • Solid Steel, Heavy Gauge Rods
  • Built for maximum performance & durability
  • 80-Gallon ASME Air Tank w/ Auto Tank Drain
  • Approved for all 50 states
  • 110V dual timer controlled auto drain eliminates daily maintenance and rust build up
  • 5-Year Bumper To Bumper Factory Warranty
  • Warranty is only valid for 5-yrs with annual purchase of Maintenance Kit Model: FILTERKIT008
Specifications
Engine
HP
10
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA
70
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
60 Amp Breaker
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
UL,CSA, ASME
Weight
887 Pounds
Product Length
38 Inches
Product Width
42 Inches
Product Height
76 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002017372
Product Specs
+
Specifications
Engine
HP
10
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
dBA
70
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
60 Amp Breaker
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Overview
Certification
UL,CSA, ASME
Weight
887 Pounds
Product Length
38 Inches
Product Width
42 Inches
Product Height
76 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Power Type
Electric
UPC
815002017372
