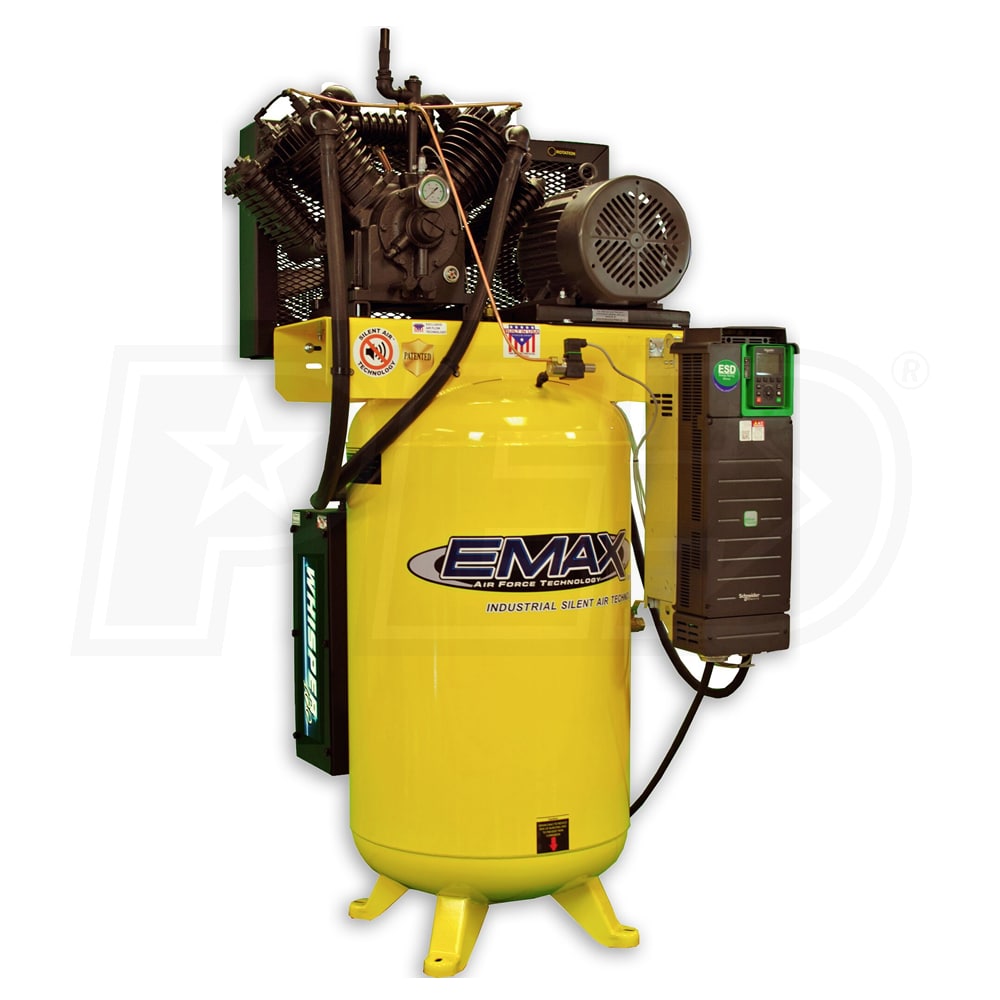

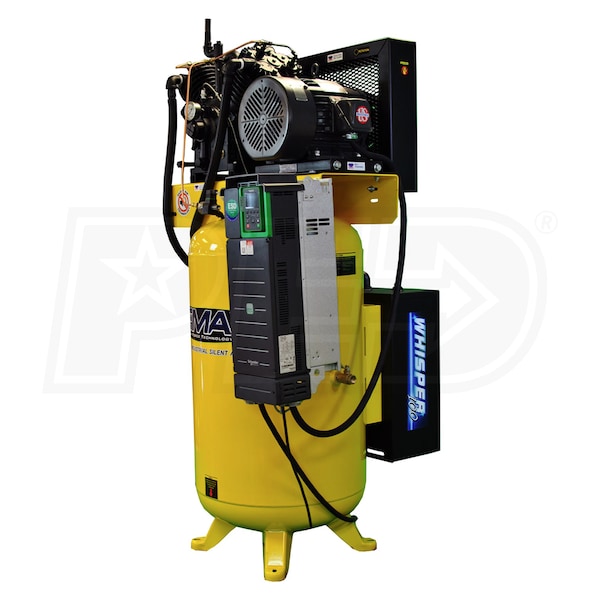

EMAX Industrial Smart Air Silent 10-HP 80-Gallon Variable Speed Two-Stage Air Compressor w/ Aftercooler (208/230V 1-Phase & 208/230 3-Phase)
Model: EVR10V080V13
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
38
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
38 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
- EMAX Smart Air, Energy Savings Air Compressor
- Saves up to $5,000.00 per year in energy savings
- 84% energy saving on start-ups & 40% during run cycles
- At .10 cents per kWh, unit will pay for itself in energy savings in 24 months (assuming a 5-day work week)
- NEW Variable Frequency Drive (VFD) Technology
- Allows user to operate in single or 3-phase power with voltages ranging from 208-230V
- Variable Speed Drive (VSD) Technology
- Air demand sensor automatically changes pump speed & air output
- Soft start saves up to 7 times starting energy; 10-yr motor warranty
- Motor gradually increases RPM, keeping startup AMP's at bare minimum

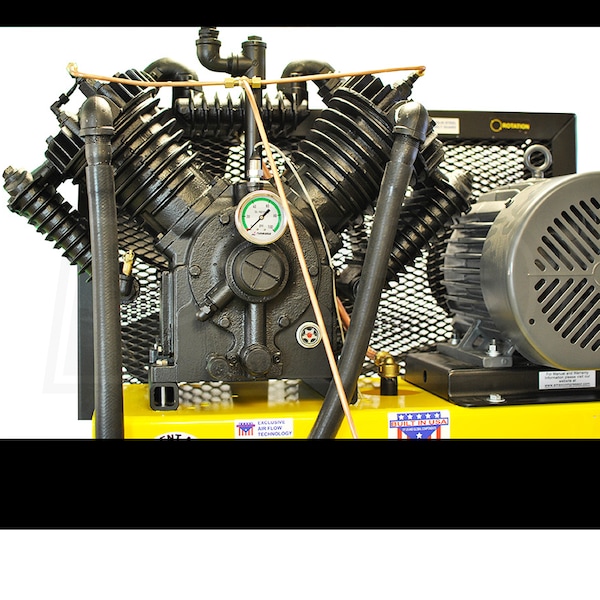

- Solid Cast-Iron Pressure Lubricated Pump
- Lifetime pump warranty w/ purchase of annual maintenance kit
- 275 to 800 variable speed pump RPM provides longer lifespan
- Whisper Series Silencer Air System
- Reduces DB(a) rating by as much as 50%
- Average DB(a) allows for installation closer to point-of-use

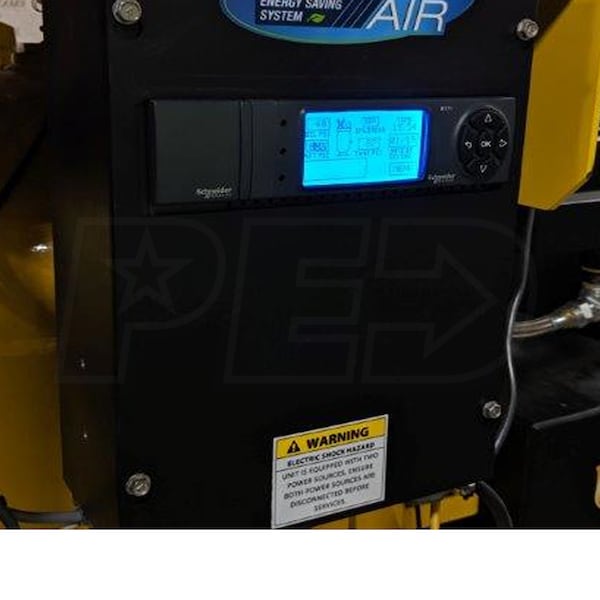

- Fully Programmable PLC Touch Screen Logic Controller
- Set date, hours of operation and PSI & RPM ranges
- Digitally displays kW energy savings while unit is running
- Programmable timed starts/stops for each day of week
- Automatic Shutdown, Displayed Maintenance Warnings & Aftercooler
- Indicates service maintenance for filters and oil
- Alarm shutdowns for low oil, motor overload, high/low voltage and loss of phase
- Aftercooler cools air before it goes into the tank to reduce moisture buildup
- Automatic Electronic Tank Drain w/Dual Timer
- Eliminates daily maintenance and reduces moisture build-up
- Protects 80-gallon ASME air tank and air lines from rust
- Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force
- FILTERKIT023 Maintenance Kit required to validate warranty coverage
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-3 Phase
dBA
63
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
38
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
810 Pounds
Certification
UL,CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
38 Inches
Product Width
42 Inches
Product Height
72 Inches
Power Type
Electric
UPC
815002016702
