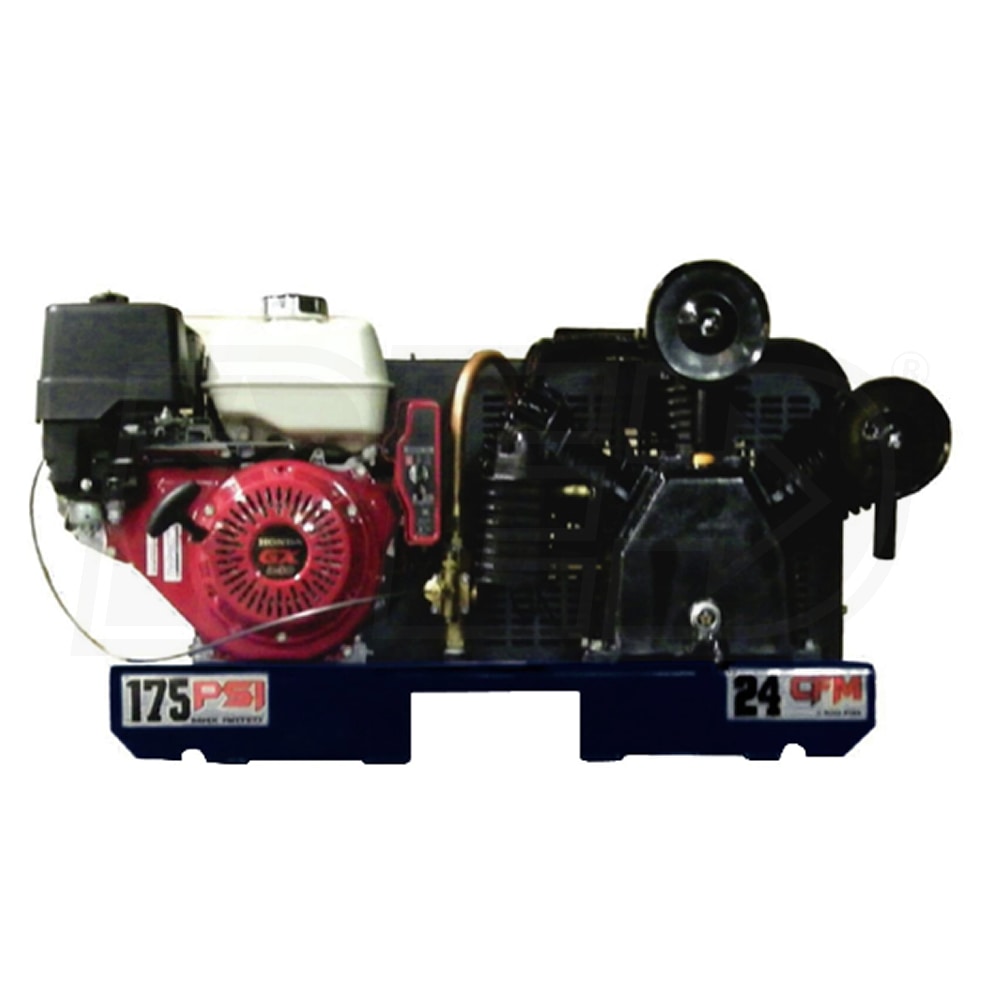

Eagle 13-HP Tankless Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Eagle 13-HP Tankless Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
CFM
24
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
24 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- Tankless 2-Stage Truck-Mount Compressor On Base Plate
- Ideal for jobsite needs and mobile service applications
- Add to your own tank or custom set-up
- Delivers high output and reliability
- Powerful 13-HP Commercial Grade GX340 Honda Engine
- Exceptionally quiet and lower fuel consumptions
- Idle control reduces cost and excessive wear & tear
- OHV design for increased efficiency and optimal power transfer
- Precision engineered components result in lower vibration
- Automatic low oil engine shutdown
- Convenient Electric Start With Recoil Back-Up
- Heavy duty recoil starter included for back up
- Ensures dependable starting every time
- Cast Iron “V” Style Pump Produces 24CFM @ 100PSI
- High efficiency reed valves for maximum performance
- Minimizes vibration, improves cooling, extends compressor life
- Large bore pistons give the ability to run at less RPM
- Designed for service trucks & contractors running multiple tools
- Rugged Removable & Individual Cast Iron Cylinders
- Built to work hard and last a long time
- Efficient heat removal from fly wheel
- Provides cooler operation & easy maintenance
- Easy Viewing Oil Sight Glass On Pump
- Drain located in front of unit for easy maintenance
- Solid Steel Base Plate
- Mounting flanges allow sturdy mounting on your choice of base
- Rust & corrosion resistant

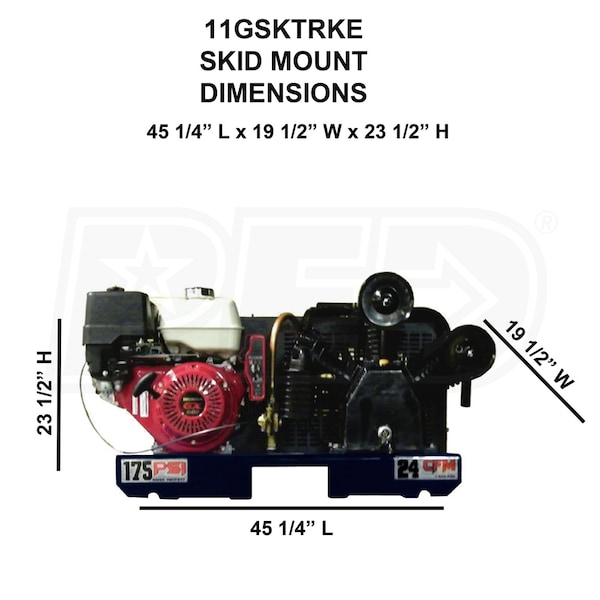

- Unit Dimensions 45-1/4" L x 19-1/2" D (Depth) x 23-1/2" H
- Metal Air Filters With "Auto Drop" Feature
- Extends compressor life, easy to maintain
- Sturdy metal belt guard for ultimate protection
- 1 Year Factory Warranty
- Warranty extends to 2 years w/ purchase of Eagle Service Kit
- Service Kit Model EA-SKG015-X
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
24
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
0 Gallons
Tank Included
No
Overview
Weight
260 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45.25 Inches
Product Width
19.5 Inches
Product Height
23.5 Inches
Power Type
Gas
UPC
20791504655
Grade
Style
Engine Brand
CFM
24
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
24 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- Tankless 2-Stage Truck-Mount Compressor On Base Plate
- Ideal for jobsite needs and mobile service applications
- Add to your own tank or custom set-up
- Delivers high output and reliability
- Powerful 13-HP Commercial Grade GX340 Honda Engine
- Exceptionally quiet and lower fuel consumptions
- Idle control reduces cost and excessive wear & tear
- OHV design for increased efficiency and optimal power transfer
- Precision engineered components result in lower vibration
- Automatic low oil engine shutdown
- Convenient Electric Start With Recoil Back-Up
- Heavy duty recoil starter included for back up
- Ensures dependable starting every time
- Cast Iron “V” Style Pump Produces 24CFM @ 100PSI
- High efficiency reed valves for maximum performance
- Minimizes vibration, improves cooling, extends compressor life
- Large bore pistons give the ability to run at less RPM
- Designed for service trucks & contractors running multiple tools
- Rugged Removable & Individual Cast Iron Cylinders
- Built to work hard and last a long time
- Efficient heat removal from fly wheel
- Provides cooler operation & easy maintenance
- Easy Viewing Oil Sight Glass On Pump
- Drain located in front of unit for easy maintenance
- Solid Steel Base Plate
- Mounting flanges allow sturdy mounting on your choice of base
- Rust & corrosion resistant
- Unit Dimensions 45-1/4" L x 19-1/2" D (Depth) x 23-1/2" H
- Metal Air Filters With "Auto Drop" Feature
- Extends compressor life, easy to maintain
- Sturdy metal belt guard for ultimate protection
- 1 Year Factory Warranty
- Warranty extends to 2 years w/ purchase of Eagle Service Kit
- Service Kit Model EA-SKG015-X
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
24
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
0 Gallons
Tank Included
No
Overview
Weight
260 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45.25 Inches
Product Width
19.5 Inches
Product Height
23.5 Inches
Power Type
Gas
UPC
20791504655
Product Specs
+−
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
24
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
0 Gallons
Tank Included
No
Overview
Weight
260 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45.25 Inches
Product Width
19.5 Inches
Product Height
23.5 Inches
Power Type
Gas
UPC
20791504655
