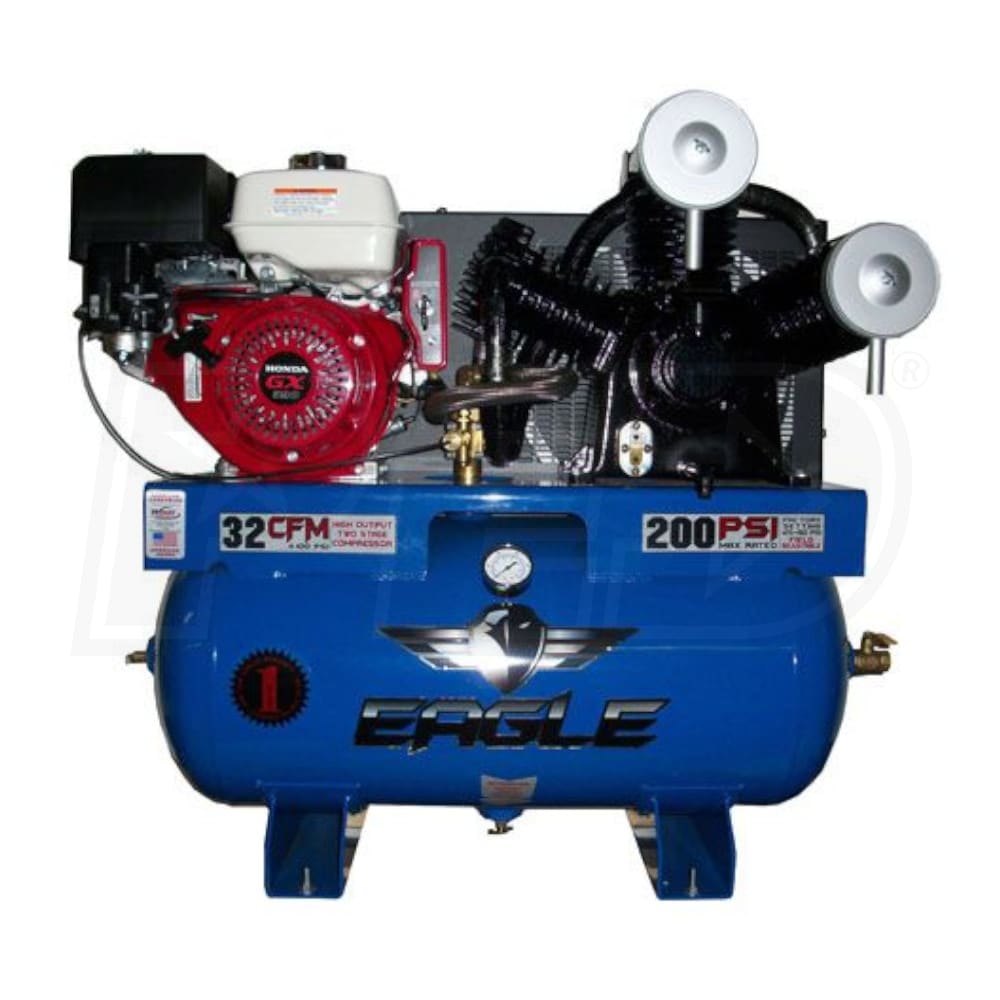

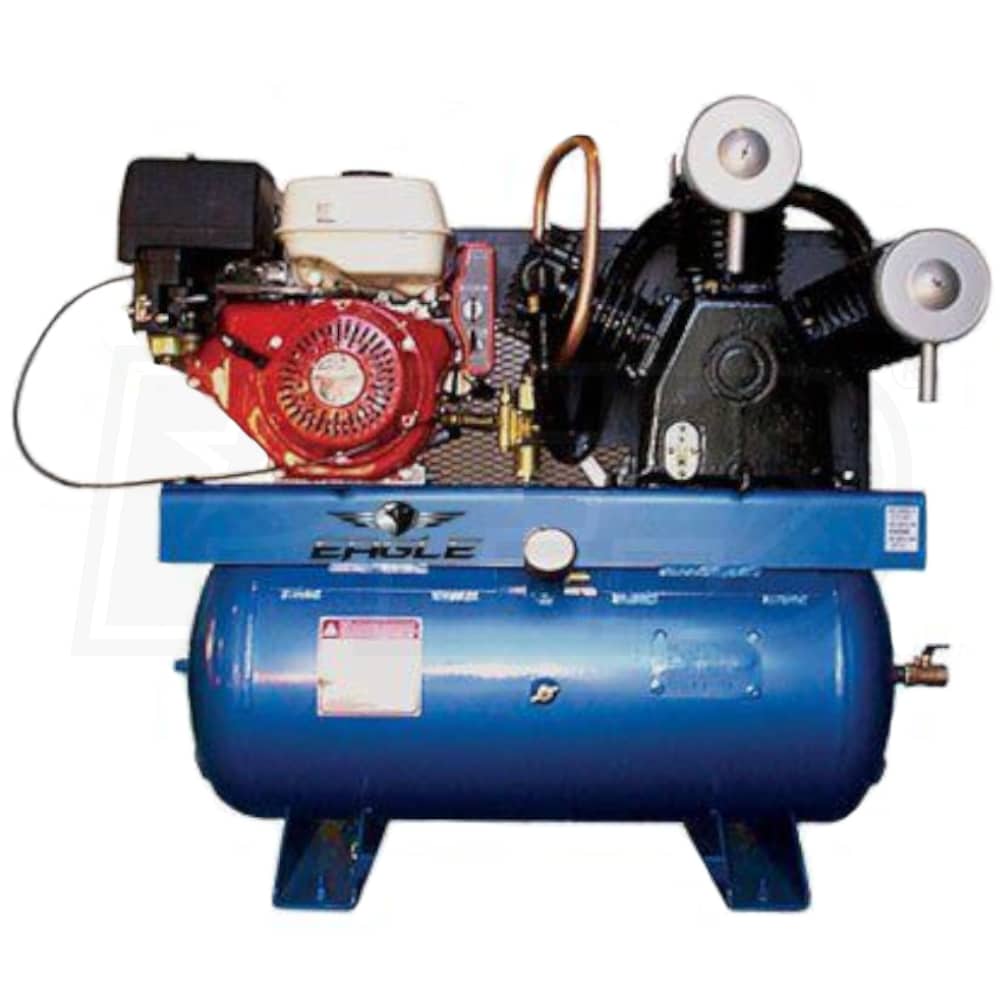

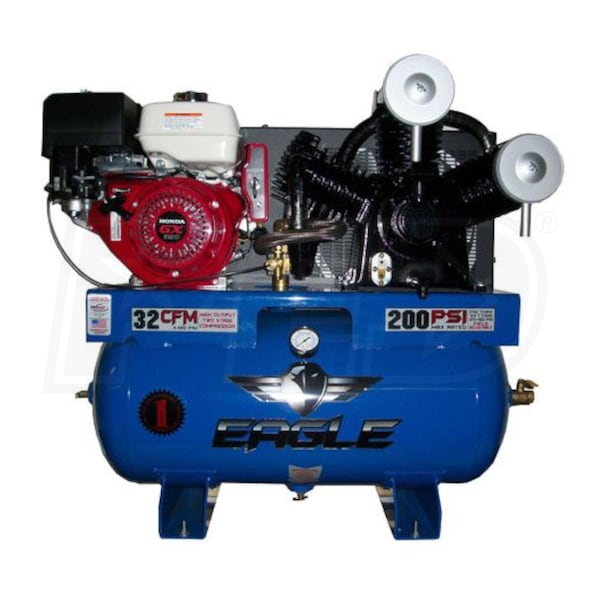

Eagle 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Eagle 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
CFM
32
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
32 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- Truck Mounted 2 Stage Unit Produces 32 CFM @ 100 PSI
- Sturdy and reliable air pressure wherever you need it
- Ideal for jobsite needs and mobile service applications
- Dependable Commercial Grade Honda GX 390 Engine
- Powerful, quiet & dependable
- Low oil shut down for maximum protection
- High efficiency reed valves for maximum performance
- Rugged Removable & Individual Cast Iron Cylinders
- Provides cooler operation & easy maintenance
- Efficient heat removal from fly wheel
- Built to work hard and last a long time
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Large bore pistons allow unit to run at less RPM’s
- Generates less heat in pump for longer life
- Engine Idle Control
- Reduces operating costs & excessive wear
- Metal Air Filters w/ Automotive Drop-In Style Elements
- Provides added protection from dust and dirt
- Extend compressor life, easy to maintain
- 30 Gallon ASME Tank
- Rated to 200 PSI for safety
- Sturdy metal belt guard protects the belt & the user
- Easy View Oil Sight Gauge
- Simplifies maintenance
- Convenient oil drain on front of unit
- 1 Year Factory Warranty
- Warranty extends to 2 year w/ purchase of Eagle Service Kit
- Service Kit Model EA-SKG022-X
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Pump
CFM
32
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
408 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
40 Inches
Power Type
Gas
UPC
777589000300
Grade
Style
Engine Brand
CFM
32
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
32 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- Truck Mounted 2 Stage Unit Produces 32 CFM @ 100 PSI
- Sturdy and reliable air pressure wherever you need it
- Ideal for jobsite needs and mobile service applications
- Dependable Commercial Grade Honda GX 390 Engine
- Powerful, quiet & dependable
- Low oil shut down for maximum protection
- High efficiency reed valves for maximum performance
- Rugged Removable & Individual Cast Iron Cylinders
- Provides cooler operation & easy maintenance
- Efficient heat removal from fly wheel
- Built to work hard and last a long time
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Large bore pistons allow unit to run at less RPM’s
- Generates less heat in pump for longer life
- Engine Idle Control
- Reduces operating costs & excessive wear
- Metal Air Filters w/ Automotive Drop-In Style Elements
- Provides added protection from dust and dirt
- Extend compressor life, easy to maintain
- 30 Gallon ASME Tank
- Rated to 200 PSI for safety
- Sturdy metal belt guard protects the belt & the user
- Easy View Oil Sight Gauge
- Simplifies maintenance
- Convenient oil drain on front of unit
- 1 Year Factory Warranty
- Warranty extends to 2 year w/ purchase of Eagle Service Kit
- Service Kit Model EA-SKG022-X
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Pump
CFM
32
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
408 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
40 Inches
Power Type
Gas
UPC
777589000300
Product Specs
+−
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Pump
CFM
32
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
408 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
40 Inches
Power Type
Gas
UPC
777589000300
