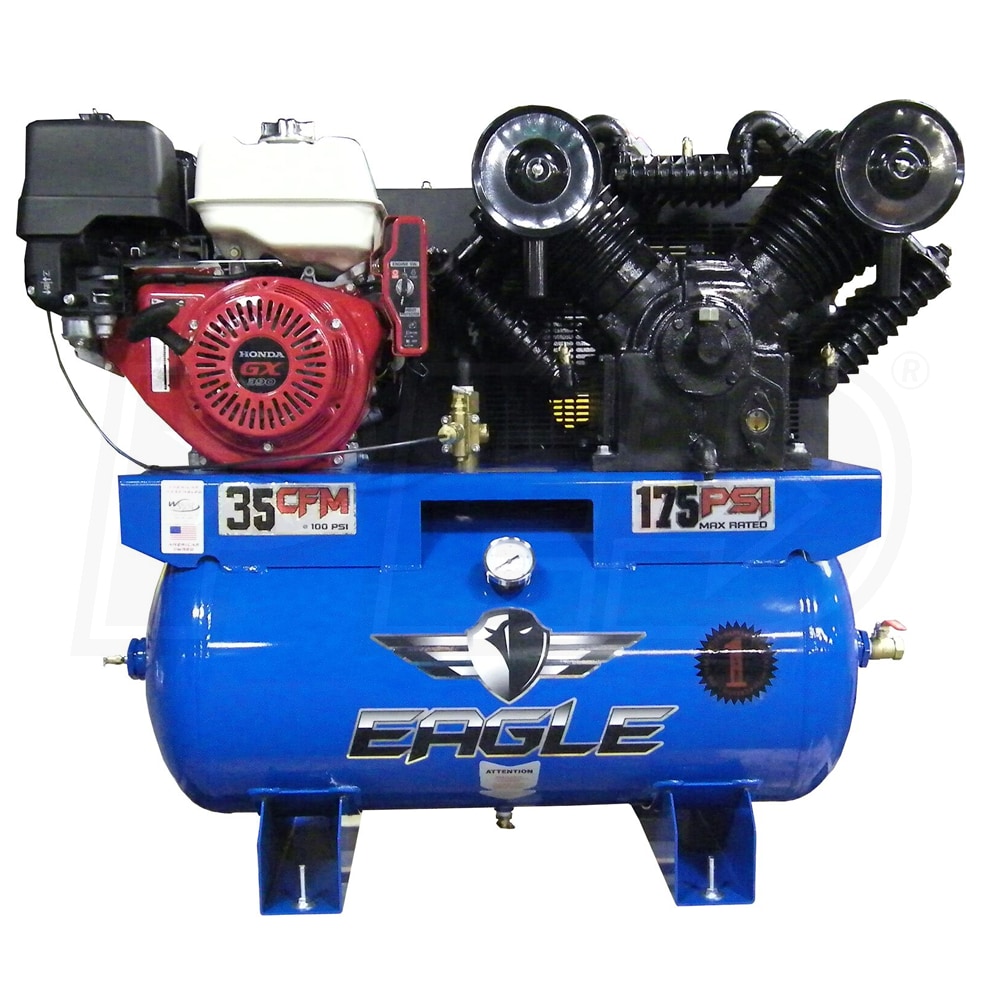

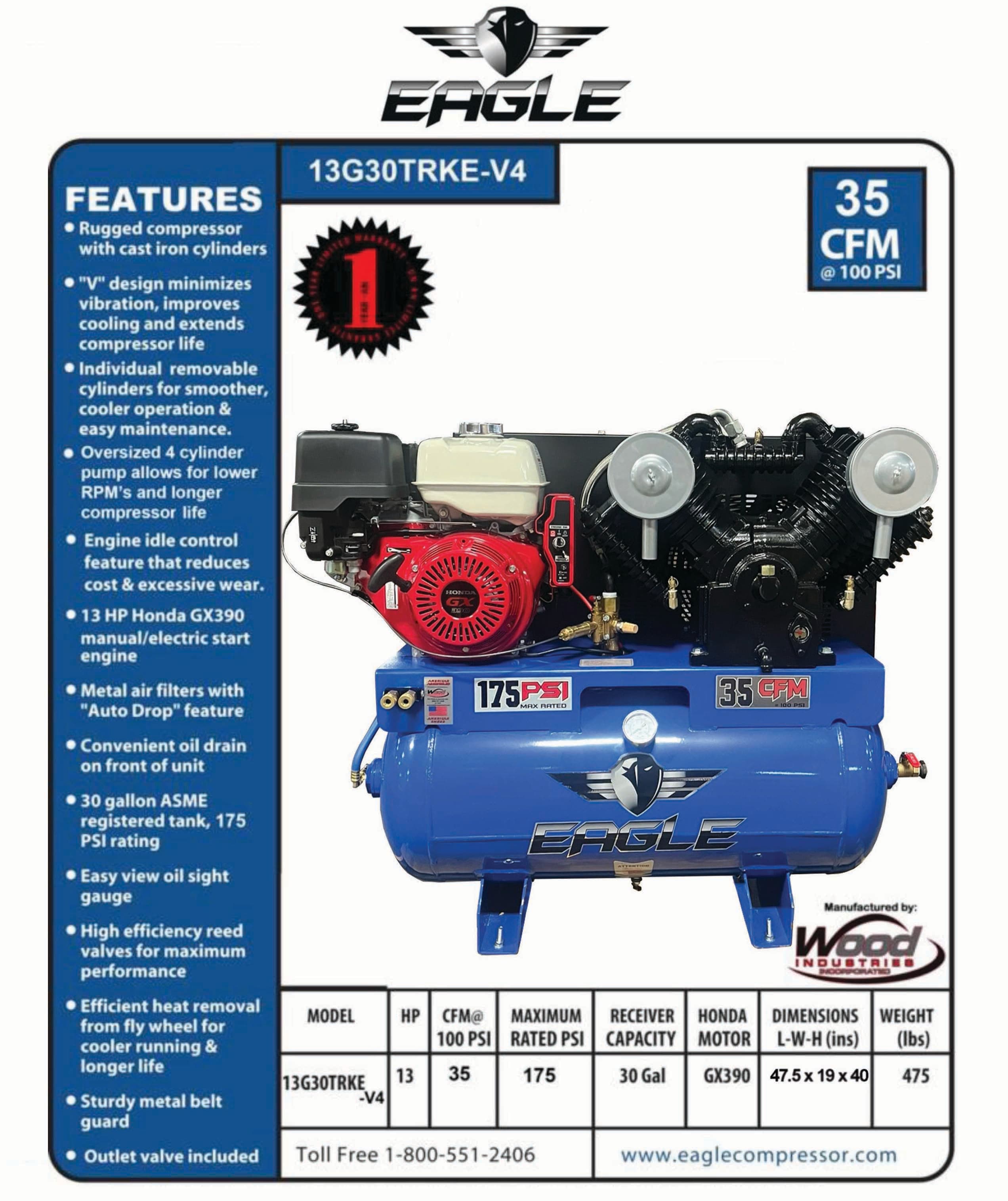

Eagle 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: 13G30TRKE-V4
+
Share This Product
-
Product Description
-
2Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
CFM
35
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
35 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- Heavy Duty Truck Mounted Two Stage Compressor
- Continuous duty where a power cord won't or can't reach
- Built to work hard and last a long time
- 13-HP Honda GX390 Commercial Grade Electric Start Engine
- Powerful, high efficiency reed valves and quiet & dependable
- Sturdy metal belt guard protects the belt & the user
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Solid Cast Iron 2-Stage Pump
- Ideal for service trucks & contractors running multiple tools
- Individual removable cylinders for smoother cooler operation & easy maintenance
- Oversized 4 Cylinder Pump
- Allows for lower RPM's and longer compressor life
- Engine Idle Control
- Reduces cost and excessive wear and tear
- 30 Gallon ASME Tank
- Rated to 175 PSI for safety
- Convenient oil drain on front of unit
- Oversized Industrial Grade Bearings
- Increases durability & pump life
- Metal Air Filters With "Auto Drop" Feature
- Extends compressor life, easy to maintain
- Efficient Heat Removal Pulley-Fan
- Provides cooler running and longer life
- 1 Year Factory Warranty
- Warranty extends to 2 years w/ purchase of Eagle service kit EA-SKG027-X
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
50%
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
475 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
41 Inches
Product Width
19 Inches
Product Height
37 Inches
Power Type
Gas
UPC
20791504228
Grade
Style
Engine Brand
CFM
35
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
35 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- Heavy Duty Truck Mounted Two Stage Compressor
- Continuous duty where a power cord won't or can't reach
- Built to work hard and last a long time
- 13-HP Honda GX390 Commercial Grade Electric Start Engine
- Powerful, high efficiency reed valves and quiet & dependable
- Sturdy metal belt guard protects the belt & the user
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Solid Cast Iron 2-Stage Pump
- Ideal for service trucks & contractors running multiple tools
- Individual removable cylinders for smoother cooler operation & easy maintenance
- Oversized 4 Cylinder Pump
- Allows for lower RPM's and longer compressor life
- Engine Idle Control
- Reduces cost and excessive wear and tear
- 30 Gallon ASME Tank
- Rated to 175 PSI for safety
- Convenient oil drain on front of unit
- Oversized Industrial Grade Bearings
- Increases durability & pump life
- Metal Air Filters With "Auto Drop" Feature
- Extends compressor life, easy to maintain
- Efficient Heat Removal Pulley-Fan
- Provides cooler running and longer life
- 1 Year Factory Warranty
- Warranty extends to 2 years w/ purchase of Eagle service kit EA-SKG027-X
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
50%
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
475 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
41 Inches
Product Width
19 Inches
Product Height
37 Inches
Power Type
Gas
UPC
20791504228
Product Specs
+−
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
50%
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
475 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
41 Inches
Product Width
19 Inches
Product Height
37 Inches
Power Type
Gas
UPC
20791504228
