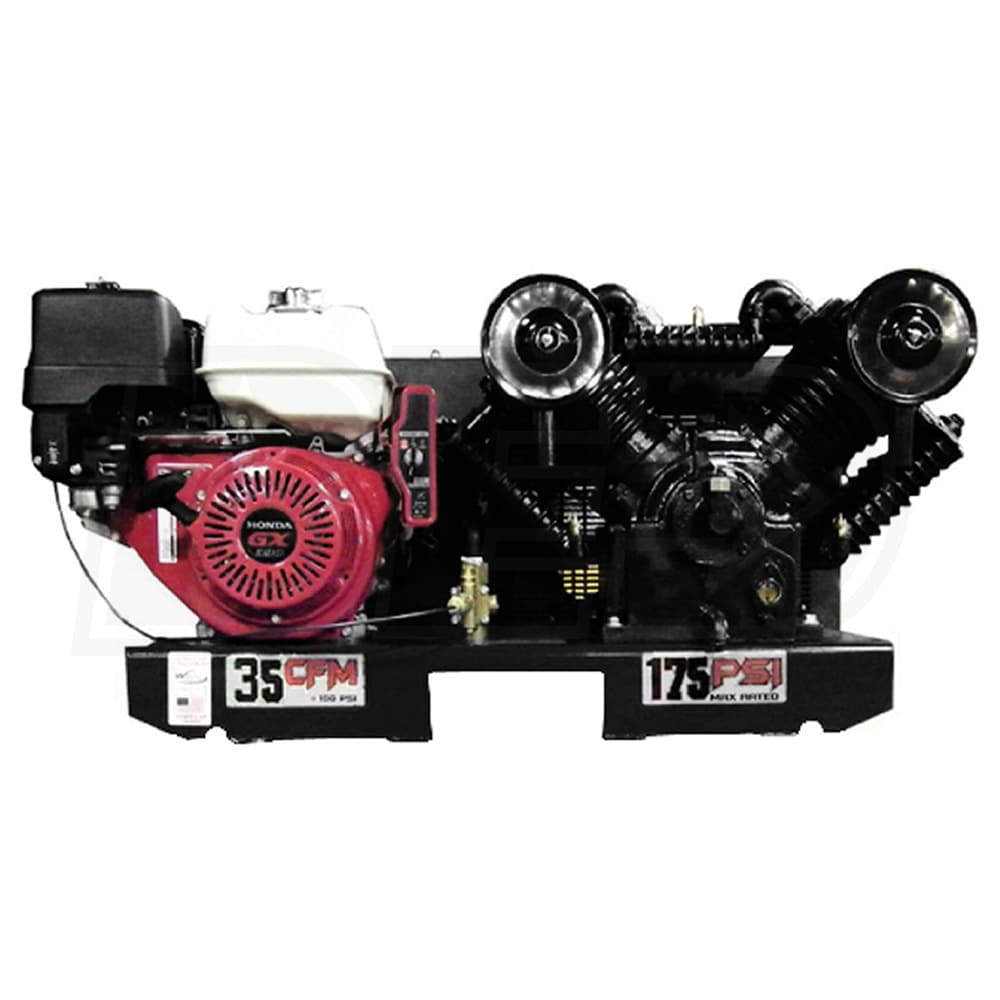

Eagle 13-HP Tankless Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: 13GSKTRKE-V4
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
CFM
35
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
35 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- Tankless 2-Stage Truck-Mount Compressor On Base Plate
- Service kit model EA-SKG027-X
- Add to your own tank or custom set-up
- Delivers high output and reliability
- Designed for service trucks & contractors running multiple tools
- Heavy-Duty Steel Base Plate
- Rust & corrosion resistant
- Mounting flanges allow sturdy mounting on your choice of base
- Unit dimensions 47-1/2" L x 18-1/2" D (Depth) x 23" H
- 13-HP Honda GX340 Commercial Grade Electric Start Engine
- Exceptionally quiet and lower fuel consumptions
- Idle control reduces cost and excessive wear & tear
- OHV design for increased efficiency and optimal power transfer
- Ensures dependable starting every time (Battery & Cables Not Included)
- Automatic low oil engine shutdown
- Solid Cast Iron “V” Style Pump
- Produces 35CFM @ 100PSI
- Minimizes vibration, improves cooling, extends compressor life
- Large bore pistons give the ability to run at less RPM
- Oversized 4 Cylinder Pump
- Allows for lower RPM's and longer compressor life
- High efficiency reed valves for maximum performance
- One inner cooler & two after coolers included
- Easy Viewing Oil Sight Glass On Pump
- Drain located in front of unit for easy maintenance
- Rugged Removable & Individual Cast Iron Cylinders
- Efficient heat removal from fly wheel
- Provides cooler operation & easy maintenance
- Metal Air Filters With "Auto Drop" Feature
- Extends compressor life, easy to maintain
- Sturdy metal belt guard for ultimate protection
- 1 Year Factory Warranty
- Warranty extends to 2 years w/ purchase of Eagle Service Kit
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Weight
320 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
47.5 Inches
Product Width
18.5 Inches
Product Height
23 Inches
Power Type
Gas
UPC
20791504648
Grade
Style
Engine Brand
CFM
35
CFM Rated @ 100 PSI
Tank Size
0
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
35 CFM Rated @ 100 PSI
Tank Size
0 Gallons
Features
Features
- Tankless 2-Stage Truck-Mount Compressor On Base Plate
- Service kit model EA-SKG027-X
- Add to your own tank or custom set-up
- Delivers high output and reliability
- Designed for service trucks & contractors running multiple tools
- Heavy-Duty Steel Base Plate
- Rust & corrosion resistant
- Mounting flanges allow sturdy mounting on your choice of base
- Unit dimensions 47-1/2" L x 18-1/2" D (Depth) x 23" H
- 13-HP Honda GX340 Commercial Grade Electric Start Engine
- Exceptionally quiet and lower fuel consumptions
- Idle control reduces cost and excessive wear & tear
- OHV design for increased efficiency and optimal power transfer
- Ensures dependable starting every time (Battery & Cables Not Included)
- Automatic low oil engine shutdown
- Solid Cast Iron “V” Style Pump
- Produces 35CFM @ 100PSI
- Minimizes vibration, improves cooling, extends compressor life
- Large bore pistons give the ability to run at less RPM
- Oversized 4 Cylinder Pump
- Allows for lower RPM's and longer compressor life
- High efficiency reed valves for maximum performance
- One inner cooler & two after coolers included
- Easy Viewing Oil Sight Glass On Pump
- Drain located in front of unit for easy maintenance
- Rugged Removable & Individual Cast Iron Cylinders
- Efficient heat removal from fly wheel
- Provides cooler operation & easy maintenance
- Metal Air Filters With "Auto Drop" Feature
- Extends compressor life, easy to maintain
- Sturdy metal belt guard for ultimate protection
- 1 Year Factory Warranty
- Warranty extends to 2 years w/ purchase of Eagle Service Kit
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Weight
320 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
47.5 Inches
Product Width
18.5 Inches
Product Height
23 Inches
Power Type
Gas
UPC
20791504648
Product Specs
+−
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
35
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Weight
320 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
47.5 Inches
Product Width
18.5 Inches
Product Height
23 Inches
Power Type
Gas
UPC
20791504648
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Does it come with an alternator for charging?
Larry P.
from Illinois
December 04, 2019
Answer
It does not have an alternator for charging.
Was this answer helpful?
Yes
0
No
0
