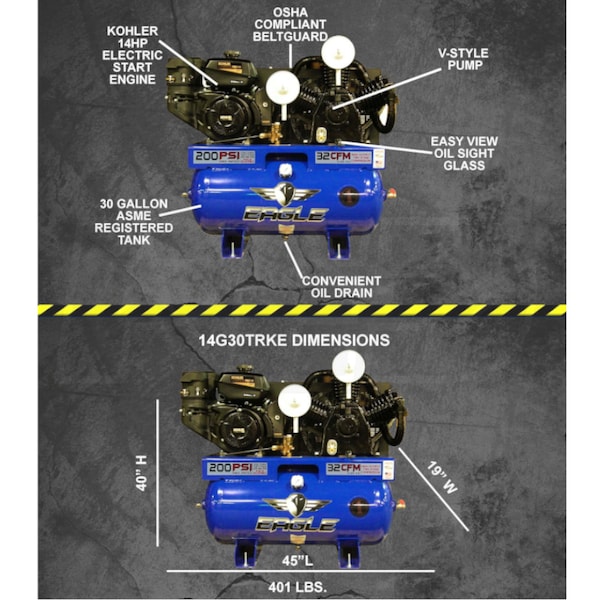

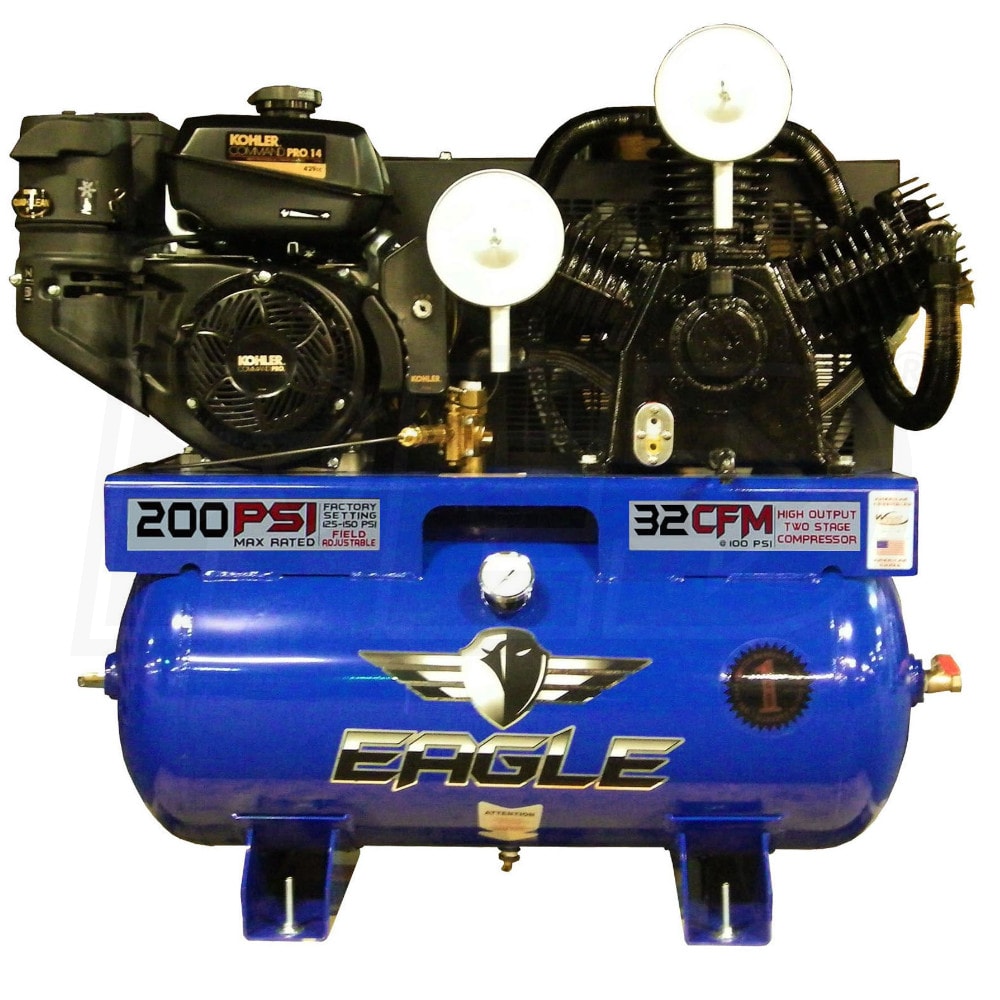

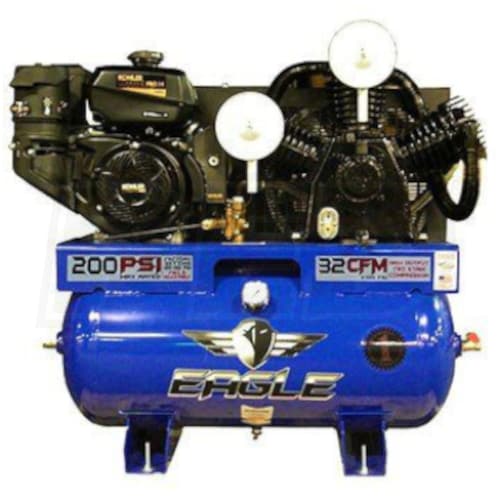

Eagle 14-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Kohler Engine
Model: 14G30TRKE-KP
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
Kohler
CFM
32
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Kohler
CFM
32 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- Truck Mounted 2 Stage Unit Produces 32 CFM @ 100 PSI
- Ideal for contractor jobsite needs and emergency mobile service
- Sturdy and reliable air pressure wherever you need it
- Perfect for roofing and framing jobs
- 14-HP Kohler Professional Grade Electric Start Engine
- Quad-Clean 4-stage air filtration system
- Oil Sentry automatic low oil engine shutdown system
- Warm air intake system for cold weather operation
- Rugged Removable & Individual Cast Iron Cylinders
- Provides cooler operation & easy maintenance

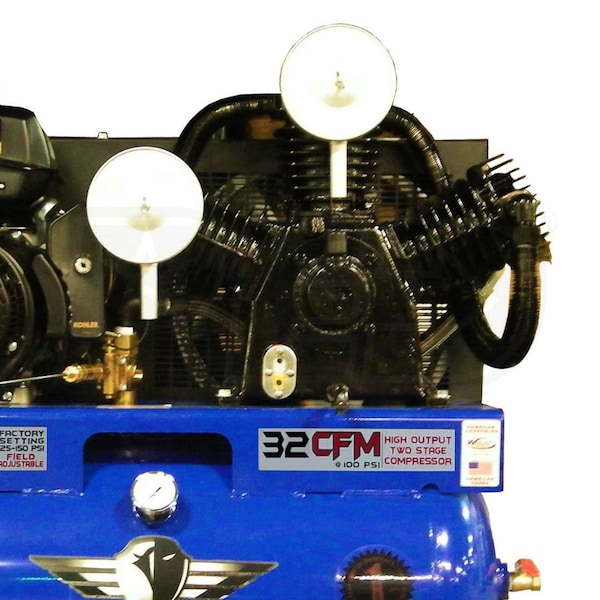

- High efficiency reed valves for maximum performance
- Efficient heat removal from fly wheel
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- High efficiency reed valves for maximum performance
- Large bore pistons give the ability to run at less RPM
- Engine Idle Control
- Reduces operating costs & excessive wear
- Metal Air Filters w/ Automotive Drop-In Style Elements
- Extends compressor life, easy to maintain
- Provides added protection from dust and dirt
- Sturdy metal belt guard protects the belt & the user
- 30 Gallon ASME Tank
- Rated to 200 PSI for safety
- Easy view oil sight gauge
- Convenient oil drain on front of unit
- 1 Year Factory Warranty
- Warranty extends to 2 years w/ purchase of Eagle Service Kit
- Service kit model EA-SKG022-X
Specifications
Engine
HP
14
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
32
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
401 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
40 Inches
Power Type
Gas
UPC
020791504075
Grade
Style
Engine Brand
Kohler
CFM
32
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Kohler
CFM
32 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- Truck Mounted 2 Stage Unit Produces 32 CFM @ 100 PSI
- Ideal for contractor jobsite needs and emergency mobile service
- Sturdy and reliable air pressure wherever you need it
- Perfect for roofing and framing jobs
- 14-HP Kohler Professional Grade Electric Start Engine
- Quad-Clean 4-stage air filtration system
- Oil Sentry automatic low oil engine shutdown system
- Warm air intake system for cold weather operation
- Rugged Removable & Individual Cast Iron Cylinders
- Provides cooler operation & easy maintenance
- High efficiency reed valves for maximum performance
- Efficient heat removal from fly wheel
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- High efficiency reed valves for maximum performance
- Large bore pistons give the ability to run at less RPM
- Engine Idle Control
- Reduces operating costs & excessive wear
- Metal Air Filters w/ Automotive Drop-In Style Elements
- Extends compressor life, easy to maintain
- Provides added protection from dust and dirt
- Sturdy metal belt guard protects the belt & the user
- 30 Gallon ASME Tank
- Rated to 200 PSI for safety
- Easy view oil sight gauge
- Convenient oil drain on front of unit
- 1 Year Factory Warranty
- Warranty extends to 2 years w/ purchase of Eagle Service Kit
- Service kit model EA-SKG022-X
Specifications
Engine
HP
14
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
32
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
401 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
40 Inches
Power Type
Gas
UPC
020791504075
Product Specs
+−
Specifications
Engine
HP
14
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
32
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
401 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
40 Inches
Power Type
Gas
UPC
020791504075
