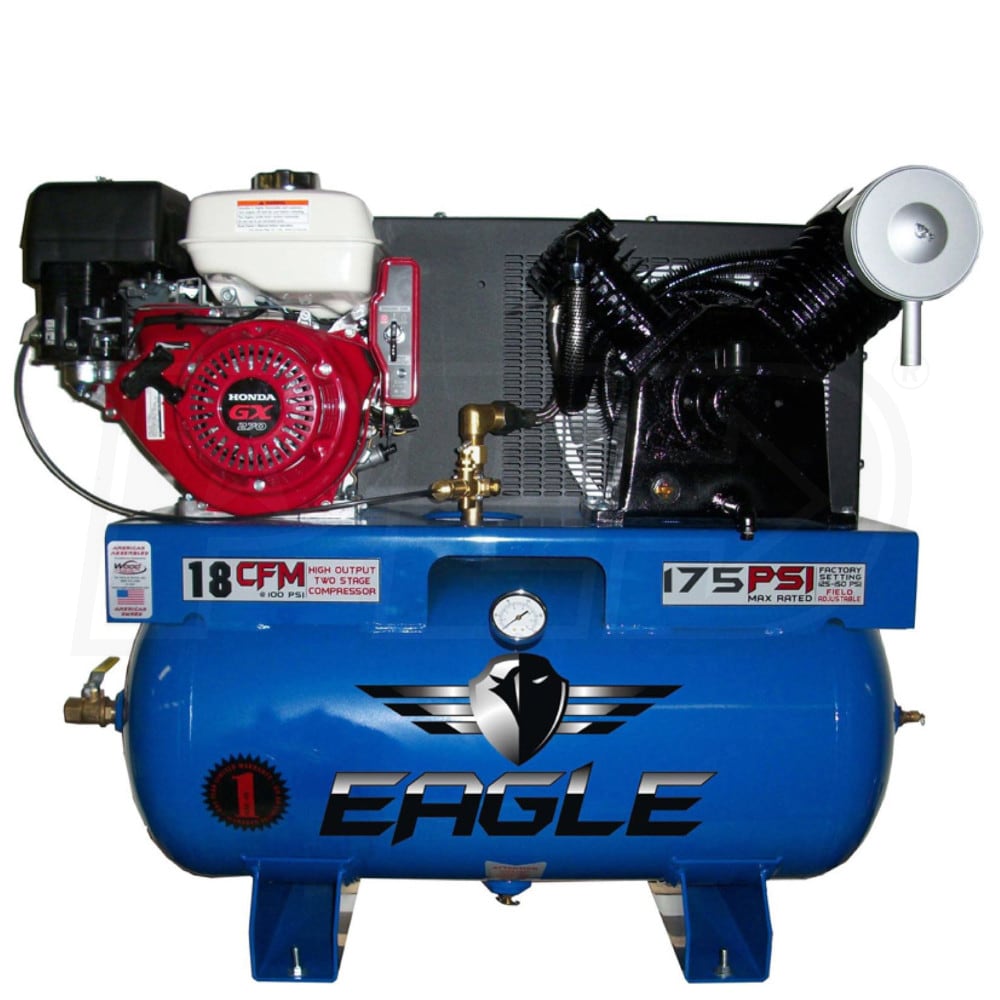

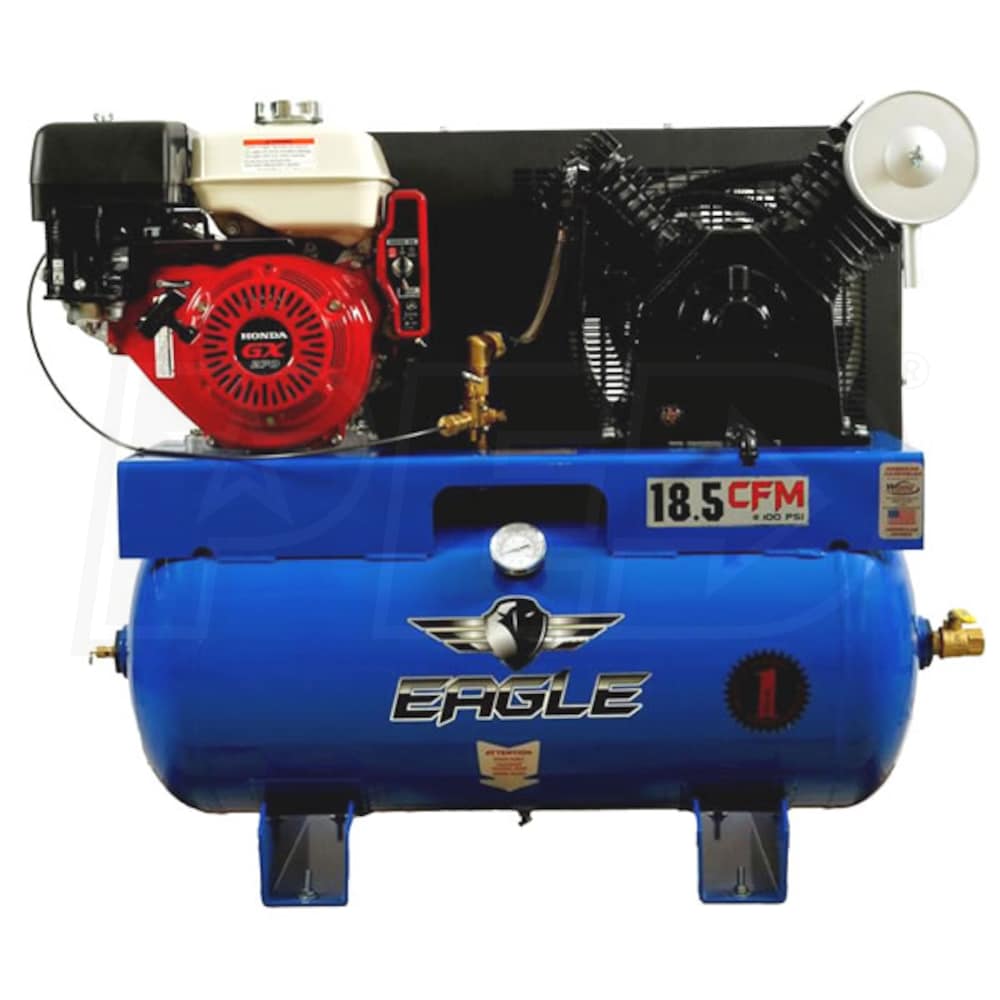

Eagle 9-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: 9G30TRKE
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
CFM
18
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
18 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- Truck Mounted 2 Stage Unit Produces 18 CFM @ 100 PSI
- Service Kit Model EA-SKG019-X
- Sturdy and reliable air pressure wherever you need it
- Ideal for jobsite needs and mobile service applications
- Perfect for framing and roofing
- Reliable 9-HP Commercial Grade GX270 Honda Engine
- Fuel efficient with high output operation
- Precision engineered components result in lower vibration
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- Low oil shut down for maximum protection

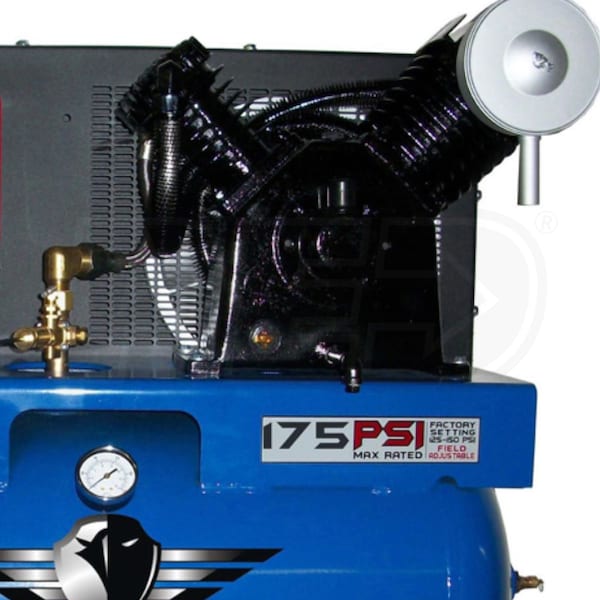

- Rugged Removable & Individual Cast Iron Cylinders
- Built to work hard and last a long time
- For smoother & cooler operation
- Efficient heat removal from fly wheel
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Generates less heat in pump for longer life
- Heavy Duty Pressure Switch
- With convenient on/off control
- Sturdy metal belt guard for added protection
- Metal Air Filters With "Auto Drop" Feature
- Provides added protection from dust and dirt
- Extends compressor life, easy to maintain
- 30 Gallon ASME Tank
- Rated to 200 PSI; outlet valve included
- Convenient oil drain on front of unit
- Easy view oil sight gauge
- 1 Year Factory Warranty
- Warranty extends to 2-years w/ purchase of Eagle service kit
Specifications
Engine
HP
9
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
18
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
360 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
39 Inches
Power Type
Gas
UPC
777589000294
Grade
Style
Engine Brand
CFM
18
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
18 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- Truck Mounted 2 Stage Unit Produces 18 CFM @ 100 PSI
- Service Kit Model EA-SKG019-X
- Sturdy and reliable air pressure wherever you need it
- Ideal for jobsite needs and mobile service applications
- Perfect for framing and roofing
- Reliable 9-HP Commercial Grade GX270 Honda Engine
- Fuel efficient with high output operation
- Precision engineered components result in lower vibration
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- Low oil shut down for maximum protection
- Rugged Removable & Individual Cast Iron Cylinders
- Built to work hard and last a long time
- For smoother & cooler operation
- Efficient heat removal from fly wheel
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Generates less heat in pump for longer life
- Heavy Duty Pressure Switch
- With convenient on/off control
- Sturdy metal belt guard for added protection
- Metal Air Filters With "Auto Drop" Feature
- Provides added protection from dust and dirt
- Extends compressor life, easy to maintain
- 30 Gallon ASME Tank
- Rated to 200 PSI; outlet valve included
- Convenient oil drain on front of unit
- Easy view oil sight gauge
- 1 Year Factory Warranty
- Warranty extends to 2-years w/ purchase of Eagle service kit
Specifications
Engine
HP
9
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
18
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
360 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
39 Inches
Power Type
Gas
UPC
777589000294
Product Specs
+−
Specifications
Engine
HP
9
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
18
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
360 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
45 Inches
Product Width
19 Inches
Product Height
39 Inches
Power Type
Gas
UPC
777589000294
