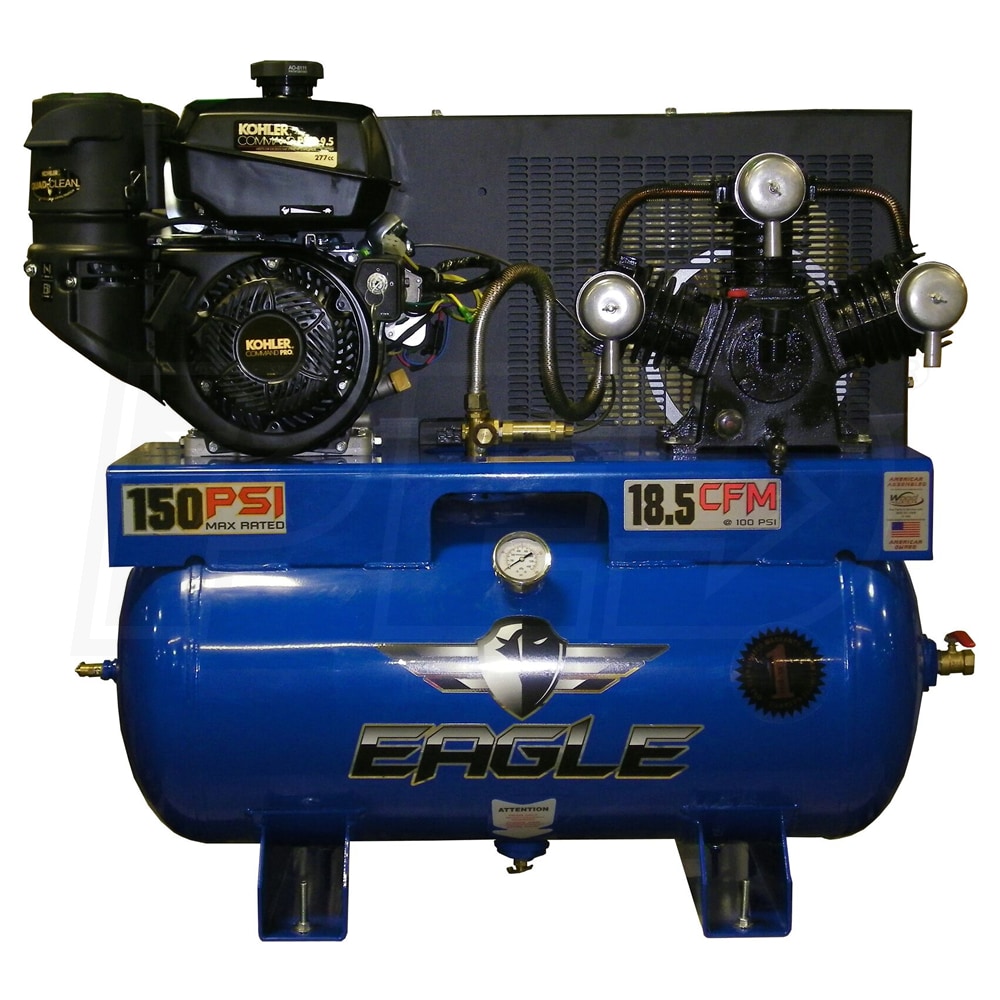

Eagle 9-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Kohler Engine
Model: 9G30TRKE-H-KP
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

Engine Brand
Kohler
CFM
18.5
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Kohler
CFM
18.5 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- 9-HP Kohler Command Pro Commercial Grade Electric Start Engine
- Powerful, quiet & dependable
- Sturdy metal belt guard protects the belt & the user
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- Heavy Duty Truck Mounted Two Stage Compressor
- Continuous duty where a power cord won't or can't reach
- Built to work hard and last a long time
- Engine Idle Control
- Reduces cost and excessive wear and tear
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Solid Cast Iron 2-Stage Pump
- Ideal for service trucks & contractors running multiple tools
- Individual removable cylinders for smoother cooler operation & easy maintenance
- Metal Air Filters With "Auto Drop" Feature
- Extends compressor life, easy to maintain
- Oversized Industrial Grade Bearings
- Increases durability & pump life
- Efficient Heat Removal Pulley-Fan
- Provides cooler running and longer life
- 30 Gallon ASME Tank
- Rated to 150 PSI for safety
- Convenient oil drain on front of unit
- 1 Year Factory Warranty
- Warranty extends to 2 years w/ purchase of Eagle service kit EA-SKG024-X
Specifications
Engine
HP
9
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
No
Pump
CFM
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
50%
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
297 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
19 Inches
Product Height
39 Inches
Power Type
Gas
UPC
20791504044
Grade

Style

Engine Brand
Kohler
CFM
18.5
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Kohler
CFM
18.5 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- 9-HP Kohler Command Pro Commercial Grade Electric Start Engine
- Powerful, quiet & dependable
- Sturdy metal belt guard protects the belt & the user
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- Heavy Duty Truck Mounted Two Stage Compressor
- Continuous duty where a power cord won't or can't reach
- Built to work hard and last a long time
- Engine Idle Control
- Reduces cost and excessive wear and tear
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Solid Cast Iron 2-Stage Pump
- Ideal for service trucks & contractors running multiple tools
- Individual removable cylinders for smoother cooler operation & easy maintenance
- Metal Air Filters With "Auto Drop" Feature
- Extends compressor life, easy to maintain
- Oversized Industrial Grade Bearings
- Increases durability & pump life
- Efficient Heat Removal Pulley-Fan
- Provides cooler running and longer life
- 30 Gallon ASME Tank
- Rated to 150 PSI for safety
- Convenient oil drain on front of unit
- 1 Year Factory Warranty
- Warranty extends to 2 years w/ purchase of Eagle service kit EA-SKG024-X
Specifications
Engine
HP
9
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
No
Pump
CFM
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
50%
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
297 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
19 Inches
Product Height
39 Inches
Power Type
Gas
UPC
20791504044
Product Specs
+−
Specifications
Engine
HP
9
Auto Idle
Yes
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
No
Pump
CFM
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Duty Cycle
50%
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
297 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
19 Inches
Product Height
39 Inches
Power Type
Gas
UPC
20791504044
