Features
Grade
Contractor
Style
Hot Dog
CFM
2
Tank Size
1
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Silent Series
- Rated at 46 dB from 25 feet away; softer than most conversations
- Life expectancy more than 4 times longer than most oil-free air compressors
- 1-HP (Peak) Motor
- Draws only 6.5 amps, works on most household 115V outlets
- Oil-Free Double Piston Pump System
- Produces 2 CFM at 90 PSI; 2.6 CFM at 40 PSI with a 50% duty cycle to power small air tools
- Oil-free system requires no pump maintenance
- Top-Mounted Control Panel
- Dual gauges to monitor tool & tank pressure at a glance
- Single 1/4" air hose quick connector simplifies tool use
- Oversized regulator knob is easy to use, even wearing work gloves
- 1-Gallon Hot Dog Style Tank
- Easy to carry, transport & store; 125 PSI maximum pressure
- Lever-Type Tank Drain Valve
- Simplifies maintenance; extends air tank life
- Roll Cage Design With Anti-Vibration Feet
- Protects the pump; foam handle is easy on your hands
- Helps keep the compressor steady & quiet
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EA-3000
General Information
Product Category
Air Compressor - Portable
Engine
HP
1
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
46
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
6.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2
CFM Rated @
90 PSI
CFM @ 40 PSI
2.6
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
50%
Tank
Tank Size
1 Gallon
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
40 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
14.2 Inches
Product Width
16.3 Inches
Product Height
13.4 Inches
Power Type
Electric
UPC
020791503894
Reviews
(18)
Eagle EA-3000 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Joshua, the Air Compressor Expert
How-To Articles
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
EA-3000
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

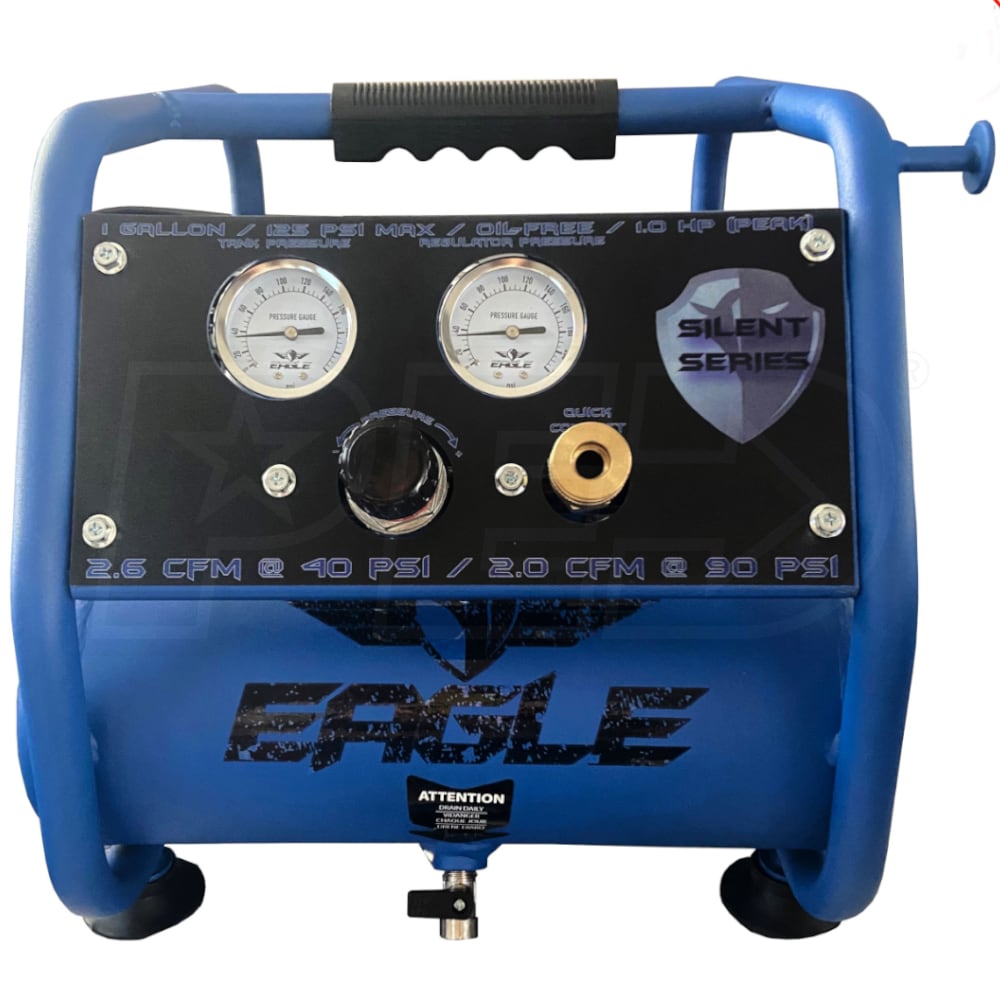

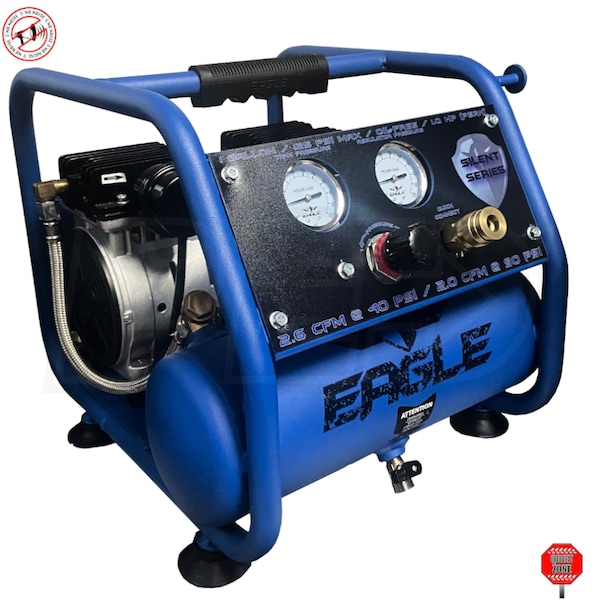

Eagle Silent Series 1-HP 1-Gallon Hot Dog Air Compressor
