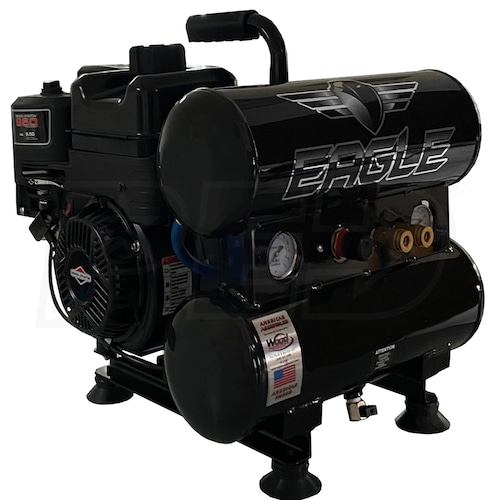

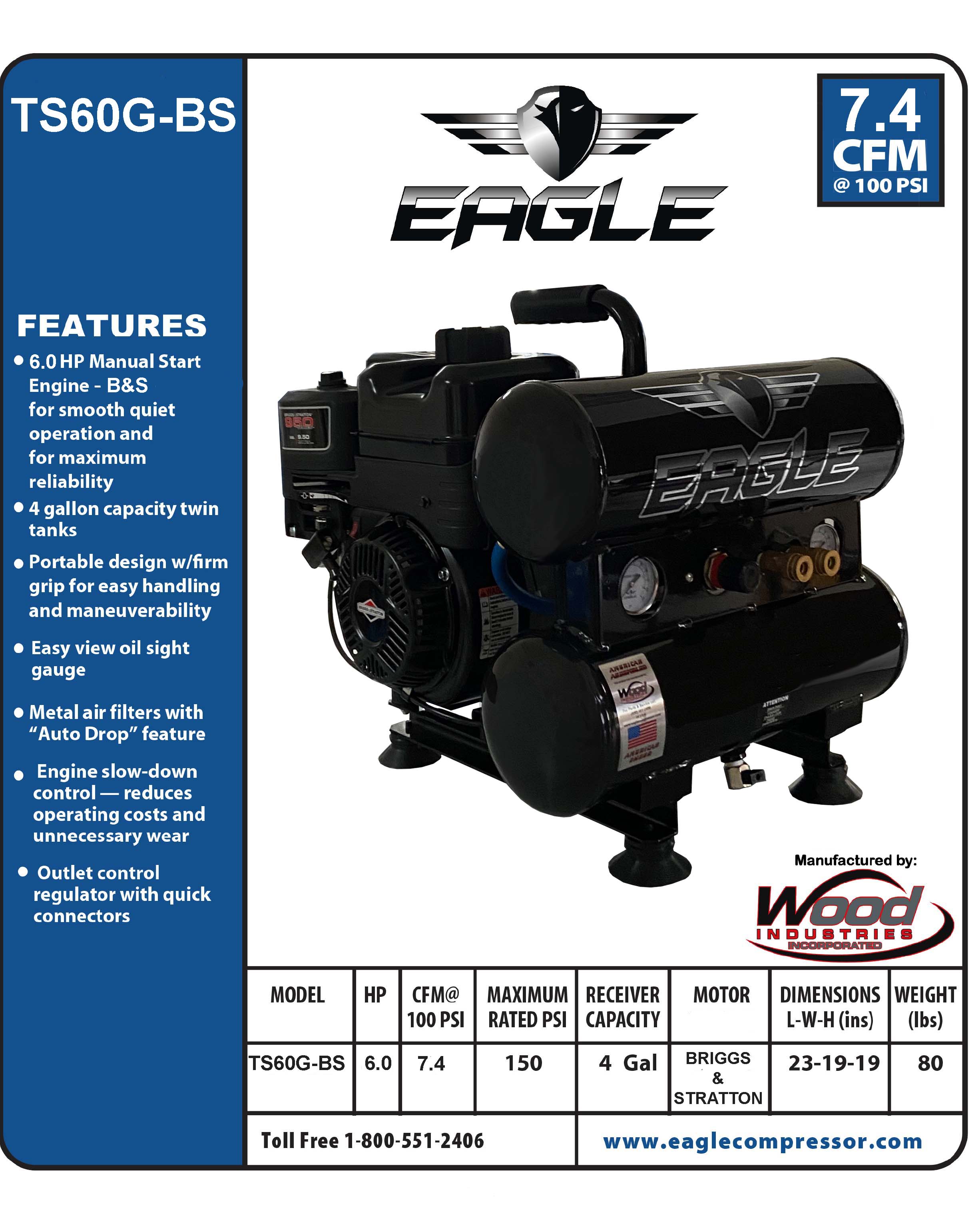

Eagle 6-HP 4-Gallon Gas Twin Stack Air Compressor w/ Briggs & Stratton Engine
Model:
TS60G-BS
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Twin Stack
Engine Brand
Briggs & Stratton
CFM
7.4
Tank Size
4
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Portable Hand-Carry Single Stage Air Compressor
- Perfect for remote job sites where electricity isn't available
- Firm grip for easy handling and maneuverability
- 7.4 CFM at 100 PSI; 150 PSI Maximum
- Plenty of power to run a wide range of air tools
- Tackle airbrushing, drilling, sanding and bolting/wrenching
- Powerful 6-HP Briggs & Stratton 950 Series OHV Engine
- Smooth quiet operation for maximum reliability
- Cast iron sleeve withstands wear and abuse
- Engine Slow-Down Idle Control
- Reduces operating cost and unnecessary wear and tear
- 4-Gallon Twin Stack Air Tank
- Compact design with sturdy tires for easy portability
- Easy-access manual drain simplifies routine maintenance
- Front-Mounted Control Panel
- Dual gauges to monitor tool & tank pressure at a glance
- Single 1/4" air hose quick connector simplifies tool use
- Oversized regulator knob is easy to use, even wearing work gloves
- Metal Air Filter w/ Auto Drop Feature
- Provides a cleaner air, quieter air supply and extends compressor life
- Easy View Oil Sight Gauge
- Simplifies maintenance & routine checks
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
TS60G-BS
General Information
Product Category
Air Compressor - Portable
Engine
HP
6
Auto Idle
Yes
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Engine Low Oil Shut-off
No
Motor
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
7.4
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
4 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
80 Pounds
Consumer Warranty
1 Year
Product Length
23 Inches
Product Width
19 Inches
Product Height
19 Inches
Power Type
Gas
UPC
020791504808
