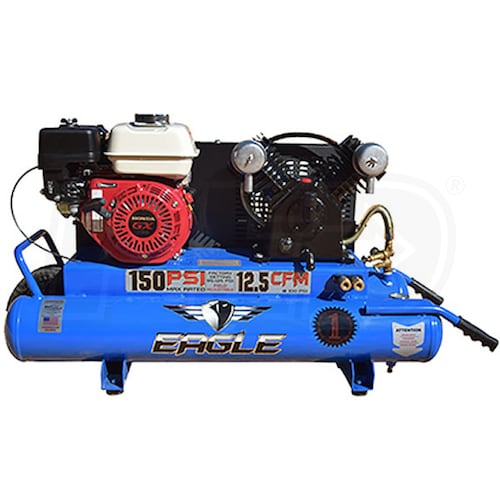

Eagle 5.5-HP 10-Gallon Gas Wheelbarrow Air Compressor w/ Honda Engine
Model: TT55G
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
CFM
12.5
CFM Rated @ 100 PSI
Tank Size
10
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
12.5 CFM Rated @ 100 PSI
Tank Size
10 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Honda GX160 5.5-HP OHV Engine
- 3 quart gas tank lets you work longer between fill-ups
- Commercial grade engine starts easily, runs reliably

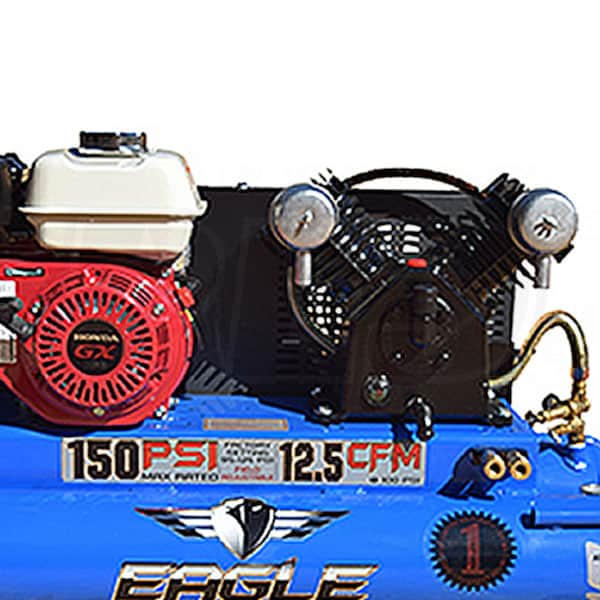

- High Flow, Cast Iron V-Style Pump
- V design minimizes vibration, improves cooling & extends compressor life
- Individual & removable cylinders for smoother, cooler operation
- Belt Drive
- Smooth power transfer delivers 12.5 CFM at 100 PSI; 150 PSI maximum
- Protective all metal belt guard
- Dual Quick Connects
- Lets you run 2 tools at once for maximum efficiency
- Metal Air Filters With Auto-Drop
- Provides a cleaner, quieter air supply
- Oil Level Sight Glass
- Simplifies maintenance
- Two 5-Gallon Air Tanks
- 10 gallon total is ideal for framing, roofing, & finish nailing
- Oversize Tire
- Easily manueuvers around job sites
- Roll bar over tire can be used to help load the compressor
Specifications
Engine
HP
5.5
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
No
Pump
CFM
12.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
168 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
47 Inches
Product Width
18 Inches
Product Height
25 Inches
Power Type
Gas
UPC
777589000140
Grade
Style
Engine Brand
CFM
12.5
CFM Rated @ 100 PSI
Tank Size
10
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
12.5 CFM Rated @ 100 PSI
Tank Size
10 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Honda GX160 5.5-HP OHV Engine
- 3 quart gas tank lets you work longer between fill-ups
- Commercial grade engine starts easily, runs reliably
- High Flow, Cast Iron V-Style Pump
- V design minimizes vibration, improves cooling & extends compressor life
- Individual & removable cylinders for smoother, cooler operation
- Belt Drive
- Smooth power transfer delivers 12.5 CFM at 100 PSI; 150 PSI maximum
- Protective all metal belt guard
- Dual Quick Connects
- Lets you run 2 tools at once for maximum efficiency
- Metal Air Filters With Auto-Drop
- Provides a cleaner, quieter air supply
- Oil Level Sight Glass
- Simplifies maintenance
- Two 5-Gallon Air Tanks
- 10 gallon total is ideal for framing, roofing, & finish nailing
- Oversize Tire
- Easily manueuvers around job sites
- Roll bar over tire can be used to help load the compressor
Specifications
Engine
HP
5.5
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
No
Pump
CFM
12.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
168 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
47 Inches
Product Width
18 Inches
Product Height
25 Inches
Power Type
Gas
UPC
777589000140
Product Specs
+−
Specifications
Engine
HP
5.5
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
No
Pump
CFM
12.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
168 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
47 Inches
Product Width
18 Inches
Product Height
25 Inches
Power Type
Gas
UPC
777589000140
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Does this unit have auto idle down?
Gary G.
from North Dakota
March 20, 2019
Answer
This unit has an unloaded that, once the compressor builds peak pressure, the unloaded kicks the throttle down to an idle, and the unit idles until the air is depleted down to the low-pressure setting. Then the unloader revs the gas engine back up and rebuilds pressure.
Was this answer helpful?
Yes
1
No
