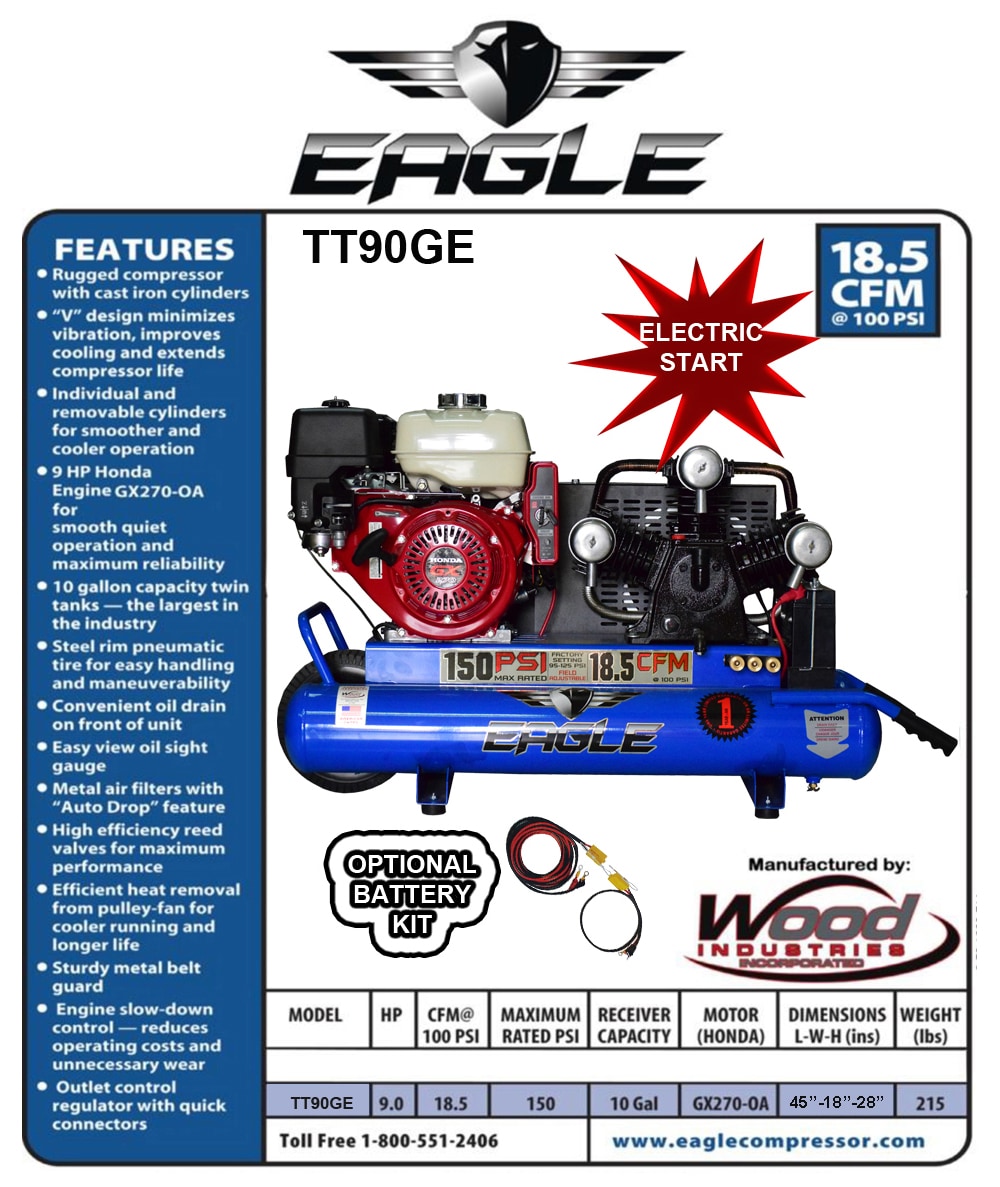

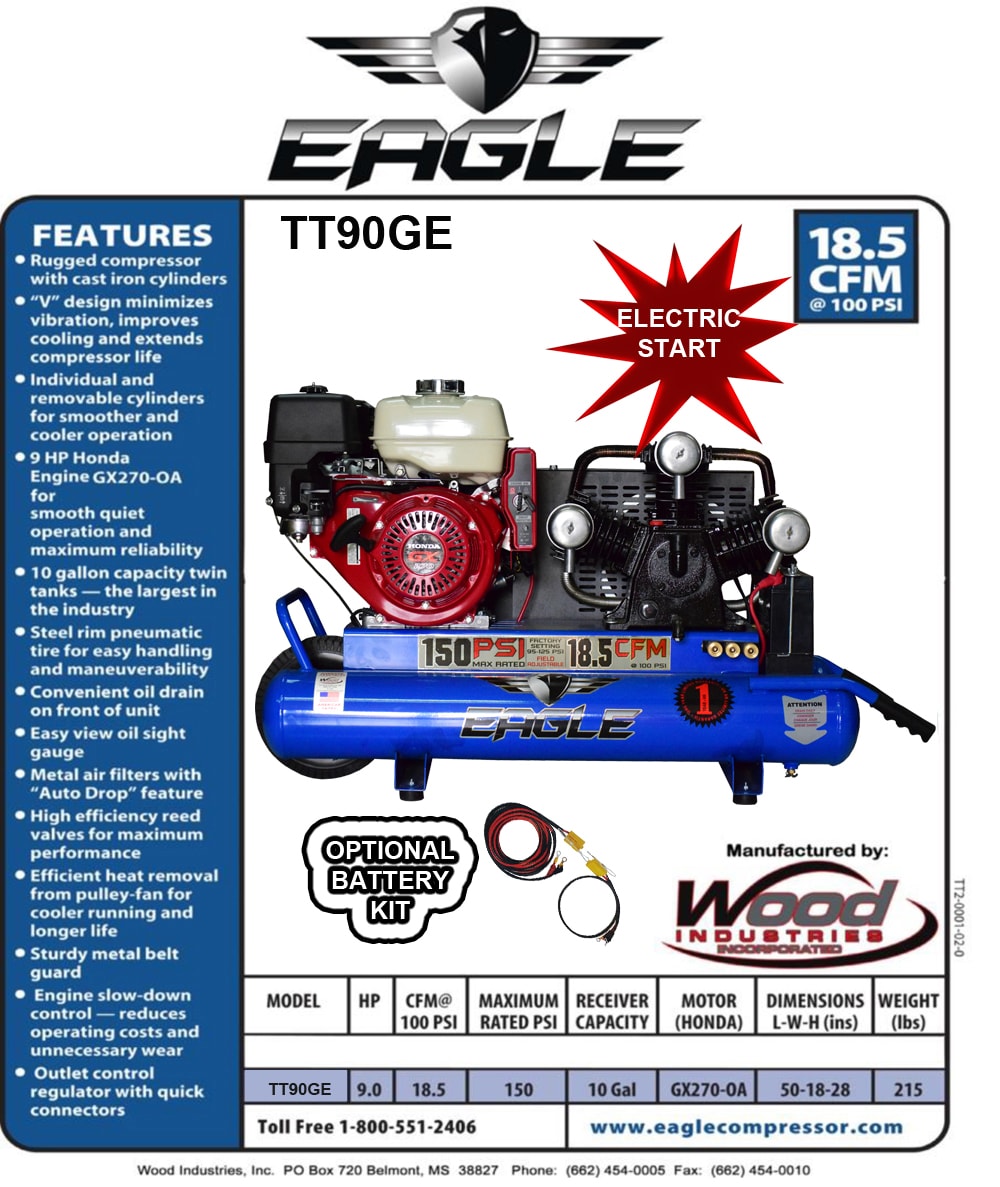

Eagle 8.5-HP 10-Gallon Wheelbarrow Air Compressor w/ Electric Start Honda Engine
Model:
TT90GE
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Wheel Barrow
Engine Brand
Honda GX
CFM
18.5
Tank Size
10
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

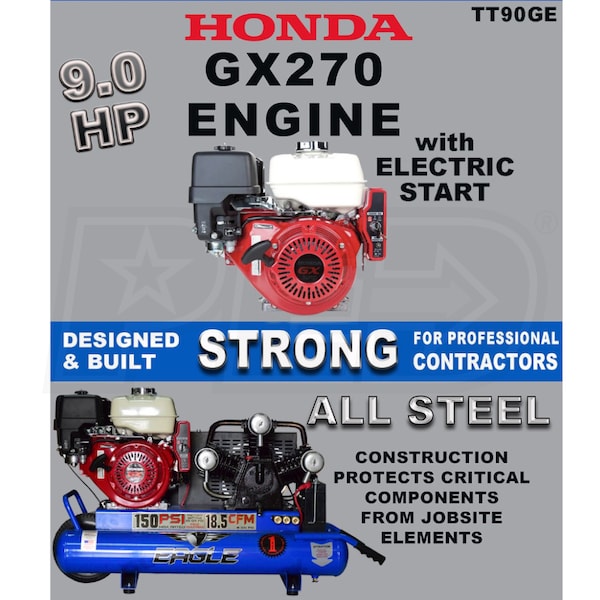

- Honda GX270 OHV Engine w/ Elelctric Start
- 5.6 qt gas tank lets you work longer between fill-ups
- Commercial grade engine starts easily, runs reliably
- Electric Start battery & cables not included
- High Flow, 3 Cylinder Pump
- Minimizes vibration, improves cooling & extends compressor life
- Individual & removable cylinders for smoother, cooler operation
- Belt Drive
- Protective all metal belt guard
- Smooth power transfer delivers 18.5 CFM at 100 PSI; 150 PSI maximum
- Oil Level Sight Glass
- Simplifies maintenance & routine checks
- Metal Air Filters With Auto-Drop
- Provides a cleaner, quieter air supply
- Two 5-Gallon Air Tanks w/ Triple Quick Connects
- Easily run 3 hoses at once for maximum efficiency
- 10 gallon total is ideal for framing, roofing, & finish nailing
- Oversize Flat-Free Tire
- Easily manueuvers around job sites
- Roll bar over tire can be used to help load the compressor
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
TT90GE
General Information
Product Category
Air Compressor - Portable
Engine
HP
8.5
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
215 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
50 Inches
Product Width
18 Inches
Product Height
28 Inches
Power Type
Gas
