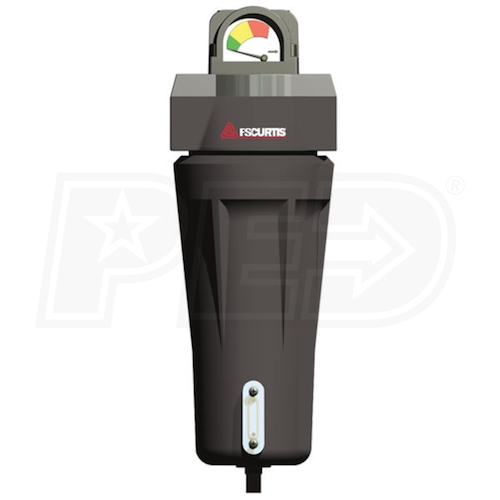

FS-Curtis 1" NPT 100 PSI .008 ppm High Efficiency Oil Removal Filter (100 CFM)
Model: CF5-24-8-DGL
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Low Pressure Drop
- Delivers energy savings over time: 1 PSI dry & 3 PSI wet
- Piston-Type Element To Housing Seal
- Keeps unfiltered air from bypassing the element
- Corrosion Resistant Inner & Outer Cores
- Longer lasting & easy to maintain
- Matrix-Blended Fiber Media
- Large effective surface area improves capture rate & efficiency
- Coated Closed-Cell Foam Sleeve
- Resists chemical corrosion from oils & acids

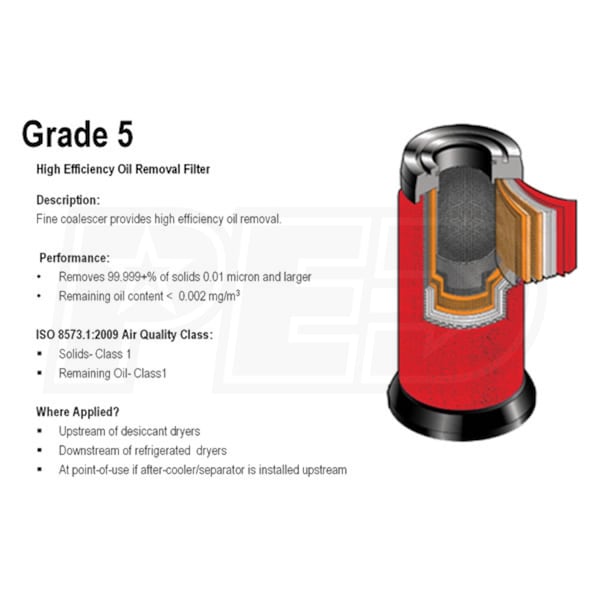

- Grade 5 General Purpose Two Stage Filter
- Coalesces & removes oil 99.99+% from air supply
- Ideal for paint, injection molding, instruments & control valves
- First Stage Alternates Layers Of Fiber Media & Media Screen
- Captures larger particles
- Second Stage Multiple Layers Of Epoxy Bonded, Blended Fiber Media
- Coalesces aerosols and captures solid particles to 0.01 micron
- Fits Multiple Applications
- Handles up to 100 CFM flow at 100 PSI; 250 PSIG max at 150° F
- Attaches to 1 inch NPT fitting (bracket not included)
Specifications
Filter
Filter CFM
100
Oil Remover
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Fitting Size
1"
High Efficiency
Yes
Overview
Weight
6.3 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
5 Inches
Product Width
5 Inches
Product Height
15 Inches
Features
Features
- Low Pressure Drop
- Delivers energy savings over time: 1 PSI dry & 3 PSI wet
- Piston-Type Element To Housing Seal
- Keeps unfiltered air from bypassing the element
- Corrosion Resistant Inner & Outer Cores
- Longer lasting & easy to maintain
- Matrix-Blended Fiber Media
- Large effective surface area improves capture rate & efficiency
- Coated Closed-Cell Foam Sleeve
- Resists chemical corrosion from oils & acids
- Grade 5 General Purpose Two Stage Filter
- Coalesces & removes oil 99.99+% from air supply
- Ideal for paint, injection molding, instruments & control valves
- First Stage Alternates Layers Of Fiber Media & Media Screen
- Captures larger particles
- Second Stage Multiple Layers Of Epoxy Bonded, Blended Fiber Media
- Coalesces aerosols and captures solid particles to 0.01 micron
- Fits Multiple Applications
- Handles up to 100 CFM flow at 100 PSI; 250 PSIG max at 150° F
- Attaches to 1 inch NPT fitting (bracket not included)
Specifications
Filter
Filter CFM
100
Oil Remover
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Fitting Size
1"
High Efficiency
Yes
Overview
Weight
6.3 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
5 Inches
Product Width
5 Inches
Product Height
15 Inches
Product Specs
+−
Specifications
Filter
Filter CFM
100
Oil Remover
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Fitting Size
1"
High Efficiency
Yes
Overview
Weight
6.3 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
5 Inches
Product Width
5 Inches
Product Height
15 Inches
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Is there a replacement filter available for this unit?
Justin Mathiason
from South Dakota
June 29, 2016
Answer
Please contact FS-Curtis @ 800-388-8370 for replacement filter elements.
