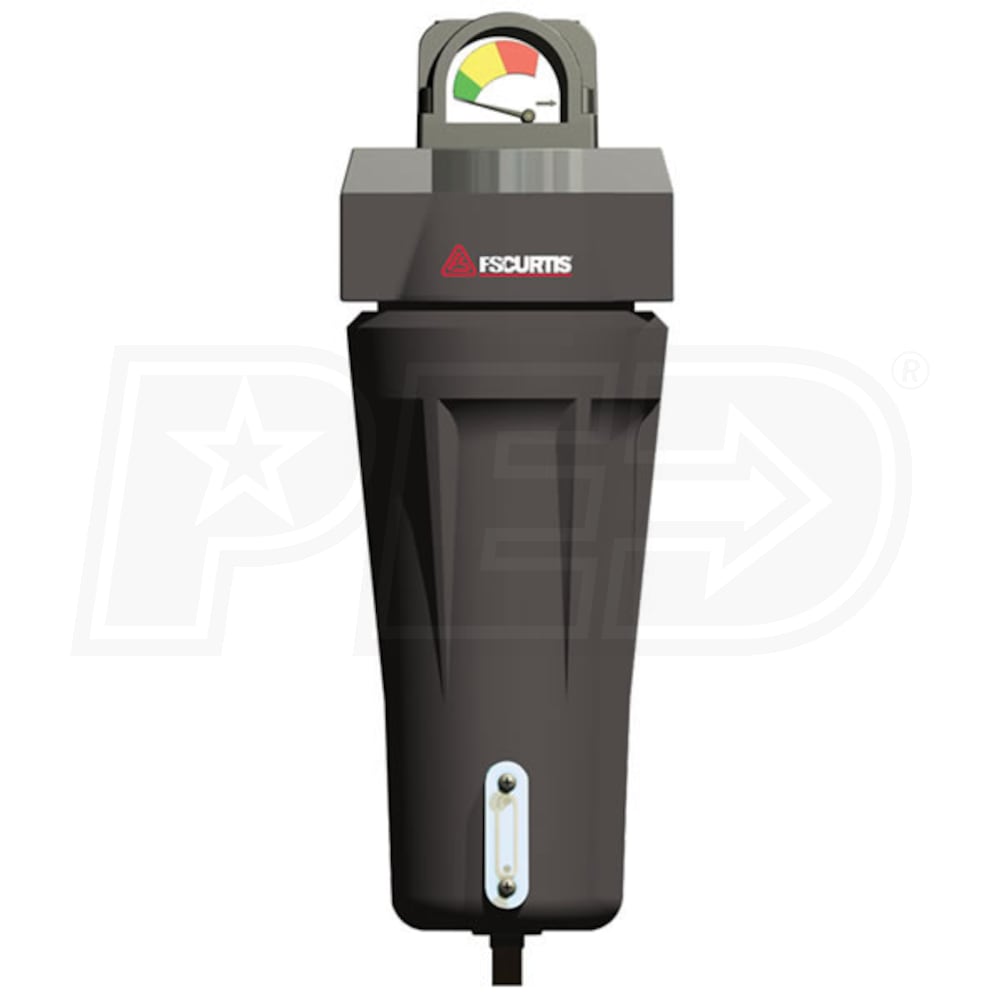

FS-Curtis 1" NPT 100 PSI (1 Micron) General Purpose Air Filter (170 CFM)

FS-Curtis 1" NPT 100 PSI (1 Micron) General Purpose Air Filter (170 CFM)
Our Price
Compare Prices
Shipping Info
Model: CF7-28-8-DGL
$405.08

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
$405.08Buy Now
$405.08Visit Site
Factory-Direct
Ships in 2-5 Business Days
Shipping Info
Shipping Info
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
  • Low Pressure Drop
  • Delivers energy savings over time: 1 PSI dry & 2 PSI wet
  • Piston-Type Element To Housing Seal
  • Keeps unfiltered air from bypassing the element
  • Corrosion Resistant Inner & Outer Cores
  • Longer lasting & easy to maintain
  • Matrix-Blended Fiber Media
  • Large effective surface area improves capture rate & efficiency
  • Coated Closed-Cell Foam Sleeve
  • Resists chemical corrosion from oils & acids

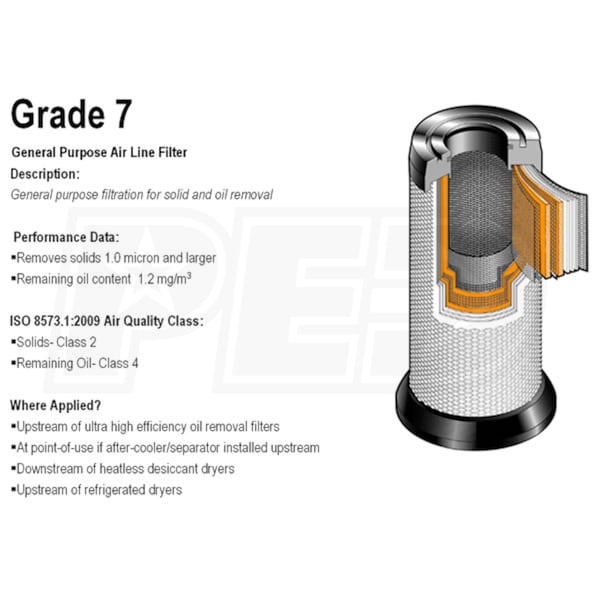

  • Grade 7 General Purpose Two Stage Filter
  • Removes liquid water, oil, & particles to 1 micron
  • Ideal for tools, motors, & cylinders
  • First Stage Alternates Layers Of Fiber Media & Media Screen
  • Captures larger particles
  • Second Stage Multiple Layers Of Epoxy Bonded, Blended Fiber Media
  • Coalesces aerosols and captures solid particles
  • Fits Multiple Applications
  • Handles up to 170 CFM flow at 100 PSI; 250 PSIG max at 150° F
  • Attaches to 1 inch NPT fitting ((bracket not included)
Specifications
Filter
Filter CFM
170
General Purpose
Yes
Overview
Weight
6.9 Pounds
Product Length
5 Inches
Product Width
5 Inches
Product Height
20 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Features
Features
  • Low Pressure Drop
  • Delivers energy savings over time: 1 PSI dry & 2 PSI wet
  • Piston-Type Element To Housing Seal
  • Keeps unfiltered air from bypassing the element
  • Corrosion Resistant Inner & Outer Cores
  • Longer lasting & easy to maintain
  • Matrix-Blended Fiber Media
  • Large effective surface area improves capture rate & efficiency
  • Coated Closed-Cell Foam Sleeve
  • Resists chemical corrosion from oils & acids
  • Grade 7 General Purpose Two Stage Filter
  • Removes liquid water, oil, & particles to 1 micron
  • Ideal for tools, motors, & cylinders
  • First Stage Alternates Layers Of Fiber Media & Media Screen
  • Captures larger particles
  • Second Stage Multiple Layers Of Epoxy Bonded, Blended Fiber Media
  • Coalesces aerosols and captures solid particles
  • Fits Multiple Applications
  • Handles up to 170 CFM flow at 100 PSI; 250 PSIG max at 150° F
  • Attaches to 1 inch NPT fitting ((bracket not included)
Specifications
Filter
Filter CFM
170
General Purpose
Yes
Overview
Weight
6.9 Pounds
Product Length
5 Inches
Product Width
5 Inches
Product Height
20 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Specs
+
Specifications
Filter
Filter CFM
170
General Purpose
Yes
Overview
Weight
6.9 Pounds
Product Length
5 Inches
Product Width
5 Inches
Product Height
20 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
