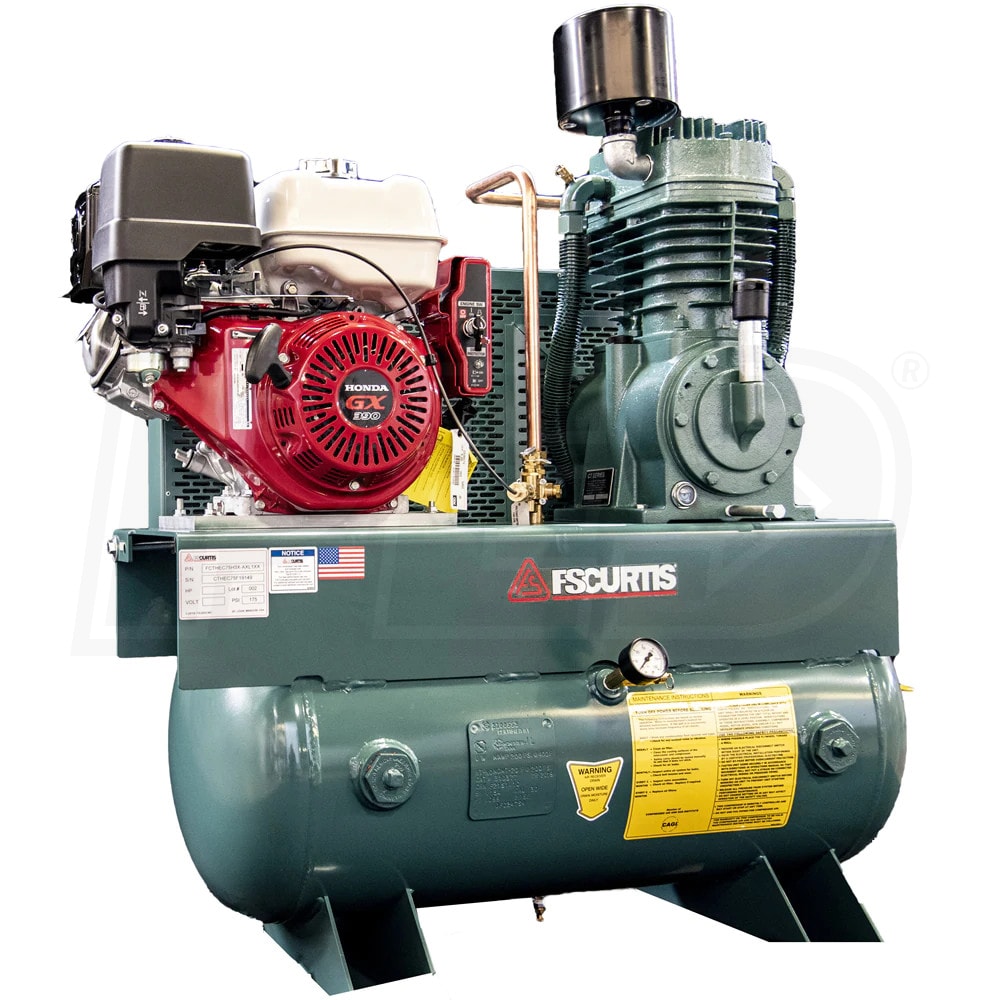

FS-Curtis CT13-H 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine

Model:

FCTHEC75H3X-AXL1XX

Write a Review
$3,321.20
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
FS-Curtis CT13-H 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
FS-Curtis CT13-H 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: FCTHEC75H3X-AXL1XX
$3,321.20
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Grade

Contractor

Style

Truck Mount

Engine Brand

Honda GX

CFM

24.8

Tank Size

30



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Rugged & Simple Industrial Design
  • Combines performance & reliability in an economical package
  • Ideal choice for light fleet, contractor, & light service trucks
  • 13-HP Honda Commercial-Grade GX390 Gas Engine
  • Reliable engine is easy to start; runs smooth & quiet
  • 100% Cast-Iron Cylinders & Cylinder Heads
  • Slow-turning pump & deep fins increase pump life
  • High-Flow, Heavy-Duty Stainless-Steel Valve System
  • 24.8 CFM @ 175 PSI; delivers more CFM per horsepower
  • ASME Rated 30-Gallon Horizontal Tank
  • Plenty of reserve for impact wrenches, drills, grinders, etc.
  • 12 Volt DC Starter With Alternator
  • Perfect for fleet & service applications (battery not included)
  • Robust Intercooler
  • Increases compressor efficiency
  • Heavy-Duty Stamped-Steel Belt Guard
  • OSHA approved for safety & durability
  • 1 Year Factory Warranty
  • Extends to 2 years using FS-Curtis maintenance products
California residents see
Warning: This product can expose you to chemicals including Cumene which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FCTHEC75H3X-AXL1XX
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
No
Pump
CFM
24.8
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
460 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
49.88 Inches
Product Width
42.5 Inches
Product Height
23.75 Inches
Power Type
Gas
