Features
Grade
Consumer
Style
Single Stage 1-Phase
CFM
18.1
Tank Size
80
- High Air Flow Single-Stage Compressor
- Produces 18 CFM @ 90 PSI to run many different air tools
- Cast Iron 3 Cylinder Pump
- Durable, one piece cast-iron crankcase & full cylinder body
- TOPS® Motor (Thermal Overload Protection System)
- Protects the motor from voltage fluctuations
- Oil Lubricated
- Swedish stainless steel flex leaf valves for optimum performance
- Shipped with synthetic oil for best performance & long pump life
- Easy fill access & oil sight glass make maintenance simple
- 16" Balanced Cast Iron Flywheel
- Belt drive is smoother & quieter than direct-drive units
- Large Intake Filter/Silencer
- Provides good air flow & reduces noise
- Large Capacity 80 Gallon ASME Air Receiver
- Longer run times on air tools such as ratchets, impacts, etc.
- Maximum pressure 155 PSI
- Factory Warranty
- 1 year for residential use; 90 days for commercial use
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
ILA5148080
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5.5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
410 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
37 Inches
Product Width
29 Inches
Product Height
76 Inches
Power Type
Electric
UPC
846212001585
Reviews
(2)
Industrial Air ILA5148080 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How To Quickly Improve Your Gas Mileage
You don't have to be a rocket scientist to figure out properly inflated tires w...
Modern Air Compressors for Modern Dentistry
It's difficult to earn a patient's trust. After years of investing in your prac...
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
ILA5148080
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

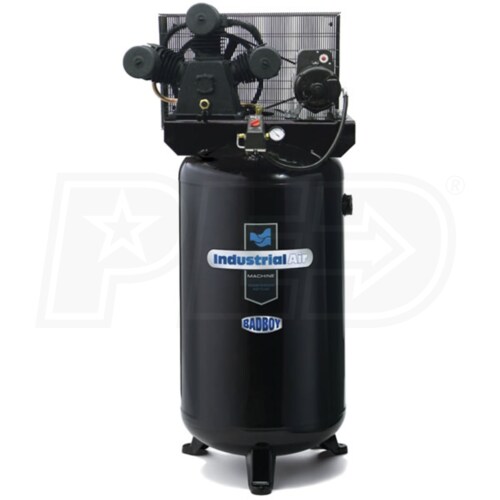

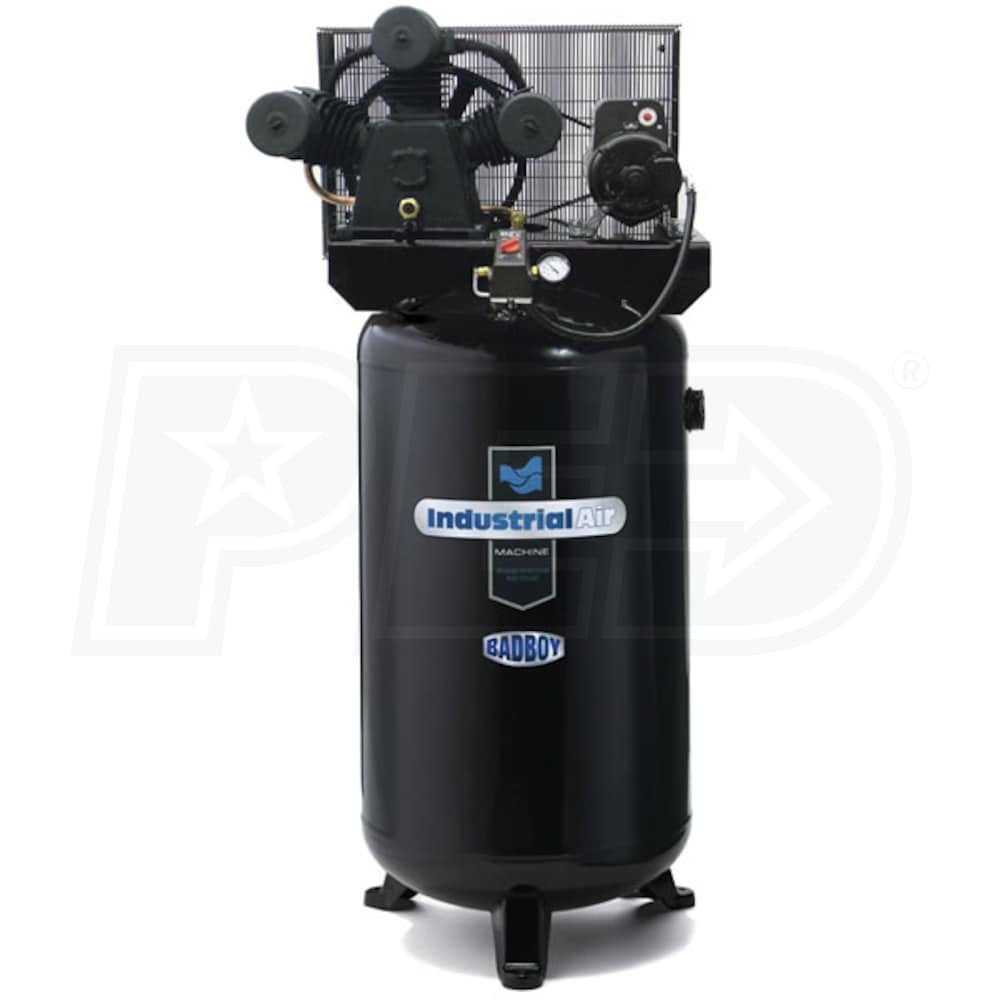

Industrial Air 5.7-HP 80-Gallon Single-Stage Air Compressor
