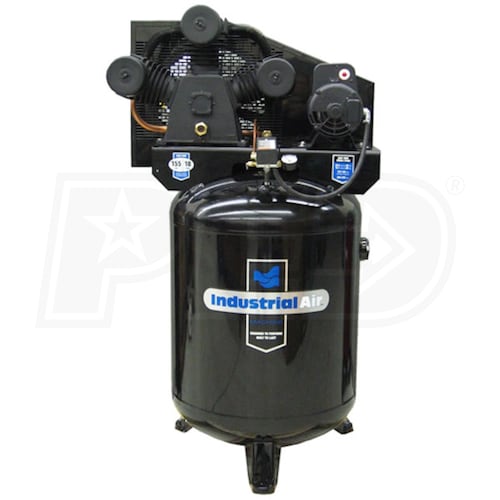

Industrial Air 5.7-HP 60-Gallon Single Stage Air Compressor
Model: ILA5746080
+
Share This Product
-
Product Description
-
4Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
18.1
CFM Rated @ 90 PSI
Tank Size
60
Gallons
Grade
Consumer
CFM
18.1 CFM Rated @ 90 PSI
Tank Size
60 Gallons
Features
Features
- High Air Flow Single-Stage Compressor
- Produces 18 CFM @ 90 PSI to run many different air tools

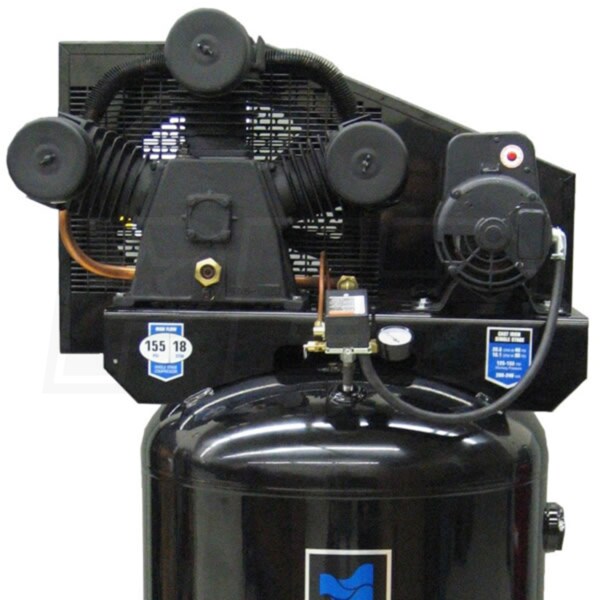

- Cast Iron 3 Cylinder Pump
- Durable, one piece cast-iron crankcase & full cylinder body
- TOPS® Motor (Thermal Overload Protection System)
- Protects the motor from voltage fluctuations
- Oil Lubricated
- Swedish stainless steel flex leaf valves for optimum performance
- Shipped with synthetic oil for best performance & long pump life
- Easy fill access & oil sight glass make maintenance simple
- 16" Balanced Cast Iron Flywheel
- Belt drive is smoother & quieter than direct-drive units
- Large Intake Filter/Silencer
- Provides good air flow & reduces noise
- Low Profile 60 Gallon ASME Certified Air Receiver
- Longer run times on air tools such as ratchets, impacts, etc.
- Less top heavy than traditional vertical compressors
- Maximum pressure 155 PSI; 230V-1 phase power required
- Factory Warranty
- 1 year for residential use; 90 days for commercial use
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
5.5
Pump
CFM
18.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
385 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
26 Inches
Product Width
37 Inches
Product Height
62.5 Inches
Power Type
Electric
UPC
846212002698
Grade

Style

CFM
18.1
CFM Rated @ 90 PSI
Tank Size
60
Gallons
Grade
Consumer
CFM
18.1 CFM Rated @ 90 PSI
Tank Size
60 Gallons
Features
Features
- High Air Flow Single-Stage Compressor
- Produces 18 CFM @ 90 PSI to run many different air tools
- Cast Iron 3 Cylinder Pump
- Durable, one piece cast-iron crankcase & full cylinder body
- TOPS® Motor (Thermal Overload Protection System)
- Protects the motor from voltage fluctuations
- Oil Lubricated
- Swedish stainless steel flex leaf valves for optimum performance
- Shipped with synthetic oil for best performance & long pump life
- Easy fill access & oil sight glass make maintenance simple
- 16" Balanced Cast Iron Flywheel
- Belt drive is smoother & quieter than direct-drive units
- Large Intake Filter/Silencer
- Provides good air flow & reduces noise
- Low Profile 60 Gallon ASME Certified Air Receiver
- Longer run times on air tools such as ratchets, impacts, etc.
- Less top heavy than traditional vertical compressors
- Maximum pressure 155 PSI; 230V-1 phase power required
- Factory Warranty
- 1 year for residential use; 90 days for commercial use
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
5.5
Pump
CFM
18.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
385 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
26 Inches
Product Width
37 Inches
Product Height
62.5 Inches
Power Type
Electric
UPC
846212002698
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
5.5
Pump
CFM
18.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
385 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
90 Days
Product Length
26 Inches
Product Width
37 Inches
Product Height
62.5 Inches
Power Type
Electric
UPC
846212002698
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
What is the dB rating of this air compressor?
Ricky J.
from Texas
January 11, 2020
Answer
The range is 75-80 decibels. It may be louder in a smaller enclosure.
