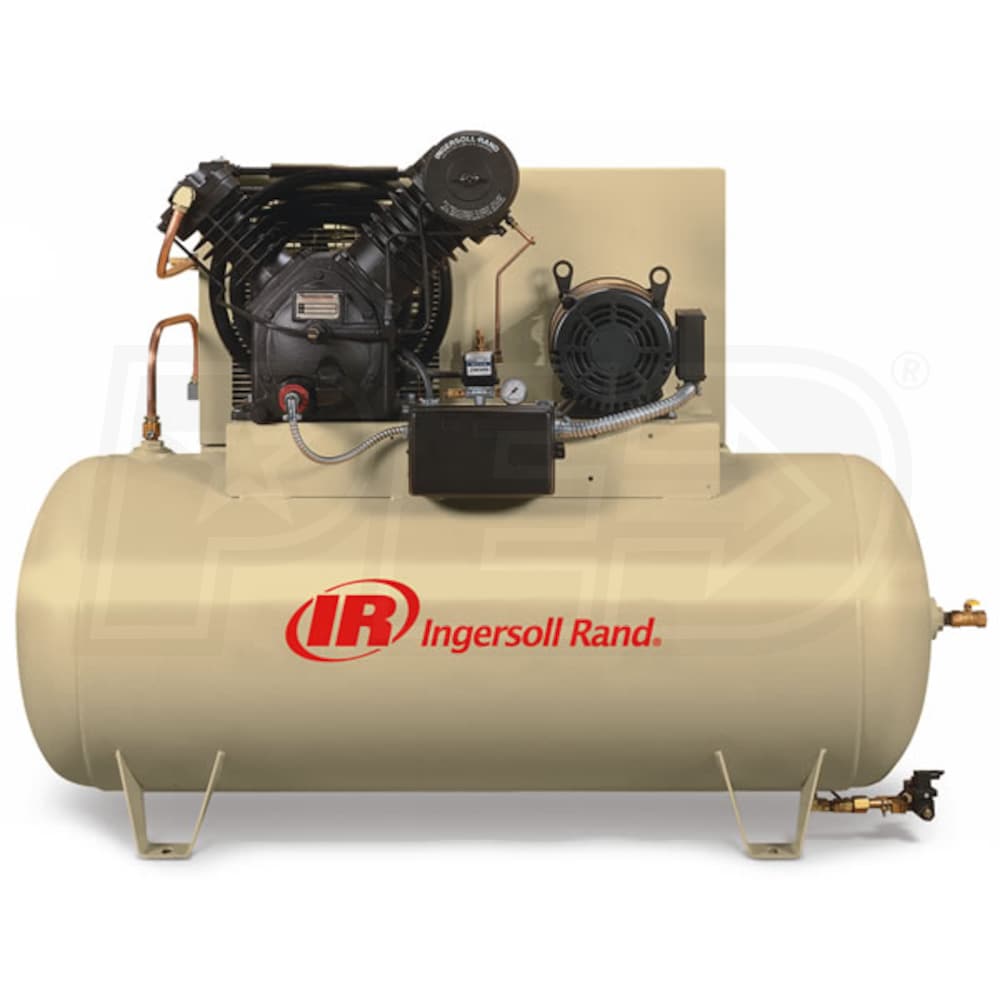

Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase) Value Plus Package

Model:

2545E10VP-200

Write a Review
$3,419.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase) Value Plus Package
Ingersoll Rand 10-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase) Value Plus Package
Model: 2545E10VP-200
$3,419.99
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Grade

Commercial

Style

Two Stage 3-Phase (208 Volts)

CFM

35

Tank Size

120


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

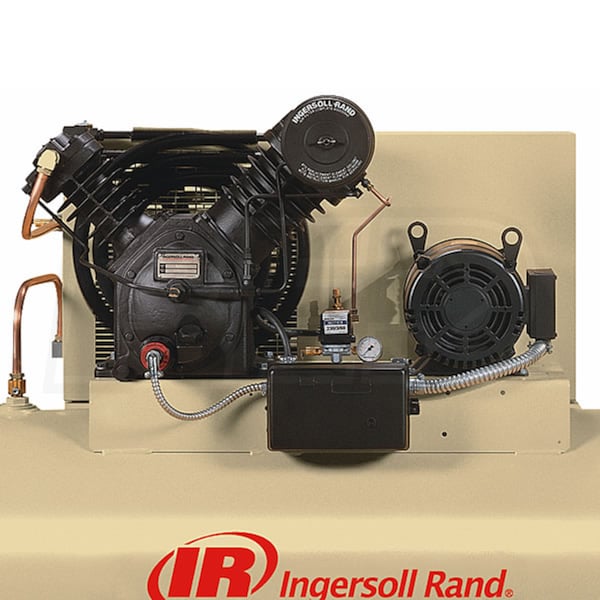

  • Durable Cast Iron Design
  • Provides 100% duty operation
  • Precision Engineered Components
  • Deliver maximum performance & reliability
  • Individually Cast Cylinders & Overhung Crankshaft
  • One-piece connecting rod for easy maintenance & service
  • High efficiency finger valves provide consistent air delivery
  • Value Pro Package

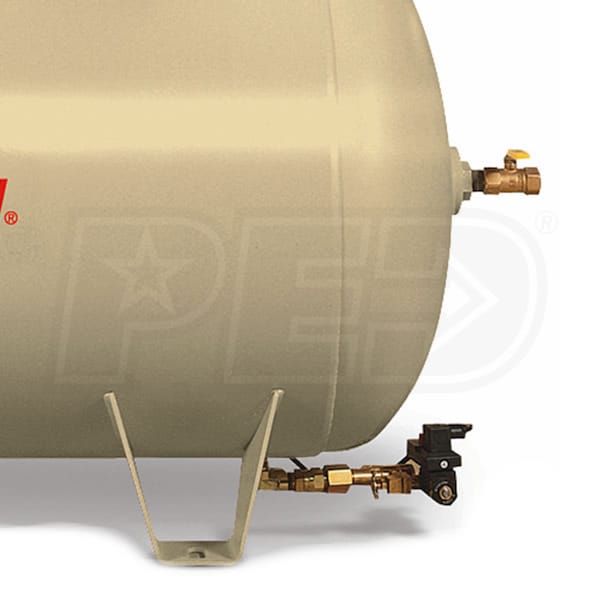

  • Electric drain keeps condensation to a minimum
  • Air cooled aftercooler extends pump life
  • 175 PSIG Maximum Operating Pressure
  • Ideal for applications requiring high air capacity & pressure
  • 1 Year Factory Warranty
  • Extends to 2 years using IR All Season Select Synthetic lubricant
  • IR Start Up Kit must be added at time of air compressor purchase
  • Mounted Motor Starter Included
  • No need to purchase an additional starter
  • Vibration Isolators Sold Separately
  • IR Installation Kit also includes foundation bolts & hose
  • Extends tank warranty to 5 years when added at time of purchase
  • Ingersoll Rand Reciprocating Compressors Ship Dry
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2545E10VP-200
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
32.2
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Weight
1104 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
83 Inches
Product Width
38 Inches
Product Height
65 Inches
Power Type
Electric
UPC
678384021968
