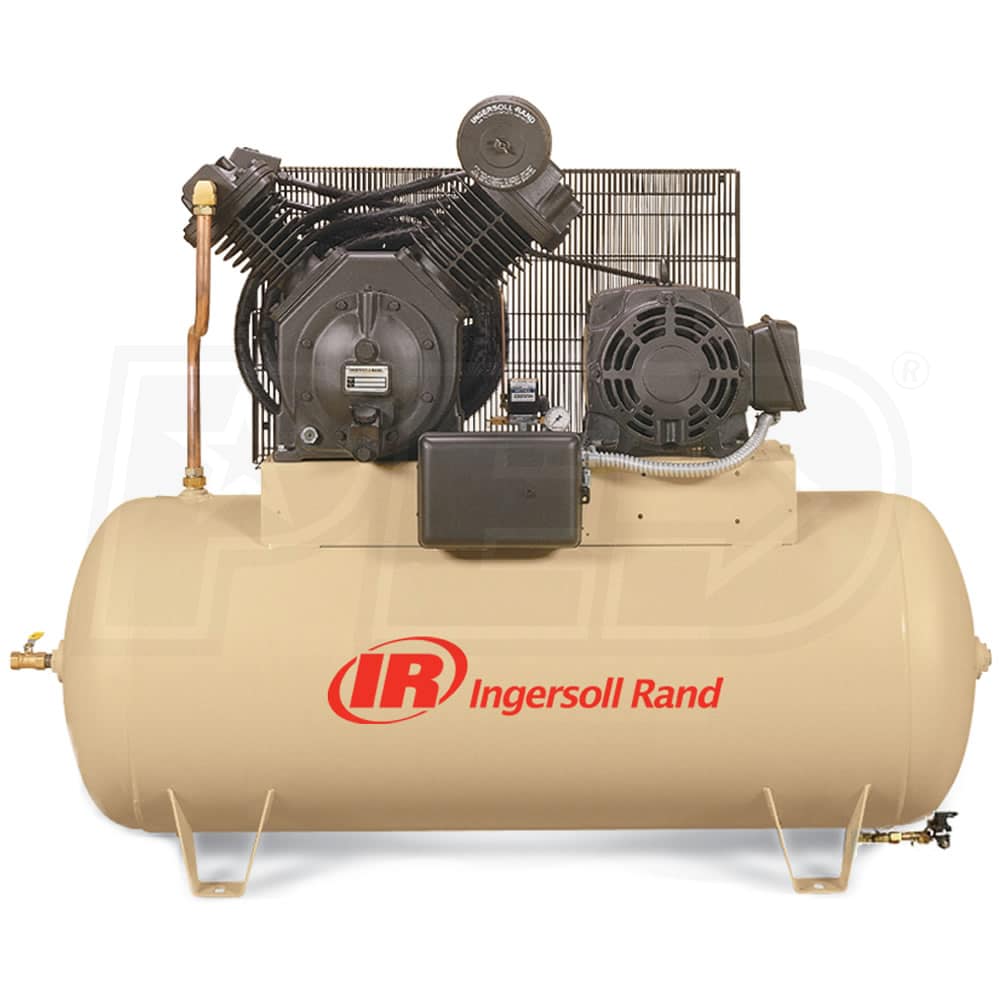

Ingersoll Rand 15-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase) Value Plus Package

Model:

7100E15VP-230

Write a Review
$4,578.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-3 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Ingersoll Rand 15-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase) Value Plus Package
Ingersoll Rand 15-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase) Value Plus Package
Model: 7100E15VP-230
$4,578.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Grade

Commercial

Style

Two Stage 3-Phase (230 Volts)

CFM

50

Tank Size

120



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Durable Cast Iron Design
  • Provides 100% duty operation
  • Precision Engineered Components
  • Deliver maximum performance & reliability

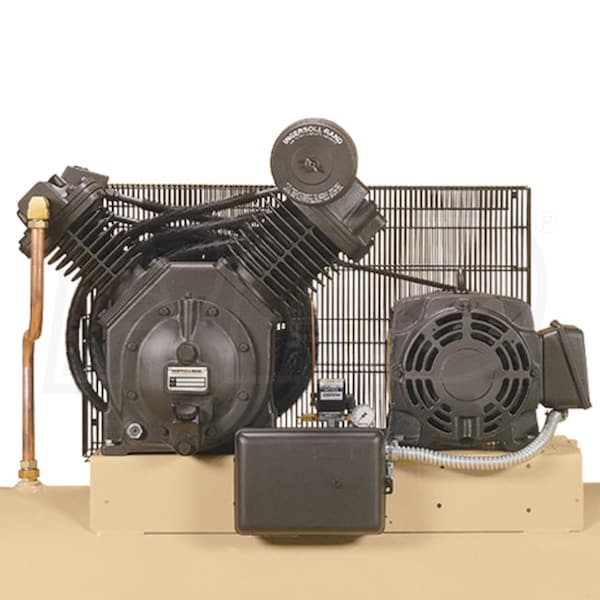

  • Individually Cast Cylinders & Overhung Crankshaft
  • One-piece connecting rod for easy maintenance & service
  • High efficiency finger valves provide consistent air delivery
  • Value Pro Package

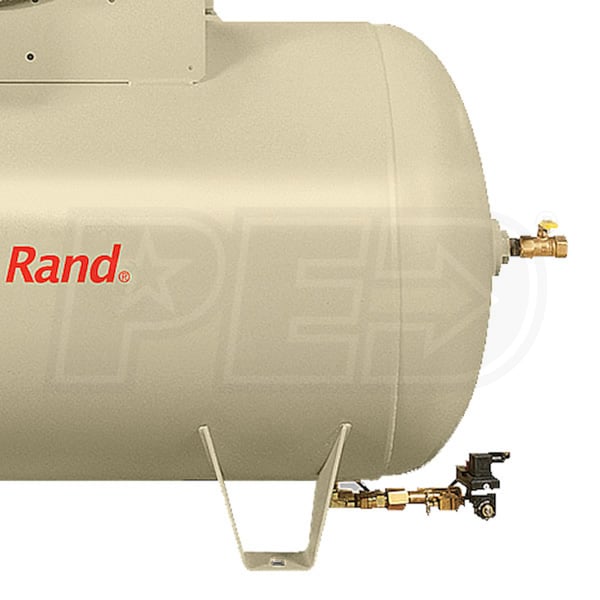

  • Electric drain keeps condensation to a minimum
  • Air cooled aftercooler for less line moisture
  • 175 PSIG Maximum Operating Pressure
  • Ideal for applications requiring high air capacity & pressure
  • 1 Year Factory Warranty
  • Extends to 2 years using IR All Season Select Synthetic lubricant
  • IR Start Up Kit Model: 32305898 must be added at time of air compressor purchase
  • Mounted Motor Starter Included
  • No need to purchase an additional starter
  • Vibration Isolators Sold Separately
  • IR Installation Kit also includes foundation bolts & hose
  • Extends tank warranty to 5 years when added at time of purchase
  • Ingersoll Rand Reciprocating Compressors Ship Dry
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

7100E15VP-230
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
42
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
50
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Weight
1297 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
83 Inches
Product Width
36 Inches
Product Height
65 Inches
Power Type
Electric
