Features
Grade
Consumer
Style
Hot Dog
CFM
2.2
Tank Size
1.5
- Pro Quiet Air Compressor Series
- 48 dBA @ 25ft is ideal for indoor use where noise is an issue
- LIfe expectancy more than 4x longer than most oil-free air compressors
- Powerful .75-HP (Running) Motor (1-HP Peak)
- Maintenance free induction motor
- Low 1725 RPM creates less noise & wear
- Oil-Free Dual Piston Pump System
- 2.8 CFM @ 40 PSI; 2.4 CFM @ 90 PSI; 125 PSI maximum
- Works in a variety of temperatures & uneven terrains
- 1.5-Gallon Air Tank
- Easy to transport & store at only 34 pounds
- Top Mounted Controls
- Dual gauges so you can check tank & tool pressure at a glance
- 1/4" air outlet with a quick connector for fast hose changes
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
IH1015OF-PQS
General Information
Product Category
Air Compressor - Portable
Engine
HP
.75
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
46
Amp Draw
6.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.2
CFM Rated @
100 PSI
CFM @ 40 PSI
2.8
CFM @ 90 PSI
2.4
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
1.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
34 Pounds
Product Length
14 Inches
Product Width
14.75 Inches
Product Height
13.75 Inches
Power Type
Electric
Reviews
(4)
Iron Horse IH1015OF-PQS Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

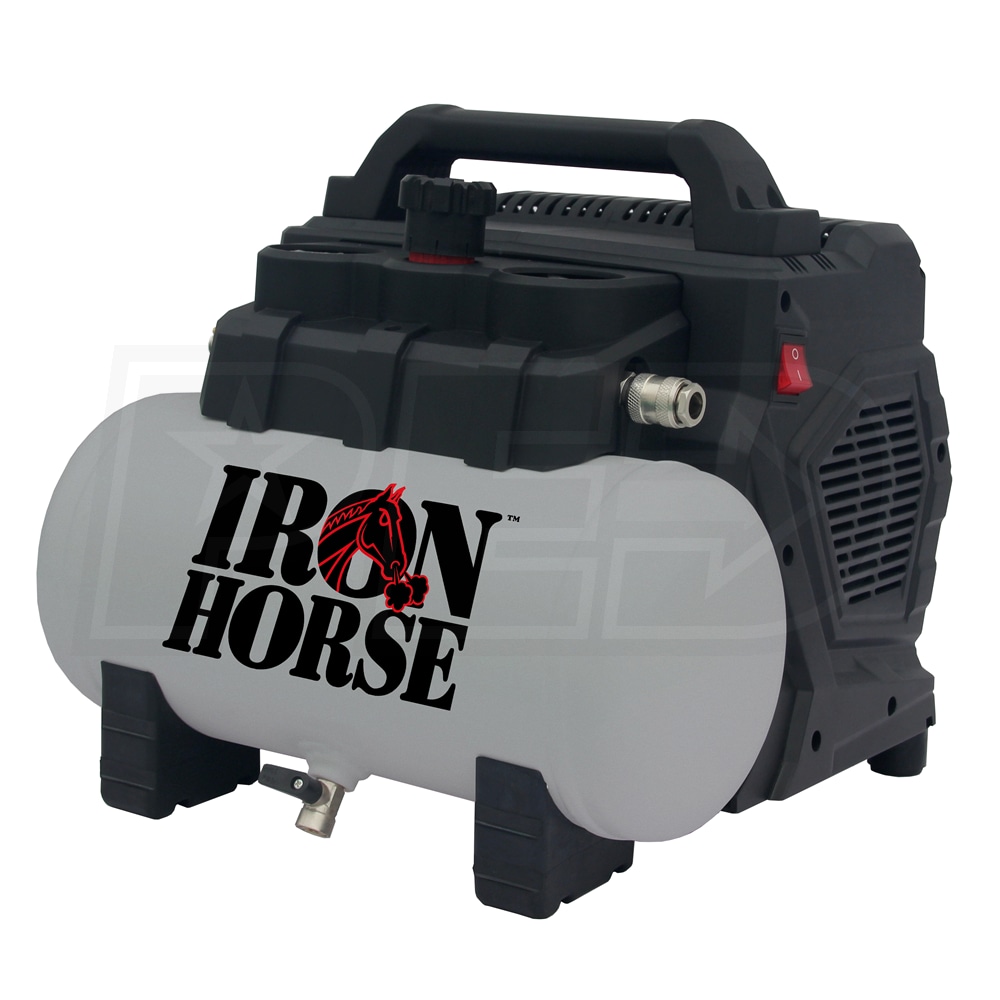

Iron Horse .75-HP 1.5-Gallon Hot Dog Air Compressor
