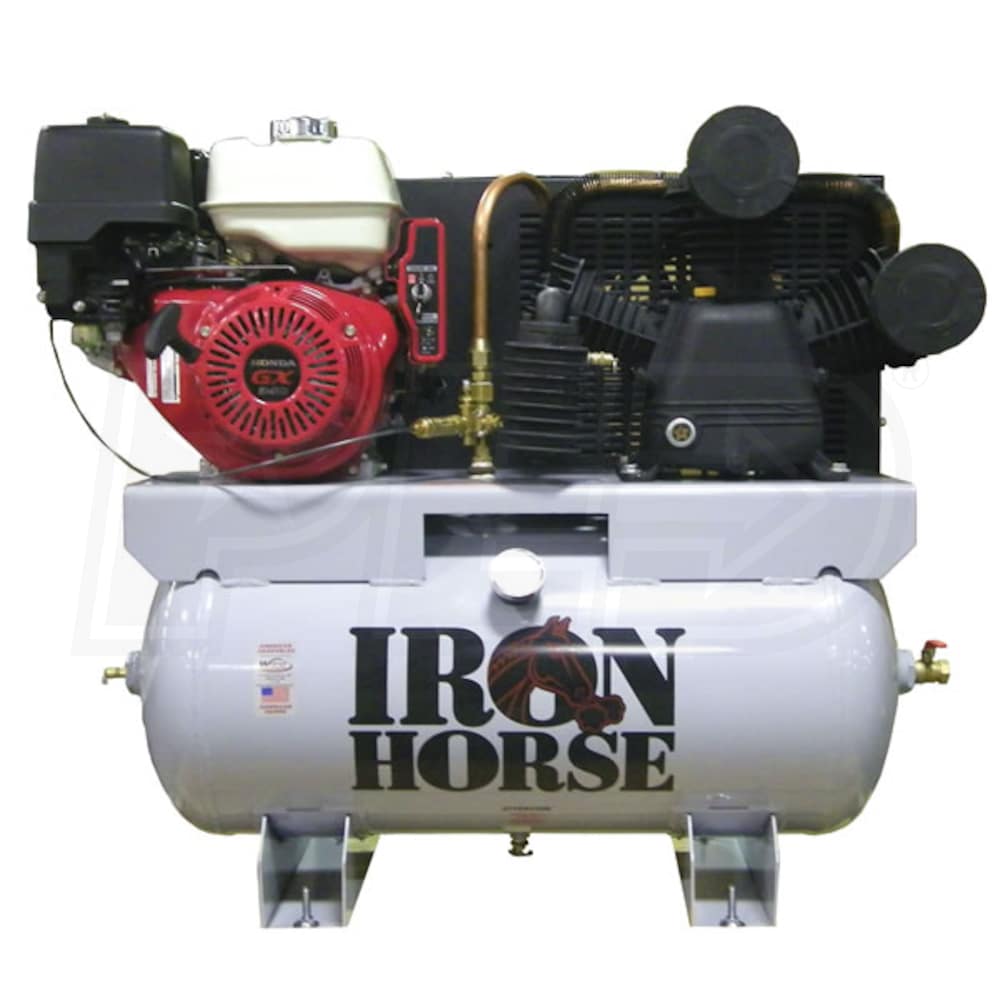

Iron Horse 11-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: IH11G30TRKE
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
CFM
22
CFM Rated @ 90 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
22 CFM Rated @ 90 PSI
Tank Size
30 Gallons
Features
Features
- Rugged Truck Mounted 2 Stage Unit Produces 22 CFM @ 90 PSI
- Designed for farm duty, hobbiest, and semi-pro jobs
- Sturdy and reliable air pressure wherever you need it
- Dependable 11-HP Honda GX340 Commercial Grade Engine
- Electric and manual start for ease of operation
- OHV design for increased efficiency & optimal power transfer
- Electric start for ease of operation (Battery & Cables Not Included)
- Rugged 3 Cylinder Cast Iron Pump
- High efficiency reed valves for maximum performance
- Built to work hard and last a long time
- Efficient heat removal from flywheel for cooler running
- "V" Style Design
- Minimizes vibration, improves cooling, extends compressor life
- Large bore pistons give the ability to run at less RPM
- Individual & Removable Cylinders
- Provide smoother & cooler operation
- Allows for easy maintenance
- Engine Idle Control
- Control and regulates the engine idle speed
- Reduces operating costs & excessive wear
- Large Air Filters With Automotive Drop-In Style Elements
- Extend compressor life, easy to maintain
- 30 Gallon ASME Tank
- Rated to 200 PSI for safety; heavy duty 3/4" ball valve included
- Convenient oil drain on front of unit
- Sturdy metal belt guard protects the belt & the user
- Easy View Oil Sight Gauge
- Monitor pump oil level at a glance
- Simplifies maintenance
Specifications
Engine
HP
11
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
No
Pump
CFM
22
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
328 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
44 Inches
Product Width
19 Inches
Product Height
37 Inches
Power Type
Gas
UPC
020791551192
Grade
Style
Engine Brand
CFM
22
CFM Rated @ 90 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
22 CFM Rated @ 90 PSI
Tank Size
30 Gallons
Features
Features
- Rugged Truck Mounted 2 Stage Unit Produces 22 CFM @ 90 PSI
- Designed for farm duty, hobbiest, and semi-pro jobs
- Sturdy and reliable air pressure wherever you need it
- Dependable 11-HP Honda GX340 Commercial Grade Engine
- Electric and manual start for ease of operation
- OHV design for increased efficiency & optimal power transfer
- Electric start for ease of operation (Battery & Cables Not Included)
- Rugged 3 Cylinder Cast Iron Pump
- High efficiency reed valves for maximum performance
- Built to work hard and last a long time
- Efficient heat removal from flywheel for cooler running
- "V" Style Design
- Minimizes vibration, improves cooling, extends compressor life
- Large bore pistons give the ability to run at less RPM
- Individual & Removable Cylinders
- Provide smoother & cooler operation
- Allows for easy maintenance
- Engine Idle Control
- Control and regulates the engine idle speed
- Reduces operating costs & excessive wear
- Large Air Filters With Automotive Drop-In Style Elements
- Extend compressor life, easy to maintain
- 30 Gallon ASME Tank
- Rated to 200 PSI for safety; heavy duty 3/4" ball valve included
- Convenient oil drain on front of unit
- Sturdy metal belt guard protects the belt & the user
- Easy View Oil Sight Gauge
- Monitor pump oil level at a glance
- Simplifies maintenance
Specifications
Engine
HP
11
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
No
Pump
CFM
22
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
328 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
44 Inches
Product Width
19 Inches
Product Height
37 Inches
Power Type
Gas
UPC
020791551192
Product Specs
+−
Specifications
Engine
HP
11
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
No
Pump
CFM
22
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
328 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
44 Inches
Product Width
19 Inches
Product Height
37 Inches
Power Type
Gas
UPC
020791551192
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
How do you adjust the air pressure on this compressor?
Randall N.
from Texas
September 21, 2019
Answer
For assistance in adjusting the pressure switch, please contact Iron Horse's technical support at 800-551-2406.
Was this answer helpful?
Yes
0
No
1
