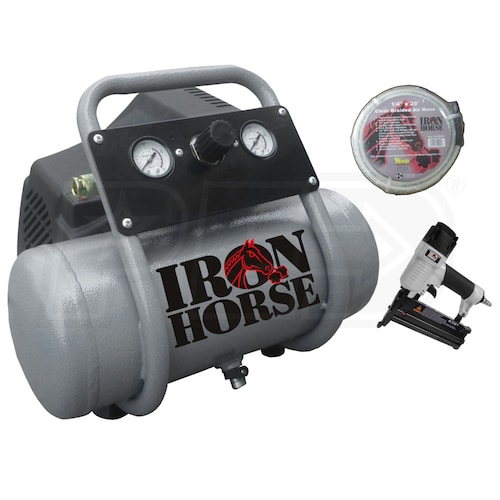

Iron Horse 1-HP 2-Gallon Oil-Free Hot Dog Compressor w/ 25' Air Hose & 2" Brad Nailer/Stapler Combo
Model:
IHHD102OF-NK2
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Hot Dog
CFM
2.3
Tank Size
1.5
- Oil-Free Hot Dog Compressor with Accessories
- Perfect for carrying around the house or in the car
- Top off tires, run air staplers, brad nailers & cleaning guns
- Powerful 1.5-HP Motor
- Maintenance free and oil-free motor
- Engineered for high performance and durability
- High Performance Oil-Free Pump
- 3.3 CFM @ 40 PSI; 2.3 CFM @ 90 PSI; 115 PSI Max
- Works in a variety of temperatures and uneven terrains
- 2.0-Gallon Air Tank
- Easy to transport & store at only 24 pounds
- Front access tank drain simplifies maintenance
- Top Mounted Controls
- 1/4" air outlet with a quick connector for fast hose changes
- Dual gauges so you can check tank and tool pressure at a glance
- 1/4" x 25-Ft. Clear Braided Hose
- Two transparent PVC layers, oil, and abrasion resistant
- Bound with braided nylon lines and is flexible & lightweight
- Burst Pressure: 1200 PSI and Working Pressure 300 PSI
- 2" Brad Nailer/Stapler Combo
- Non-marring safety contact and ergonomically engineered body
- Load either 18 ga. brads or staples household projects- moulding, crafts, etc.
- Adjustable depth settings, one piece driver blade system & 360° adjustable exhaust
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm, and Chromium (hexavalent compounds) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
IHHD102OF-NK2
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120 Volt AC
Phase
1-Phase
Engine
HP
1.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.3
CFM Rated @
90 PSI
CFM @ 40 PSI
3.3
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
115 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
1.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
24.2 Pounds
Consumer Warranty
1 Year
Product Length
16.14 Inches
Product Width
13.18 Inches
Product Height
13.77 Inches
Power Type
Electric
UPC
020791506376
