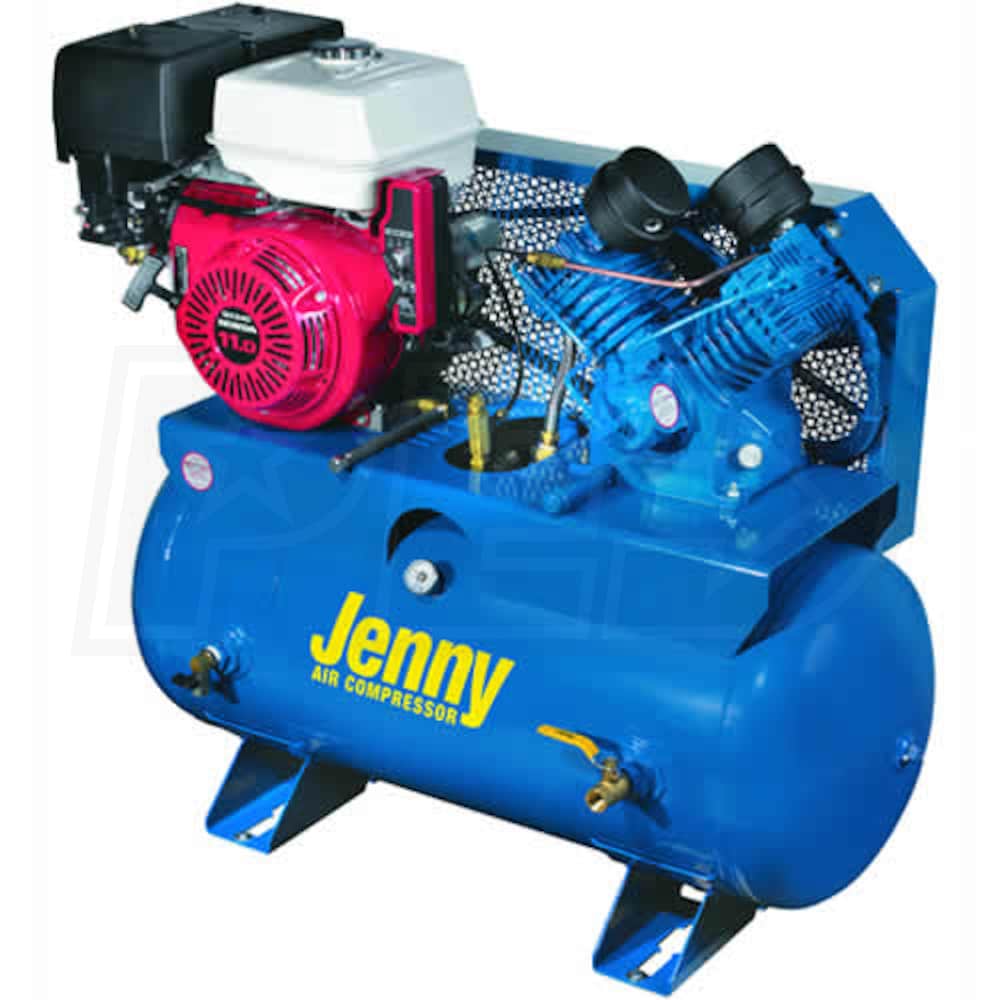

Jenny 11-HP 30-Gallon Truck-Mount Air Compressor w/ Electric Start Honda Engine
Model: G11HGA-30T
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

Engine Brand

CFM
18.3
CFM Rated @ 125 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
18.3 CFM Rated @ 125 PSI
Tank Size
30 Gallons
Features
Features
- 11-HP Honda GX Series OHV Engine
- Pneumatic throttle idle control
- Electric for ease of operation (Battery & Cables Not Included)
- Heavy-Duty Single Stage Cast Iron Pump
- Made in Somerset, PA USA
- Filled with "Jenny Ultimate Blue Synthetic Compressor Pump Oil"
- Belt Drive Design w/ Totally Enclosed Heavy-Duty Belt Guard
- Large flywheel for extra cooling and easier start-up
- Directional air shroud for reduced pump temperatures
- 30-Gallon Truck-Mount Horizontal Air Receiver
- Powder coated and ASME certified
- Large Canister Inlet Filter
- With replaceable filter elements for extended pump life
- Auto Start/Stop Control w/ Pressure Unloader
- Set at 105-125 PSI
- Added Features
- Protectively mounted fittings & manual tank drain
- Tank gauge & pressure relief safety valve
- Special unloading valves to assist in motor starting
- Stainless steel braided discharge hose
Specifications
Engine
HP
11
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
No
Pump
CFM
18.3
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
375 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
52 Inches
Product Width
27 Inches
Product Height
47 Inches
Power Type
Gas
UPC
885188005531
Additional Model Numbers
GC11HGA-30T, G11HGA-30T
Grade

Style

Engine Brand

CFM
18.3
CFM Rated @ 125 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
18.3 CFM Rated @ 125 PSI
Tank Size
30 Gallons
Features
Features
- 11-HP Honda GX Series OHV Engine
- Pneumatic throttle idle control
- Electric for ease of operation (Battery & Cables Not Included)
- Heavy-Duty Single Stage Cast Iron Pump
- Made in Somerset, PA USA
- Filled with "Jenny Ultimate Blue Synthetic Compressor Pump Oil"
- Belt Drive Design w/ Totally Enclosed Heavy-Duty Belt Guard
- Large flywheel for extra cooling and easier start-up
- Directional air shroud for reduced pump temperatures
- 30-Gallon Truck-Mount Horizontal Air Receiver
- Powder coated and ASME certified
- Large Canister Inlet Filter
- With replaceable filter elements for extended pump life
- Auto Start/Stop Control w/ Pressure Unloader
- Set at 105-125 PSI
- Added Features
- Protectively mounted fittings & manual tank drain
- Tank gauge & pressure relief safety valve
- Special unloading valves to assist in motor starting
- Stainless steel braided discharge hose
Specifications
Engine
HP
11
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
No
Pump
CFM
18.3
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
375 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
52 Inches
Product Width
27 Inches
Product Height
47 Inches
Power Type
Gas
UPC
885188005531
Additional Model Numbers
GC11HGA-30T, G11HGA-30T
Product Specs
+−
Specifications
Engine
HP
11
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
No
Pump
CFM
18.3
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
375 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
52 Inches
Product Width
27 Inches
Product Height
47 Inches
Power Type
Gas
UPC
885188005531
Additional Model Numbers
GC11HGA-30T, G11HGA-30T
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
What is the length and height of this unit?
Jim
from Pennsylvania
May 18, 2018
Answer
The unit is 45 inches in length, 20 inches in width, and 37 inches in height. If you have any other questions about this or other products from our website, don't hesitate to give us a call or check the spec sheet.
