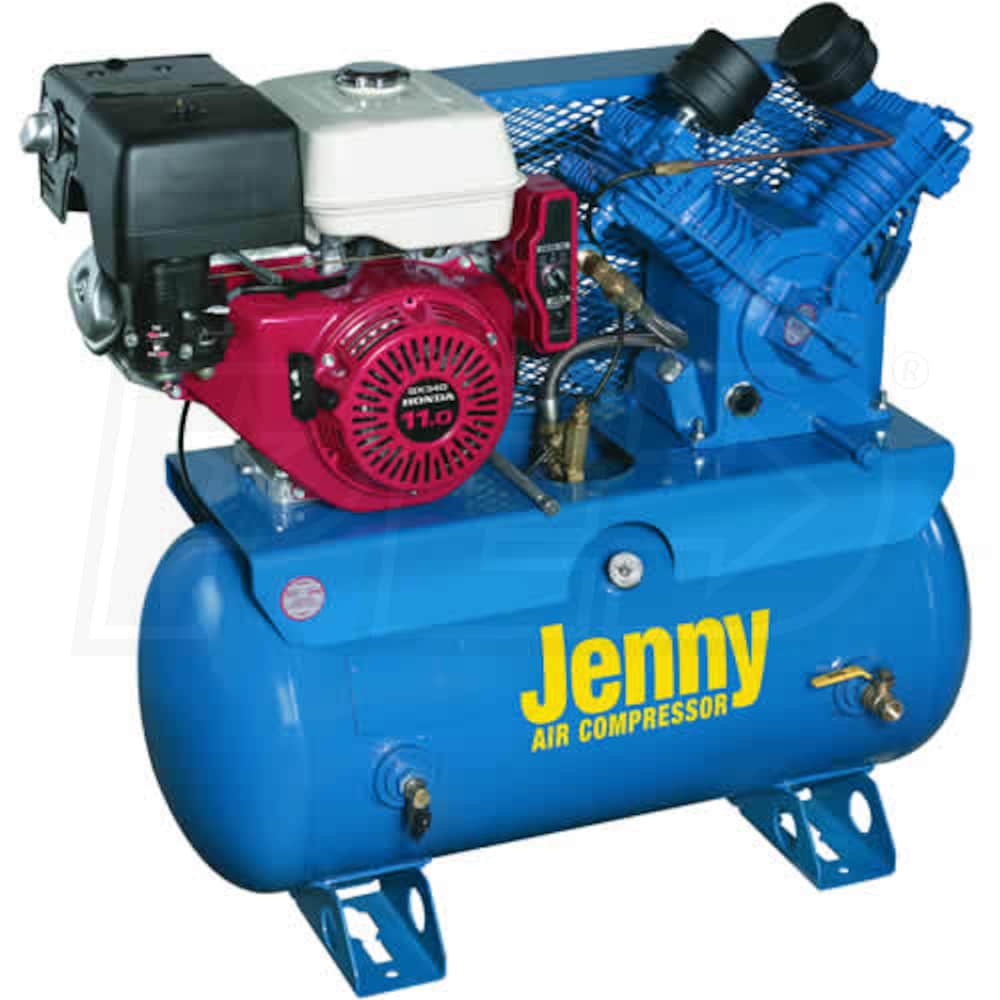

Jenny W11HGB-30T 11-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: W11HGB-30T
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

Engine Brand

CFM
17.6
CFM Rated @ 150 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
17.6 CFM Rated @ 150 PSI
Tank Size
30 Gallons
Features
Features
- 11-HP Honda GX Series OHV Engine
- Pneumatic throttle idle control
- Electric start for ease of operation (Battery & Cables Not Included)
- Heavy Duty Splash Lubricated Two Stage Cast Iron Pump
- Made in Somerset, PA USA
- Filled with "Jenny Ultimate Blue Synthetic Compressor Pump Oil"
- Belt Drive Design w/ Totally Enclosed Heavy-Duty Belt Guard
- Large flywheel for extra cooling and easier start-up
- Directional air shroud for reduced pump temperatures
- 30-Gallon Truck-Mount Horizontal Air Receiver
- Powder coated and ASME certified
- Large Canister Inlet Filter
- With replaceable filter elements for extended pump life
- Auto Start/Stop Control w/ Pressure Unloader
- Set at 145-175 PSI
- Added Features
- Protectively mounted fittings & manual tank drain
- Tank gauge & pressure relief safety valve
- Special unloading valves to assist in motor starting
- Stainless steel braided discharge hose
Specifications
Engine
HP
11
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
No
Pump
CFM
17.6
CFM Rated @
150 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
420 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
52 Inches
Product Width
27 Inches
Product Height
47 Inches
Power Type
Gas
UPC
885188005609
Grade

Style

Engine Brand

CFM
17.6
CFM Rated @ 150 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
17.6 CFM Rated @ 150 PSI
Tank Size
30 Gallons
Features
Features
- 11-HP Honda GX Series OHV Engine
- Pneumatic throttle idle control
- Electric start for ease of operation (Battery & Cables Not Included)
- Heavy Duty Splash Lubricated Two Stage Cast Iron Pump
- Made in Somerset, PA USA
- Filled with "Jenny Ultimate Blue Synthetic Compressor Pump Oil"
- Belt Drive Design w/ Totally Enclosed Heavy-Duty Belt Guard
- Large flywheel for extra cooling and easier start-up
- Directional air shroud for reduced pump temperatures
- 30-Gallon Truck-Mount Horizontal Air Receiver
- Powder coated and ASME certified
- Large Canister Inlet Filter
- With replaceable filter elements for extended pump life
- Auto Start/Stop Control w/ Pressure Unloader
- Set at 145-175 PSI
- Added Features
- Protectively mounted fittings & manual tank drain
- Tank gauge & pressure relief safety valve
- Special unloading valves to assist in motor starting
- Stainless steel braided discharge hose
Specifications
Engine
HP
11
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
No
Pump
CFM
17.6
CFM Rated @
150 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
420 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
52 Inches
Product Width
27 Inches
Product Height
47 Inches
Power Type
Gas
UPC
885188005609
Product Specs
+−
Specifications
Engine
HP
11
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
No
Pump
CFM
17.6
CFM Rated @
150 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
420 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
52 Inches
Product Width
27 Inches
Product Height
47 Inches
Power Type
Gas
UPC
885188005609
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Hi,
I wpu;d ;ike to know what is the main differrence a Solid Cast Iron pump will provide against a regular pump.
Johan Gacitua
from Massachusetts
April 17, 2011
Answer
Hello,
Sleeved cylinder pumps are less expensive to build but do not have the durability of cast iron cylinder pumps.
Regards,
Customer Service
Sleeved cylinder pumps are less expensive to build but do not have the durability of cast iron cylinder pumps.
Regards,
Customer Service
Was this answer helpful?
Yes

0
No

0
