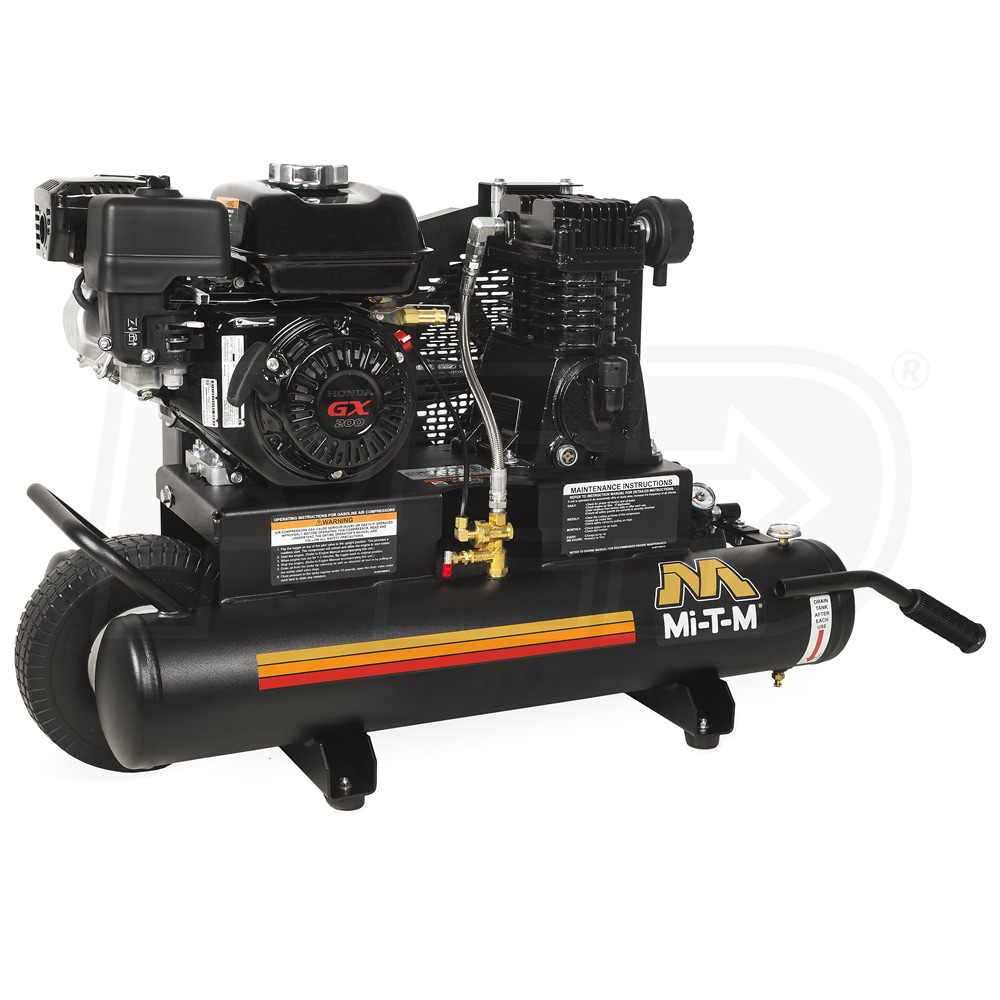

Mi-T-M 5.5-HP 8-Gallon Gas Wheelbarrow Air Compressor w/ Honda Engine
Model:
AM1-PH65-08M
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Wheel Barrow
Engine Brand
Honda GX
CFM
13.1
Tank Size
8
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Industrial 5.5 HP Honda OHV Engine For Construction Applications
- Quality pilot valve unloader and directional air shroud
- Pneumatic idle control conserves fuel
- Splash Lubricated Cast Iron Crankcase
- Rugged and long lasting; aluminum head dissipates heat
- 12" flywheel for extra cooling and longer life
- Belt Tightening System
- Pulls engine straight to ensure constant belt alignment
- 8 Gallon Powder Coated Twin Tanks
- Includes regulator and 2 gauges for tank and outlet pressure
- 7 gauge base plate reduces vibration; steel braid discharge hose
- Ergonmically Designed; Perfect For Use With Multiple Tools
- Convenient lifting handles
- Pneumatic tire with tube and steel hub can take on rough terrain
- Generous Warranty Program
- 3 year limited warranty on Honda engine
- 2 year limited pump exchange program
- 2 year limited warranty on tanks and frame
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
AM1-PH65-08M
General Information
Product Category
Air Compressor - Portable
Engine
HP
5.5
CC
196
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
No
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
13.1
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
8 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
175 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
44.5 Inches
Product Width
18.5 Inches
Product Height
26 Inches
Power Type
Gas
UPC
016977992163
