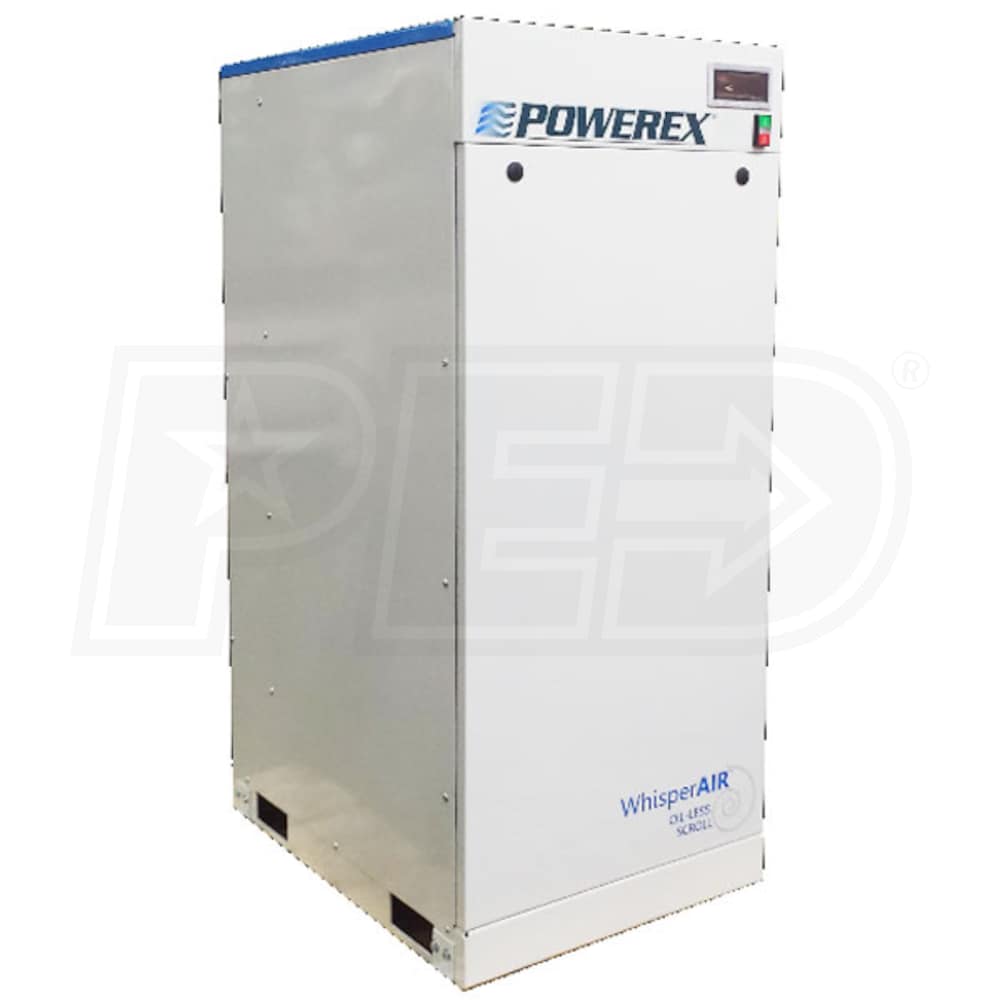

Powerex SED 5-HP / 10-HP 13-Gallon Duplex High Pressure Oil-Less Enclosed Scroll Air Compressor (460V 3-Phase 145 PSI)

Powerex SED 5-HP / 10-HP 13-Gallon Duplex High Pressure Oil-Less Enclosed Scroll Air Compressor (460V 3-Phase 145 PSI)
Model: SED10074HP
$14,799.00
Factory-Direct
Ships in 2-3 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$75.00
Factory-Direct
Ships in 2-3 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Scroll Compressors
CFM
25
CFM Rated @ 100 PSI
Tank Size
13
Gallons
Grade
Commercial
CFM
25 CFM Rated @ 100 PSI
Tank Size
13 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Completely Oil-Less, High Pressure Duplex 100% Duty Cycle Scroll Air Compressor (Not For Medical Use)
  • Two 5-HP pumps & motors with alternating controls for balanced unit wear & performance
  • Delivers completely clean, dry air ideal for manufacturing, pharmaceutical production, labs, etc.
  • WhisperAIR Sound Enclosure Cabinet
  • 53 dBA allows work near the compressor; about the same as a conversation
  • Rigid steel frame has powder-coated panels lined with sound-deadening insulation; vibration isolators reduce noise
  • Programmable, Touch-Screen Logic Controller
  • Operates compressor modules as needed to meet demand with one or both motor/pump compressors
  • Displays hours, high temp & motor overload alarms, run indication, & hours to scheduled maintenance for each module
  • Pressure settings are user adjustable within factory predetermined setting limits
  • Two 5-HP TEFC, NEMA Motors & Single Inlet Filtration With Replaceable Element
  • Compact footprint, energy efficient operation, low maintenance & environmentally friendly design

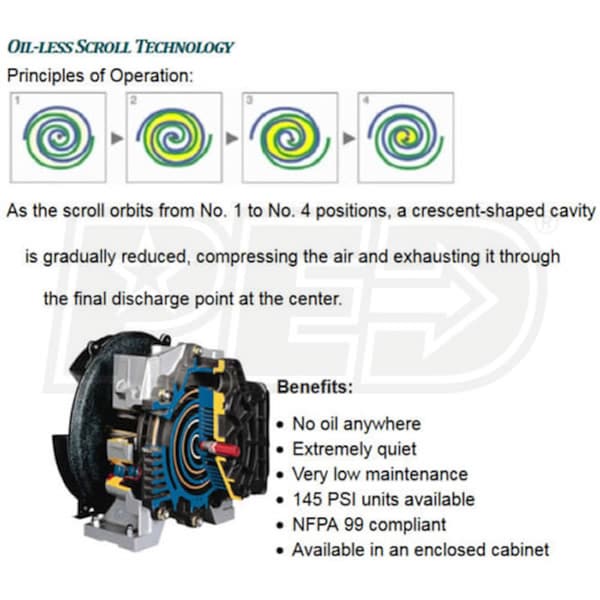

  • Integral Air-Cooled Aftercooler Design
  • Cools the compressed air, allowing water droplets to condense out of the air flow for drier air
  • Patented Tip Seal Design
  • Yields the highest flow rates and longevity of any other dry scroll compressor
  • 13 Gallon ASME Air Tank In The Enclosure
  • Rated to 175 PSI, 145 PSI maximum operating pressure with safety relief valve & manual tank drain
  • Limited Standard Factory Warranty Covers Defects In Materials & Workmanship
  • 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first. Premium Warranty extends to 2 years / 7,500 hours; available at time of purchase for an extra charge (see Accessories)
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
15
Recommended Breaker
Consult Certified Electrician
dBA
53
Engine
HP
10
Pump
CFM
25
CFM Rated @
100 PSI
Pump Type
Scroll Compressor
Max PSI
145 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
13 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Certification
UL, NEMA, ASME
Weight
825 Pounds
Product Length
26 Inches
Product Width
38 Inches
Product Height
61 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Grade
Commercial
Style
Scroll Compressors
CFM
25
CFM Rated @ 100 PSI
Tank Size
13
Gallons
Grade
Commercial
CFM
25 CFM Rated @ 100 PSI
Tank Size
13 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Completely Oil-Less, High Pressure Duplex 100% Duty Cycle Scroll Air Compressor (Not For Medical Use)
  • Two 5-HP pumps & motors with alternating controls for balanced unit wear & performance
  • Delivers completely clean, dry air ideal for manufacturing, pharmaceutical production, labs, etc.
  • WhisperAIR Sound Enclosure Cabinet
  • 53 dBA allows work near the compressor; about the same as a conversation
  • Rigid steel frame has powder-coated panels lined with sound-deadening insulation; vibration isolators reduce noise
  • Programmable, Touch-Screen Logic Controller
  • Operates compressor modules as needed to meet demand with one or both motor/pump compressors
  • Displays hours, high temp & motor overload alarms, run indication, & hours to scheduled maintenance for each module
  • Pressure settings are user adjustable within factory predetermined setting limits
  • Two 5-HP TEFC, NEMA Motors & Single Inlet Filtration With Replaceable Element
  • Compact footprint, energy efficient operation, low maintenance & environmentally friendly design
  • Integral Air-Cooled Aftercooler Design
  • Cools the compressed air, allowing water droplets to condense out of the air flow for drier air
  • Patented Tip Seal Design
  • Yields the highest flow rates and longevity of any other dry scroll compressor
  • 13 Gallon ASME Air Tank In The Enclosure
  • Rated to 175 PSI, 145 PSI maximum operating pressure with safety relief valve & manual tank drain
  • Limited Standard Factory Warranty Covers Defects In Materials & Workmanship
  • 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first. Premium Warranty extends to 2 years / 7,500 hours; available at time of purchase for an extra charge (see Accessories)
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Amp Draw
15
Recommended Breaker
Consult Certified Electrician
dBA
53
Engine
HP
10
Pump
CFM
25
CFM Rated @
100 PSI
Pump Type
Scroll Compressor
Max PSI
145 PSI
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
13 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Certification
UL, NEMA, ASME
Weight
825 Pounds
Product Length
26 Inches
Product Width
38 Inches
Product Height
61 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
