Powerex SEQ 20-HP 13-Gallon Quadplex Oil-Less Enclosed Scroll Air Compressor (208V 3-Phase 116 PSI)
Model: SEQ20072
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
60.8
CFM Rated @ 100 PSI
Tank Size
13
Gallons
Grade
Commercial
CFM
60.8 CFM Rated @ 100 PSI
Tank Size
13 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Completely Oil-Less, Quad-plex 100% Duty Cycle Scroll Air Compressor (Not For Medical Use)
- Four 5-HP pumps & motors with alternating controls for balanced unit wear & performance
- Delivers completely clean, dry air ideal for manufacturing, pharmaceutical production, labs, etc.
- WhisperAIR Sound Enclosure Cabinet
- 58 dBA allows work near the compressor; about the same as a conversation in a restaurant
- Rigid steel frame has powder-coated panels lined with sound-deadening insulation; vibration isolators reduce noise
- Programmable, Touch-Screen Logic Controller
- Operates compressor modules as needed to meet demand with one or more motor/pump compressors
- Displays hours, high temp & motor overload alarms, run indication, & hours to scheduled maintenance for each module
- Pressure settings are user adjustable within factory predetermined setting limits
- Four 5-HP TEFC, NEMA Motors & Single Inlet Filtration With Replaceable Element
- Compact footprint, energy efficient operation, low maintenance & environmentally friendly design
- Integral Air-Cooled Aftercooler Design
- Cools the compressed air, allowing water droplets to condense out of the air flow for drier air

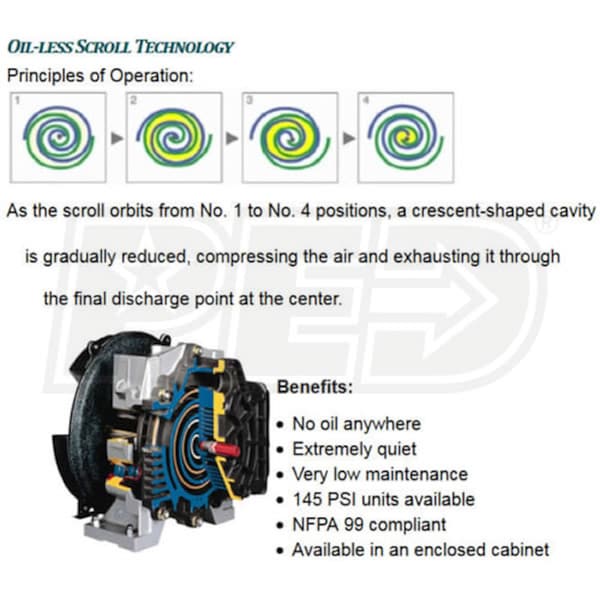

- Patented Tip Seal Design
- Yields the highest flow rates and longevity of any other dry scroll compressor
- 13 Gallon ASME Air Tank In The Enclosure
- Rated to 175 PSI, 116 PSI maximum operating pressure with safety relief valve & manual tank drain
- Limited Standard Factory Warranty Covers Defects In Materials & Workmanship
- 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first.
Specifications
Engine
HP
20
Motor
Voltage
208 Volt AC
Phase
3-Phase
dBA
58
Magnetic Starter
Yes
Amp Draw
59.6
Recommended Breaker
Consult Certified Electrician
Pump
CFM
60.8
CFM Rated @
100 PSI
Max PSI
116 PSI
Pump Type
Scroll Compressor
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
13 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
1125 Pounds
Certification
UL, NEMA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
61 Inches
