Features
Grade
Consumer
Style
Hot Dog
CFM
2.2
Tank Size
1.5
- 1.5 Gallon Tank
- Smaller tank size for easy storage and portability
- Oil Free And Low Maintenance
- No oil to add or change
- No belts or pulleys to replace
- Reliable Performance
- Die cast aluminum pump with cast iron cylinder sleeve
- Thermal overload protection
- Weighs Only 28 Lbs.
- Perfect for carrying around the house or in the car
- Versatile
- Delivers 3.0 CFM at 40 PSI; 2.2 CFM at 90 PSI
- Top off tires, run air staplers, brad nailers, & cleaning guns
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
LA5706
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
6.5
Engine
HP
1
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.2
CFM Rated @
90 PSI
CFM @ 40 PSI
3
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
1.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
33 Pounds
Certification
CSA
Consumer Warranty
1 Year
Product Length
19 Inches
Product Width
8 Inches
Product Height
18 Inches
Power Type
Electric
UPC
636084657061
Reviews
(7)
Puma LA5706 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Joshua, the Air Compressor Expert
What is the decibel rating of this Puma air compressor?
James
from Washington
May 12, 2023
How-To Articles
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
LA5706
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

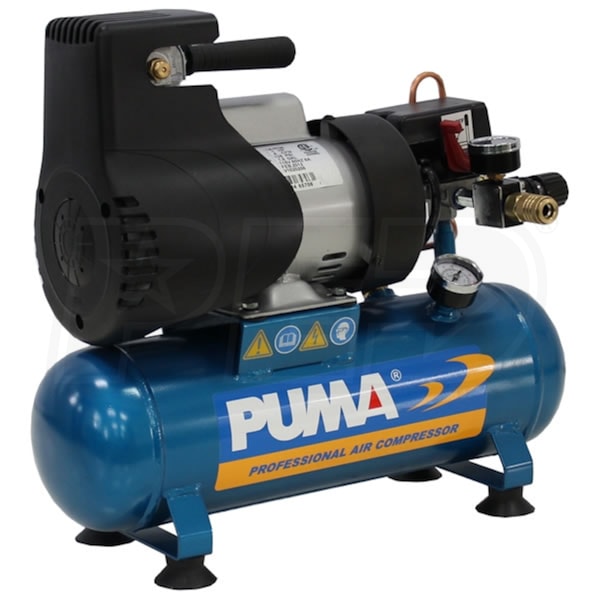

Puma 1-HP 1.5-Gallon (Direct Drive) Hot Dog Air Compressor
