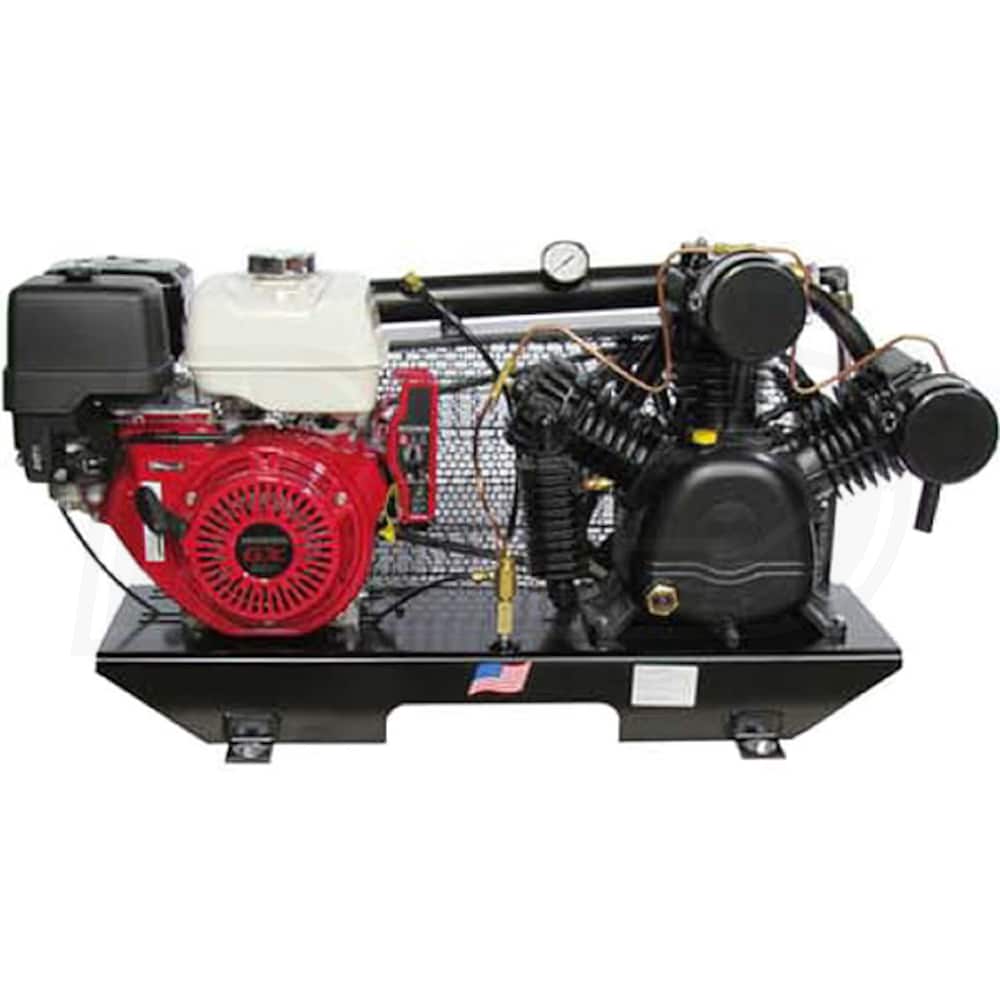

Puma 13-HP Tankless Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: TUK-130HGE
+
Share This Product
-
Product Description
-
7Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

Engine Brand

CFM
23
CFM Rated @ 175 PSI
Tank Size
0
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
23 CFM Rated @ 175 PSI
Tank Size
0 Gallons
Features
Features
- Tankless Truck-Mount Compressor On A Base Plate
- Add to your own tank or custom set-up
- 13-HP Commercial Grade GX390 Honda Engine
- Smooth running, dependable power with low-oil alert
- Electric Start With Alternator & Recoil Back-Up
- Simple key-start saves your shoulder (battery not included)

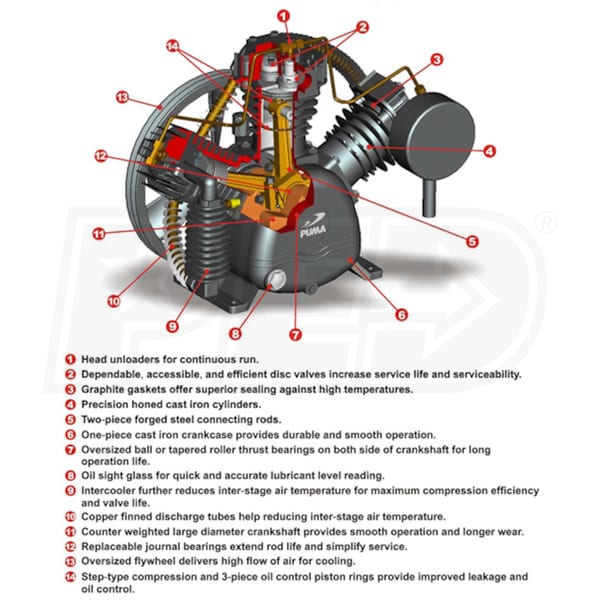

- Cast Iron 2-Stage Pump
- 100% duty cycle takes on the toughest jobs
- 3 cylinder radial configuration for balanced & effective cooling
- 1230 RPM Belt Drive
- Develops 24 CFM at 90 PSI, 23 CFM at 175 PSI; 175 PSI max
- Oversized flywheel delivers high flow for cooling
- Copper Finned Discharge Tubes
- Help reduce inter-stage air temperature for longer pump life
- Graphite Gaskets
- Superior sealing against high temperatures
- Steel Base Plate
- Mounting flanges allow sturdy mounting on your choice of base
- Resists rust & corrosion
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
23
CFM Rated @
175 PSI
CFM @ 90 PSI
24
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Weight
405 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
44.5 Inches
Product Width
17.5 Inches
Product Height
23 Inches
Power Type
Gas
UPC
636084025068
Grade

Style

Engine Brand

CFM
23
CFM Rated @ 175 PSI
Tank Size
0
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
23 CFM Rated @ 175 PSI
Tank Size
0 Gallons
Features
Features
- Tankless Truck-Mount Compressor On A Base Plate
- Add to your own tank or custom set-up
- 13-HP Commercial Grade GX390 Honda Engine
- Smooth running, dependable power with low-oil alert
- Electric Start With Alternator & Recoil Back-Up
- Simple key-start saves your shoulder (battery not included)
- Cast Iron 2-Stage Pump
- 100% duty cycle takes on the toughest jobs
- 3 cylinder radial configuration for balanced & effective cooling
- 1230 RPM Belt Drive
- Develops 24 CFM at 90 PSI, 23 CFM at 175 PSI; 175 PSI max
- Oversized flywheel delivers high flow for cooling
- Copper Finned Discharge Tubes
- Help reduce inter-stage air temperature for longer pump life
- Graphite Gaskets
- Superior sealing against high temperatures
- Steel Base Plate
- Mounting flanges allow sturdy mounting on your choice of base
- Resists rust & corrosion
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
23
CFM Rated @
175 PSI
CFM @ 90 PSI
24
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Weight
405 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
44.5 Inches
Product Width
17.5 Inches
Product Height
23 Inches
Power Type
Gas
UPC
636084025068
Product Specs
+−
Specifications
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
23
CFM Rated @
175 PSI
CFM @ 90 PSI
24
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Weight
405 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
44.5 Inches
Product Width
17.5 Inches
Product Height
23 Inches
Power Type
Gas
UPC
636084025068
