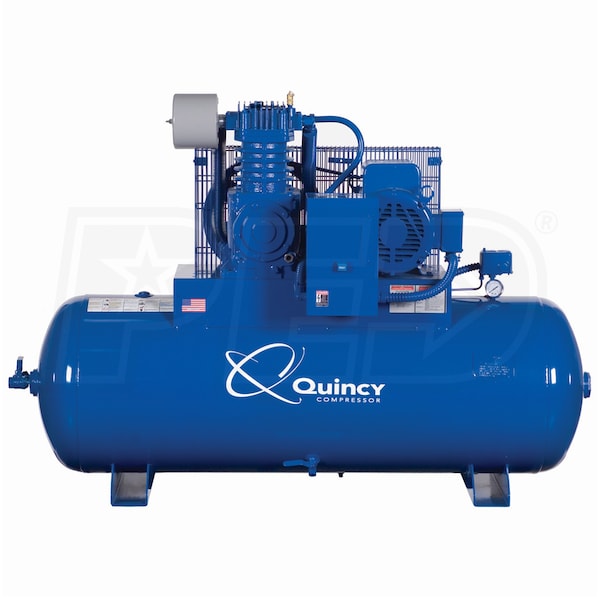

Quincy QT Pro 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

Quincy QT Pro 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Our Price
Compare Prices
Shipping Info
Model: 271CS80HCB23
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
$2,799.99

Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Add-Ons
+$35.00
Factory-Direct
Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 1-Phase
CFM
22.6
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.6 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
  • 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
  • Engineered for efficiency and lower operating costs
  • Produces more compressed air at a lower horsepower
  • American Pride; Proudly built in U.S.A.
  • High Performance Cast Iron QT-7.5 Belt Drive Pump
  • Industry-leading 50,000+ hour pump life
  • Aluminum head for strength and optimum heat dissipation
  • Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
  • 2-Cylinder Cast-Iron Design
  • Cast-iron cylinders maintain rigid tolerances for high efficiency
  • Industrial-class bearings ensure extended piston life
  • Graphite cylinder and head gaskets for positive sealing and improved performance
  • Large Balanced Cast Iron Fly Wheel
  • Smoother operation, angled for maximum cooling
  • Offers better energy efficiency and durability
  • Balanced counter-weighted crankshaft assures smooth, trouble-free operation
  • High-Efficiency Finned Tube Intercooler
  • Provides maximum cooling & increased valve life
  • Eliminates carbon build up in the head and increases valve life
  • 2-piece connecting rods for less moving parts & minimized downtime
  • Heavy-Duty Industrial Motor
  • Capacitor start motor with built-in thermal overload
  • Runs at a slower RPM, runs cooler and cost less to operate
  • UL & CSA approval on all electrical components
  • 80-Gallon ASME Certified Air Tank & Pressure Relief Valves
  • Manual drain for routine draining and rust prevention
  • 1-Year Factory Warranty - Extends To 3-Year “No Bull” Warranty
  • Must Include purchase of EWK-3 Maintenance Kit at time of purchase
  • Unit must be registered at www.quincycompressor.com
  • Download the Warranty page under the Specs tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020013707 - Quincy Model #: 271CS80HCB23
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
80 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
740 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
23 Inches
Product Height
47 Inches
Power Type
Electric
Grade
Commercial
Style
Two Stage 1-Phase
CFM
22.6
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.6 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
  • 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
  • Engineered for efficiency and lower operating costs
  • Produces more compressed air at a lower horsepower
  • American Pride; Proudly built in U.S.A.
  • High Performance Cast Iron QT-7.5 Belt Drive Pump
  • Industry-leading 50,000+ hour pump life
  • Aluminum head for strength and optimum heat dissipation
  • Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
  • 2-Cylinder Cast-Iron Design
  • Cast-iron cylinders maintain rigid tolerances for high efficiency
  • Industrial-class bearings ensure extended piston life
  • Graphite cylinder and head gaskets for positive sealing and improved performance
  • Large Balanced Cast Iron Fly Wheel
  • Smoother operation, angled for maximum cooling
  • Offers better energy efficiency and durability
  • Balanced counter-weighted crankshaft assures smooth, trouble-free operation
  • High-Efficiency Finned Tube Intercooler
  • Provides maximum cooling & increased valve life
  • Eliminates carbon build up in the head and increases valve life
  • 2-piece connecting rods for less moving parts & minimized downtime
  • Heavy-Duty Industrial Motor
  • Capacitor start motor with built-in thermal overload
  • Runs at a slower RPM, runs cooler and cost less to operate
  • UL & CSA approval on all electrical components
  • 80-Gallon ASME Certified Air Tank & Pressure Relief Valves
  • Manual drain for routine draining and rust prevention
  • 1-Year Factory Warranty - Extends To 3-Year “No Bull” Warranty
  • Must Include purchase of EWK-3 Maintenance Kit at time of purchase
  • Unit must be registered at www.quincycompressor.com
  • Download the Warranty page under the Specs tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020013707 - Quincy Model #: 271CS80HCB23
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
80 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
740 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
23 Inches
Product Height
47 Inches
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
80 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
740 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
23 Inches
Product Height
47 Inches
Power Type
Electric
