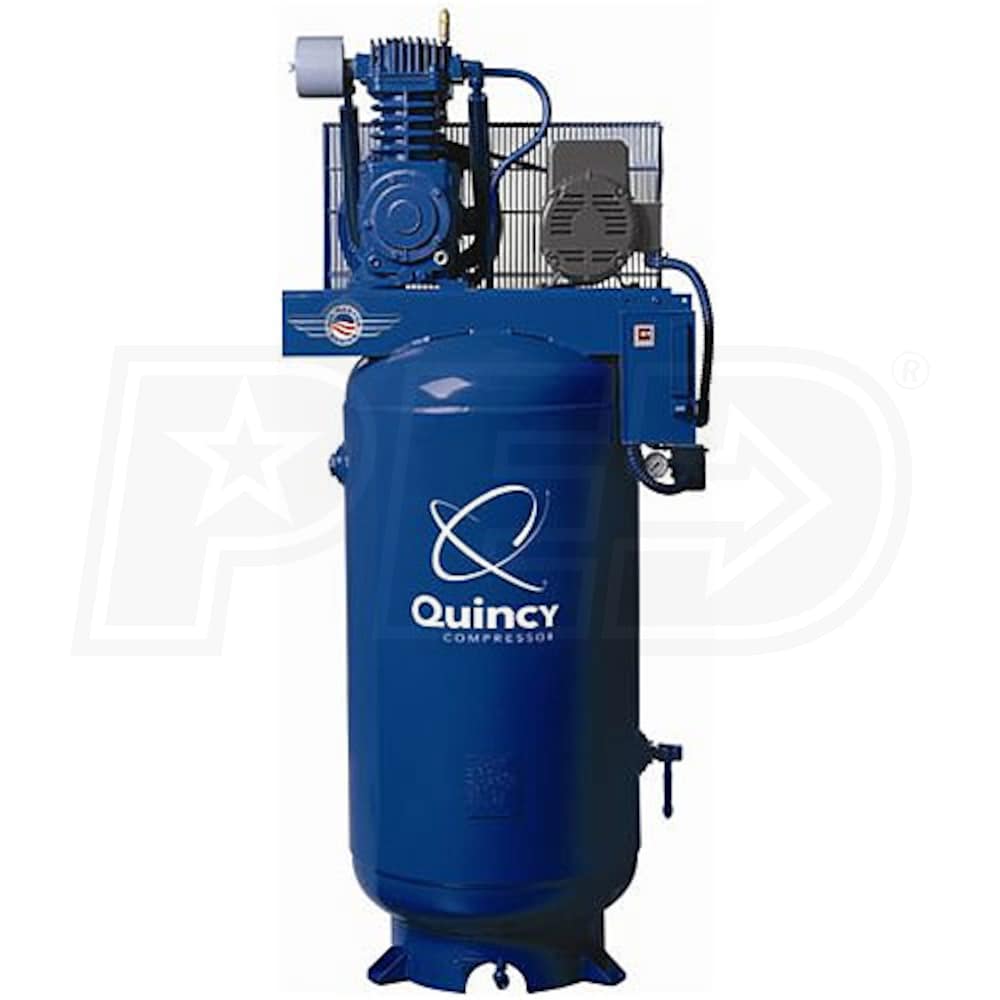

Quincy QT Pro 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model: 271CS80VCB23
+
Share This Product
-
Product Description
-
20Reviews
-
5Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
22.6
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.6 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
- 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
- Engineered for efficiency and lower operating costs
- Produces more compressed air at a lower horsepower
- American Pride; Proudly built in U.S.A.
- High Performance Cast Iron QT-7.5 Belt Drive Pump
- Industry-leading 50,000+ hour pump life
- Aluminum head for strength and optimum heat dissipation
- Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
- 2-Cylinder Cast-Iron Design
- Cast-iron cylinders maintain rigid tolerances for high efficiency
- Industrial-class bearings ensure extended piston life
- Graphite cylinder and head gaskets for positive sealing and improved performance
- Large Balanced Cast Iron Fly Wheel
- Smoother operation, angled for maximum cooling
- Offers better energy efficiency and durability
- Balanced counter-weighted crankshaft assures smooth, trouble-free operation
- High-Efficiency Finned Tube Intercooler
- Provides maximum cooling & increased valve life
- Eliminates carbon build up in the head and increases valve life
- 2-piece connecting rods for less moving parts & minimized downtime
- Heavy-Duty Industrial Motor
- Capacitor start motor with built-in thermal overload
- Runs at a slower RPM, runs cooler and cost less to operate
- UL & CSA approval on all electrical components
- 80-Gallon ASME Certified Air Tank & Pressure Relief Valves
- Manual drain for routine draining and rust prevention
- Vertical tank saves space, provides easy access
- 1-Year Factory Warranty - Extends To 3-Year “No Bull” Warranty
- Must Include purchase of EWK-3 Maintenance Kit at time of purchase
- Unit must be registered at www.quincycompressor.com
- Download the Warranty page under the Specs tab for details
- Extended warranty includes on-site and labor service
- Quincy Part #: 2020039807 - Quincy Model #: 271CS80VCB23
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
80 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
720 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
UPC
791326010940
Additional Model Numbers
271CS80VCB, 271CS80VCB23
Grade
Style
CFM
22.6
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.6 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
- 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
- Engineered for efficiency and lower operating costs
- Produces more compressed air at a lower horsepower
- American Pride; Proudly built in U.S.A.
- High Performance Cast Iron QT-7.5 Belt Drive Pump
- Industry-leading 50,000+ hour pump life
- Aluminum head for strength and optimum heat dissipation
- Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
- 2-Cylinder Cast-Iron Design
- Cast-iron cylinders maintain rigid tolerances for high efficiency
- Industrial-class bearings ensure extended piston life
- Graphite cylinder and head gaskets for positive sealing and improved performance
- Large Balanced Cast Iron Fly Wheel
- Smoother operation, angled for maximum cooling
- Offers better energy efficiency and durability
- Balanced counter-weighted crankshaft assures smooth, trouble-free operation
- High-Efficiency Finned Tube Intercooler
- Provides maximum cooling & increased valve life
- Eliminates carbon build up in the head and increases valve life
- 2-piece connecting rods for less moving parts & minimized downtime
- Heavy-Duty Industrial Motor
- Capacitor start motor with built-in thermal overload
- Runs at a slower RPM, runs cooler and cost less to operate
- UL & CSA approval on all electrical components
- 80-Gallon ASME Certified Air Tank & Pressure Relief Valves
- Manual drain for routine draining and rust prevention
- Vertical tank saves space, provides easy access
- 1-Year Factory Warranty - Extends To 3-Year “No Bull” Warranty
- Must Include purchase of EWK-3 Maintenance Kit at time of purchase
- Unit must be registered at www.quincycompressor.com
- Download the Warranty page under the Specs tab for details
- Extended warranty includes on-site and labor service
- Quincy Part #: 2020039807 - Quincy Model #: 271CS80VCB23
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
80 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
720 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
UPC
791326010940
Additional Model Numbers
271CS80VCB, 271CS80VCB23
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
40
Recommended Breaker
80 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
720 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
UPC
791326010940
Additional Model Numbers
271CS80VCB, 271CS80VCB23
Product Q&A
(5)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Is 175 the maximum pressure or is it capable of 180-200lbs.?
Bruce W.
from Kansas
March 27, 2020
Answer
175 PSI is the max pressure.
Was this answer helpful?
Yes
0
No
0
+−
How long does it take to fill the tank from zero pressure to cutoff pressure?
David
from Pennsylvania
January 30, 2020
Answer
About 5 and a half minutes.
Was this answer helpful?
Yes
0
No
0
+−
A 3410 RPM motor doesn't sound like a low RPM motor. Can I get a 1725 rpm motor?
Jim S.
from New Mexico
November 15, 2019
Answer
This has been updated. This unit has a 1750 RPM motor.
Was this answer helpful?
Yes
0
No
0
+−
Does this compressor require a starter?
Rickey Tauzin
from Louisiana
November 27, 2015
Answer
This unit comes with a magnetic starter. I'm sorry that's not showing on the Specs page at the moment- I'll work with our IT guru to get that detail put back in.
Was this answer helpful?
Yes
0
No
0
+−
the quincy 7.5 hp 80 gal calls for 80 amp bkr whEN the compressor is 40 amps THANKS
Henry Beale
from Massachusetts
October 16, 2015
Answer
Henry,
The reason for this is because the Amp Draw listed as 40 Amps is the "running" amps for this compressor. However, at start-up, the running amps increase significantly. This is called the "starting" amps. In this case, the starting amps increase to the point where the compressor requires an 80 AMP Breaker in order to handle the starting amps. We do not recommend using this compressor on a circuit with less than an 80 AMP Breaker.
The reason for this is because the Amp Draw listed as 40 Amps is the "running" amps for this compressor. However, at start-up, the running amps increase significantly. This is called the "starting" amps. In this case, the starting amps increase to the point where the compressor requires an 80 AMP Breaker in order to handle the starting amps. We do not recommend using this compressor on a circuit with less than an 80 AMP Breaker.
Was this answer helpful?
Yes
0
No
0
