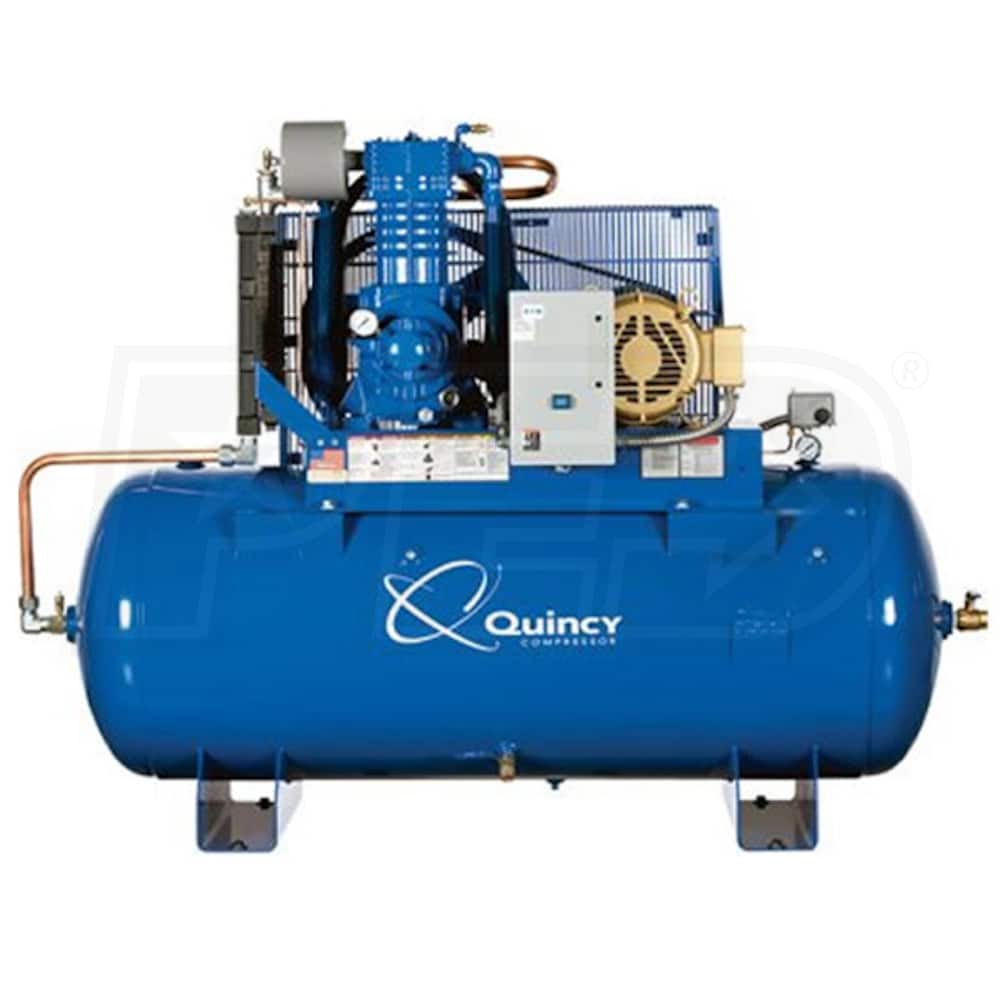

Quincy 10-HP 120-Gallon Pressure Lubricated Two-Stage QP Pro Air Compressor (230V 3-Phase)

Quincy 10-HP 120-Gallon Pressure Lubricated Two-Stage QP Pro Air Compressor (230V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: 3103DS12HCA23
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
$4,699.99

Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$35.00
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
35.9
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
35.9 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
  • Fully Pressure Lubricated 2-Stage Compressor
  • Allows smooth, continuous operation
  • Pressurized oil means less wear on critical components
  • Gerator Positive Displacement Oil Pump
  • Provides pressure lube to crankshaft, bearings, & rods
  • Up to 15% longer life than splash-lubricated units
  • Spin-On Oil Filter
  • Lengthens compressor life & improves reliability
  • Stainless Steel Reed Valves With Valve Bumpers
  • Maximum strength & volumetric efficiency
  • Graphite Cylinder & Head Gaskets
  • Provide positive sealing integrity
  • Electronically Balanced Fan-Type Cast Iron Flywheel
  • Delivers powerful cooling to intercooler, cylinder, & heads
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • Maintains rigid tolerances for high efficiency
  • Reduces interstage temperature for max performance & durability
  • One Year Factory Warranty
  • Extends with Quincy registration & kit listed under Specs tab
  • Built To Order: takes up to 10 business days to ship from Quincy
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Recommended Breaker
60 Amp Breaker
Engine
HP
10
Pump
CFM
35.9
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
850 Pounds
Product Length
78 Inches
Product Width
28 Inches
Product Height
55 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
UPC
791326030436
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
35.9
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
35.9 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Features
Features
  • Fully Pressure Lubricated 2-Stage Compressor
  • Allows smooth, continuous operation
  • Pressurized oil means less wear on critical components
  • Gerator Positive Displacement Oil Pump
  • Provides pressure lube to crankshaft, bearings, & rods
  • Up to 15% longer life than splash-lubricated units
  • Spin-On Oil Filter
  • Lengthens compressor life & improves reliability
  • Stainless Steel Reed Valves With Valve Bumpers
  • Maximum strength & volumetric efficiency
  • Graphite Cylinder & Head Gaskets
  • Provide positive sealing integrity
  • Electronically Balanced Fan-Type Cast Iron Flywheel
  • Delivers powerful cooling to intercooler, cylinder, & heads
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • Maintains rigid tolerances for high efficiency
  • Reduces interstage temperature for max performance & durability
  • One Year Factory Warranty
  • Extends with Quincy registration & kit listed under Specs tab
  • Built To Order: takes up to 10 business days to ship from Quincy
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Recommended Breaker
60 Amp Breaker
Engine
HP
10
Pump
CFM
35.9
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
850 Pounds
Product Length
78 Inches
Product Width
28 Inches
Product Height
55 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
UPC
791326030436
