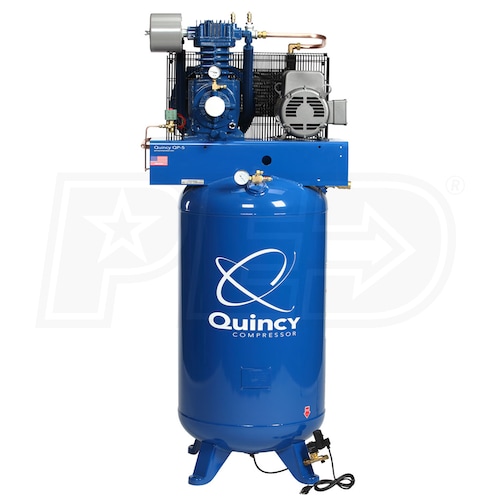

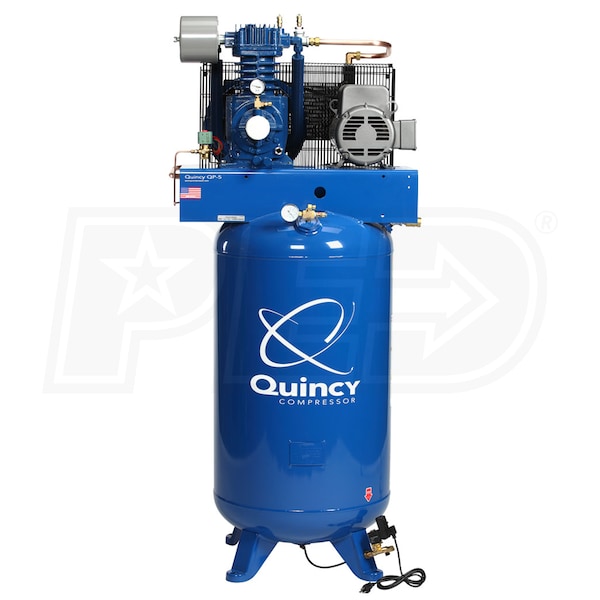

Quincy QP MAX 5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor (230V 1-Phase)

Model:

351C80VCB23M

Write a Review
$4,099.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability May 17, 2021
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Quincy QP MAX  5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor (230V 1-Phase)
Quincy QP MAX 5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor (230V 1-Phase)
Model: 351C80VCB23M
$4,099.99
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Grade

Commercial

Style

Two Stage 1-Phase

CFM

17.2

Tank Size

80

  • Fully Pressure Lubricated QP Pro Max Package 2-Stage Compressor
  • Pump life up to 60,000+ hours
  • 942 RPM industrial motor will continuously run your business
  • Electronic automatic tank drain keeps condensation to a minimum
  • Mounted air-cooled aftercooler extends pump life
  • Magnetic Starter provides thermal overload protection for the motor

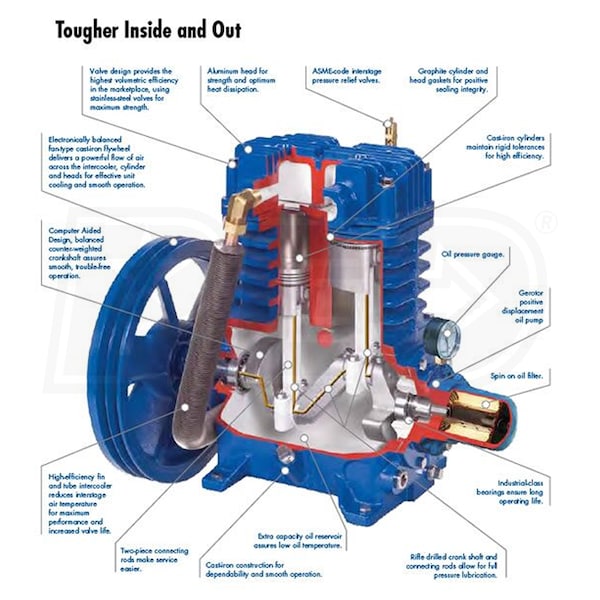

  • Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads
  • Graphite cylinder & head gaskets for positive sealing integrity
  • Continuous 100% duty cycle operation
  • Spin-On Oil filter
  • Lengthens compressor life & improves reliability
  • Low oil pressure switch shutdown for protection
  • Gerotor Positive Displacement Oil Pump
  • Provides pressure lube to crankshaft, bearings, & rods
  • Pressurized oil results in less wear on components
  • Stainless Steel Reed Valves With Valve Bumpers
  • Maximum strength & volumetric efficiency
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • Maintains rigid tolerances for high efficiency
  • Reduces interstage temperature for max performance & durability
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
  • Must Include purchase of EWK-3 Maintenance Kit at time of purchase
  • Unit must be registered at www.quincycompressor.com
  • Download the Warranty page under the Manual tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020039832 - Quincy Model #: 351C80VCB23M
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

351C80VCB23M
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
28
Recommended Breaker
60 Amp Breaker
Engine
HP
5
Pump
CFM
17.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
680 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
UPC
791326030047
