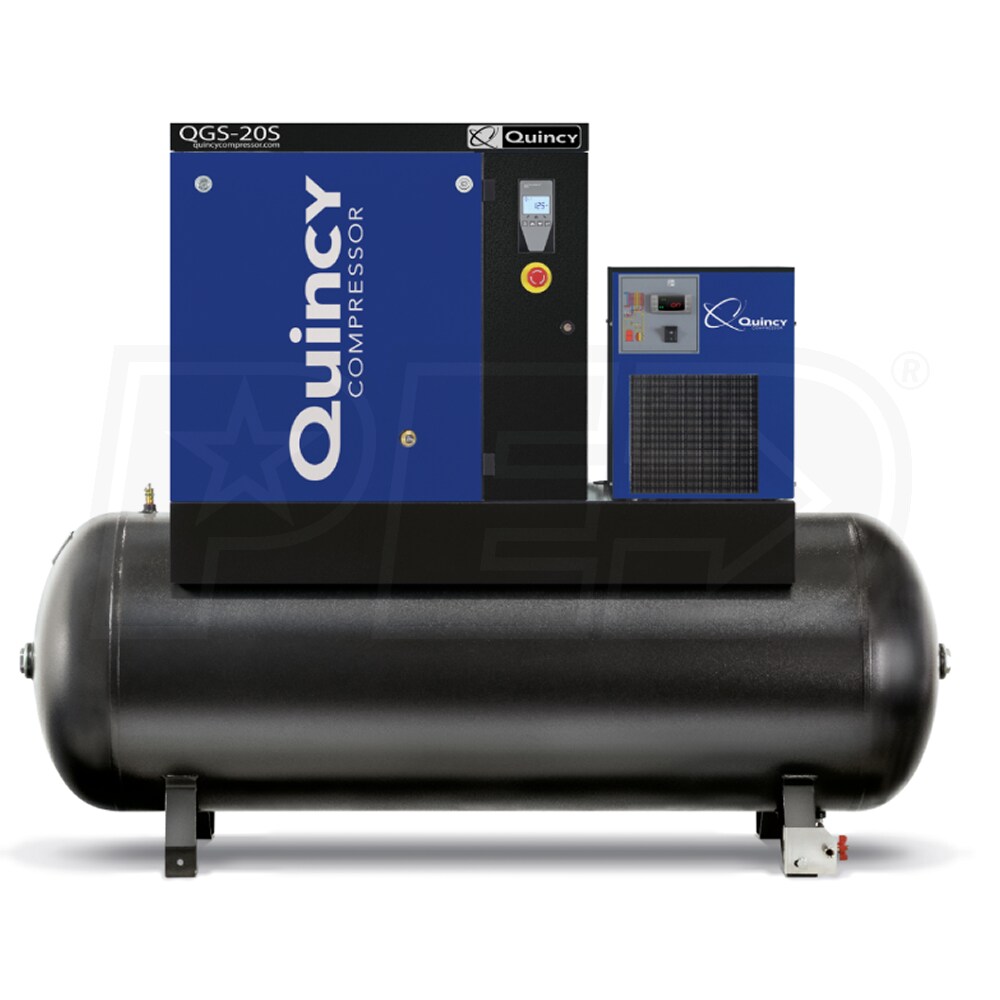

Quincy QGS 20-HP 120-Gallon Rotary Screw Compressor w/ Dryer (208/230/460V 3-Phase)
Quincy QGS 20-HP 120-Gallon Rotary Screw Compressor w/ Dryer (208/230/460V 3-Phase)
+
Share This Product
-
Product Description
-
Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
60.8
CFM Rated @ 125 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
60.8 CFM Rated @ 125 PSI
Tank Size
120 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Superior Compressed Air Turn-Key Performance
- Oil injected twin screw pump provides reliable, quiet power
- InfoLogic Microprocessor Control Functions
- Check compressor performance at a glance
- Network up to six QGS 20 to 30 HP units
- Includes auto run, general alarm & power-on LED's
- Pressure display, temperature & dewpoint display (36°F min temp)
- Motor start limit; max & min temperature default settings
- Integrated Refrigerated Air Dryer
- Condenses the air to remove airborne moisture, dirt, and oil
- Completely Programmable Auto Restart & Remote Start/Stop
- Wye-Delta reduced voltage start for industrial applications
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7; 60.8 CFM at 125 PSI
- Premium Synthetic Lubrication
- Rated for 8,000 hours; low oil carryover protects components
- TEFC Electric Motor (IP 55 Wash Down)
- 3-phase unit is capable of running on 208/230-460 voltage; must be wired on-site by a licensed electrician
- Extended 3 Year Factory Warranty Available
- Must register with Quincy & use Quincy Maintenance Kits
- True Blue 5-Year Warranty with Quincy Authorized Start Up
- Covers airend, motor, separator reservoir, cooler/heat exchanger
- Quincy Part #: 4152016773 - Quincy Model #: QGS 20 TMD-3
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Engine Low Oil Shut-off
Yes
Pump
CFM
60.8
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1021 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
73 Inches
Product Width
31 Inches
Product Height
48 Inches
Power Type
Electric
UPC
791326011718
Additional Model Numbers
4152016773, 4152026537
