RapidAir FastPipe 1-Inch Compressed Air Aluminum Piping System 235-Foot Master Kit (5 Outlets)

Model:

F28235

Write a Review
$1,049.99
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.

RapidAir FastPipe 1-Inch Compressed Air Aluminum Piping System 235-Foot Master Kit (5 Outlets)
RapidAir FastPipe 1-Inch Compressed Air Aluminum Piping System 235-Foot Master Kit (5 Outlets)
Model: F28235
$1,049.99
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Improved Compressed Air Piping Method
  • Connects to any existing piping system; can be easily expanded or modified
  • Conforms to ASME B31.1; fire resistant to flammability standard UL94HB; OSHA compliant
  • Varied Applications
  • Well suited to small shops, medium businesses, and industrial plants
  • Working pressure up to 190 PSI; handles 0°F to 140°F temperatures; compatible with compressor lubricants
  • Can be bent to a maximum of 15° to conform around minor obstacles; check local building codes before installation
  • Alloy 6063-T5 Aluminum Piping With Compression-Style Fittings
  • Compression fittings simplify installation- no glueing, threading or soldering
  • Aluminum piping is easy to cut and lift; installs in less time than some traditional methods
  • No corrosion in pipe or fittings means a longer tool life; cools hot compressed air quickly for better filter performance
  • Energy Efficient Powdercoat Outside; Clear Anodize Inside
  • Smooth inner wall & free-flowing fittings lower compressed air costs; sealed connections minimize leakage
  • When using FastPipe in direct sunlight, cover or paint the polymer fittings to protect from UV (pipe can be exposed)

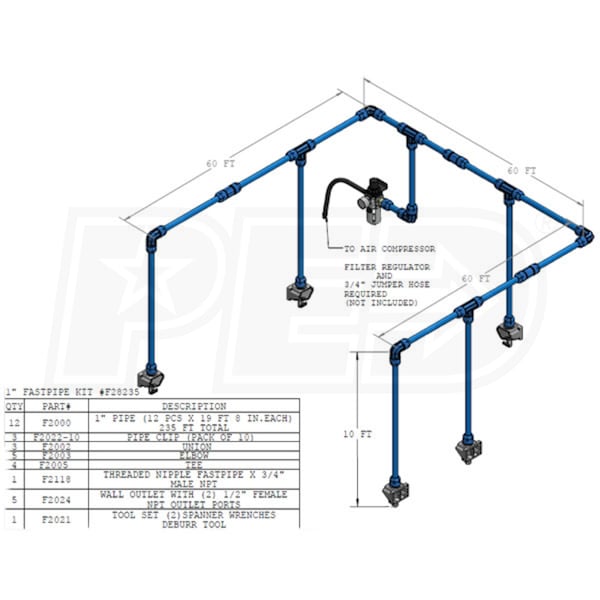

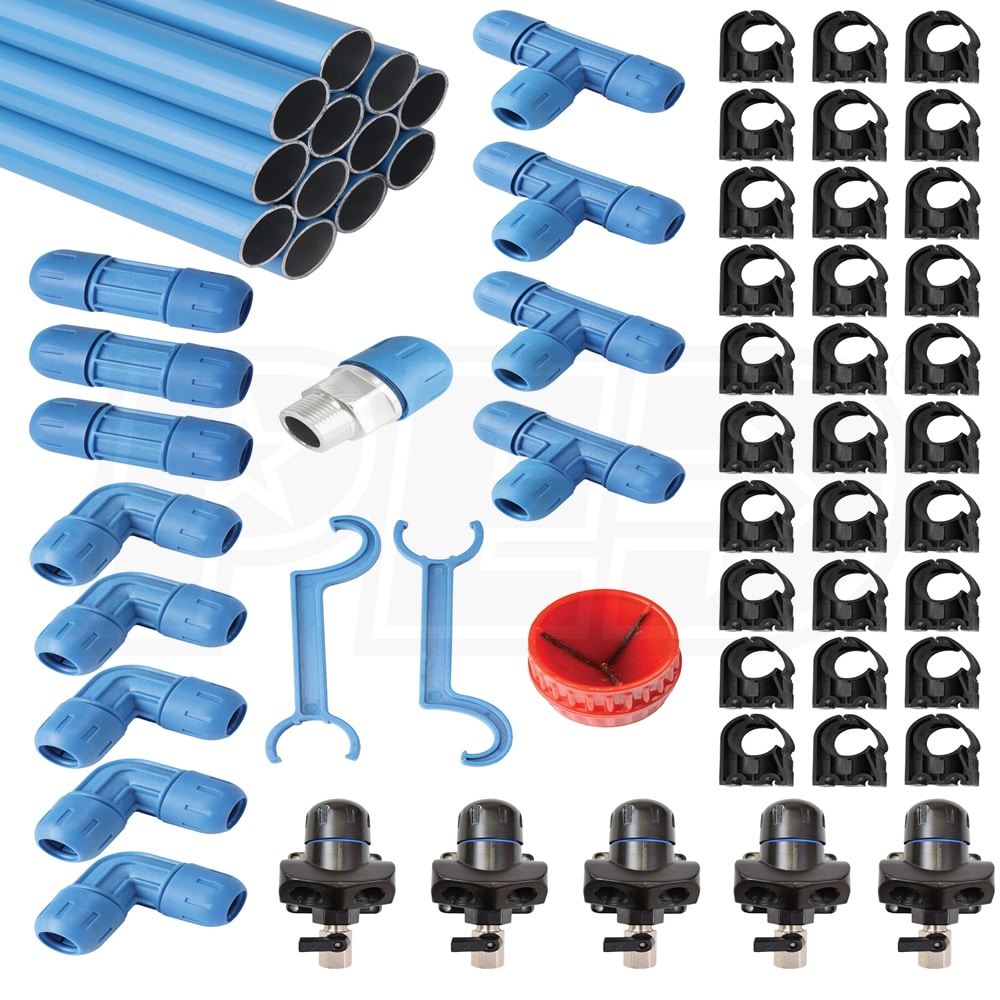

  • 1-Inch FastPipe 235-Foot Master Kit Includes:
  • 12 pieces of 1-inch pipe, each 19' 8" long for a total of 235 feet, with 30 pipe clips
  • 3 union connectors, 5 elbows, 4 tees, 5 wall outlets with two 1/2" female NPT outlet ports
  • 1 threaded nipple FastPipe x 3/4" male NPT connector; 1 tool set with 2 spanner wrenches & a deburring tool
  • Other installation fittings & accessories sold separately (see PDF brochure under the Specs tab)
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

F28235
Overview
Weight
70 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
236 Inches
Product Width
15 Inches
Product Height
17 Inches
UPC
094084282353
