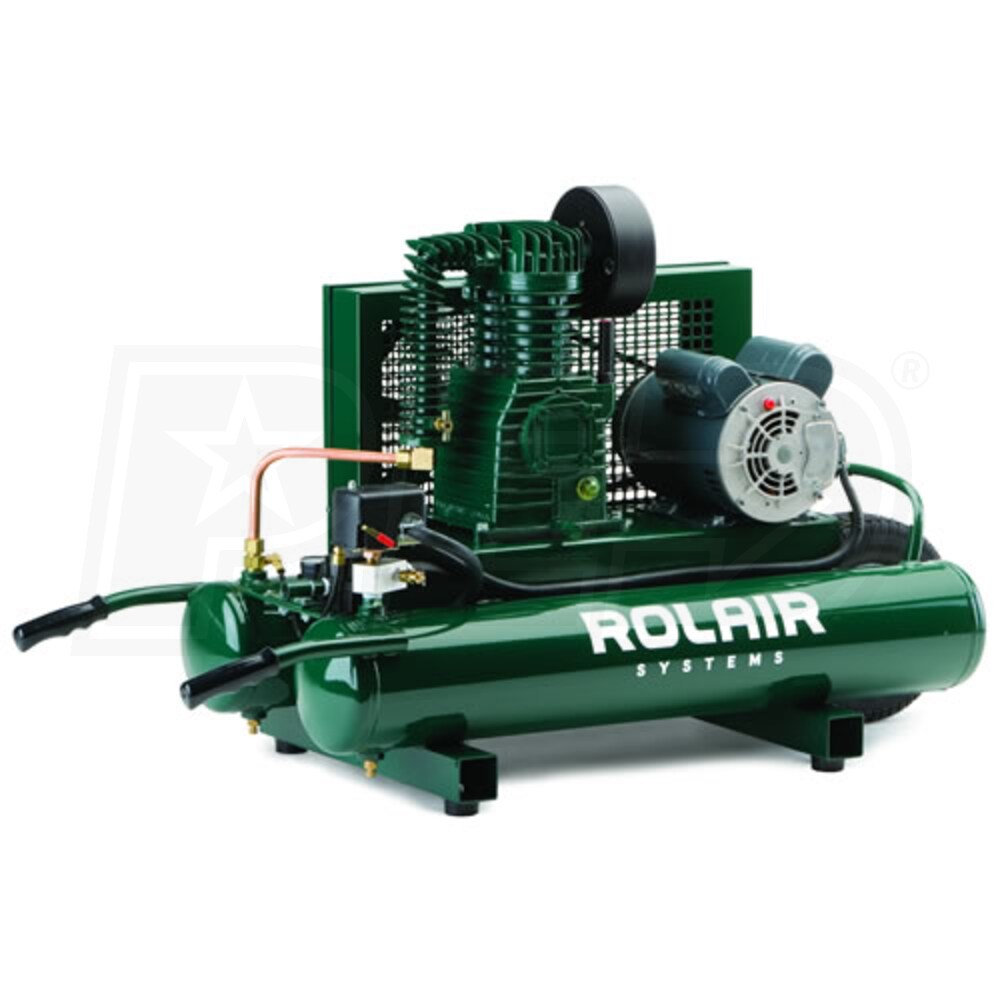

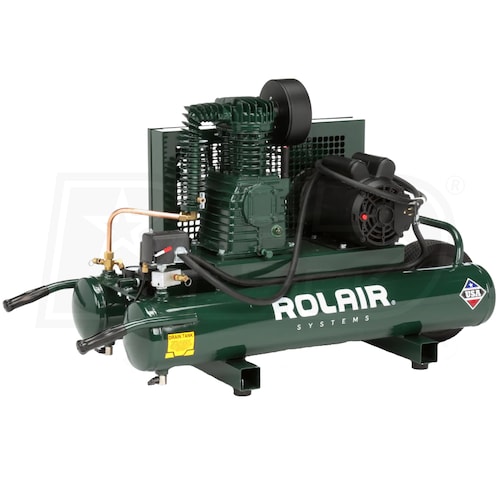

Rolair 1.5-HP 9-Gallon Electric Dual Voltage Wheelbarrow Air Compressor (115-230V 1-Phase)
Model: 5715K17
Recommended
4.1 out of 54.1 out of 54.1 out of 54.1 out of 54.1 out of 5
Number of Reviews(9)
Write a Review
$949.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States

Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Add an Extended Warranty
Excludes CA
Share
  • Product Description
  • 9
    Reviews
  • 3
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Contractor
Style
Wheel Barrow
CFM
6.9
CFM Rated @ 100 PSI
Tank Size
9
Gallons
Grade
Contractor
CFM
6.9 CFM Rated @ 100 PSI
Tank Size
9 Gallons
Features
Features
  • 1.5 HP 1755 RPM Dual Motor
  • Ball bearings provide greater durability
  • Heavy duty, industrial grade 115V/230V motor
  • Motor MUST be rewired for 230-V use
  • Contractor-Grade Single Stage Pump
  • Durable stainless reed valves & cast iron cylinder last longer
  • Ball bearings, filter/silencer, & splash lube run smooth & quiet
  • Overload Protected With Manual Reset
  • Protects the air compressor, lets you get back to work quickly
  • Portable & Powerful 95-125 PSI Operating Pressure
  • Puts out 6.9 CFM @ 100 PSI
  • Intake filter w/silencer & replaceable element for quiet running
  • Built-In Regulator With Gauge
  • Safety relief valve protects you in case of overload
  • 0-200 pounds in 5 lb. graduations for accurate air delivery
  • Air-cooled aftercooler for longer pump life
  • Totally Enclosed Steel Belt Guard
  • Protects during transport & use
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Engine
HP
1.5
Engine Low Oil Shut-off
No
Pump
CFM
6.9
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
9 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
174 Pounds
Consumer Warranty
1 Year
Product Length
46 Inches
Product Width
19 Inches
Product Height
28 Inches
Power Type
Electric
UPC
662865268256
Grade
Contractor
Style
Wheel Barrow
CFM
6.9
CFM Rated @ 100 PSI
Tank Size
9
Gallons
Grade
Contractor
CFM
6.9 CFM Rated @ 100 PSI
Tank Size
9 Gallons
Features
Features
  • 1.5 HP 1755 RPM Dual Motor
  • Ball bearings provide greater durability
  • Heavy duty, industrial grade 115V/230V motor
  • Motor MUST be rewired for 230-V use
  • Contractor-Grade Single Stage Pump
  • Durable stainless reed valves & cast iron cylinder last longer
  • Ball bearings, filter/silencer, & splash lube run smooth & quiet
  • Overload Protected With Manual Reset
  • Protects the air compressor, lets you get back to work quickly
  • Portable & Powerful 95-125 PSI Operating Pressure
  • Puts out 6.9 CFM @ 100 PSI
  • Intake filter w/silencer & replaceable element for quiet running
  • Built-In Regulator With Gauge
  • Safety relief valve protects you in case of overload
  • 0-200 pounds in 5 lb. graduations for accurate air delivery
  • Air-cooled aftercooler for longer pump life
  • Totally Enclosed Steel Belt Guard
  • Protects during transport & use
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Engine
HP
1.5
Engine Low Oil Shut-off
No
Pump
CFM
6.9
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
9 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
174 Pounds
Consumer Warranty
1 Year
Product Length
46 Inches
Product Width
19 Inches
Product Height
28 Inches
Power Type
Electric
UPC
662865268256
Product Specs
+
Specifications
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Engine
HP
1.5
Engine Low Oil Shut-off
No
Pump
CFM
6.9
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
9 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
174 Pounds
Consumer Warranty
1 Year
Product Length
46 Inches
Product Width
19 Inches
Product Height
28 Inches
Power Type
Electric
UPC
662865268256
Reviews
(9)
+
Rolair 5715K17 Reviews & Ratings
Product Q&A
(3)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
What size is the shaft that the pulley is mounted to?
Jason W.
from Kansas
October 07, 2019
Answer
The motor shaft is 7/8" (.875").
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
What kind of fitting do I use for the 1/2 connector?
Shawn A.
from California
September 28, 2019
Answer
This unit has a 3/8" port. Therefore you will need 3/8" male threads on one end to thread into the port on the compressor.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
how many running watts and starting watts does it take to run
Chris Handel
from Wisconsin
July 05, 2016
Answer
Unfortunately, we do not have that info. Please contact ROLAIR @ 920-349-3281 for additional assistance.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
