Features
Grade
Contractor
Style
Hot Dog
CFM
4
Tank Size
2.15
- Industrial Grade Splash Lubricated Air Compressor
- Low 79dBa allows for quiet operation when working
- Perfect for powering air nailers, brad nailers to install trim, complete furniture upholstery projects and more
- Heavy-Duty 1.5 HP 3400 RPM Motor
- 115V motor stands up to frequent use with low amp draw
- Ball bearings provide greater durability with high demand
- Single Stage Cast-Iron Cylinder Pump
- Filter, silencer and splash lube help unit run smooth and quiet
- Durable stainless reed valves & cast iron cylinder ensures longer life
- Overload Protection With Manual Reset
- Protects the air compressor, lets you get back to work quickly
- Includes pressure switch with On/Off lever for maximum protection
- Safety relief valve controls and limits the pressure build-up in the system
- Powerful 95-125 PSI Operating Pressure
- Puts out 4.24 CFM @ 40 PSI; 4.0 CFM @ 90 PSI
- Provides faster recovery time and more CFM production
- 2.15-Gallon Air Tank
- Lightweight & compact design is easy to carry and store
- Quick-opening tank drain for easy maintenance
- Built-In Regulator With Gauge
- Tank & tool pressure gauges can be checked at a glance
- Adjust the airline pressure accurately for peak tool performance
- Factory Tested
- 6 oz. crankcase is pre-filled with oil; arrives ready to work
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
FC1500HS3
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
79
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
13.5
Engine
HP
1.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4
CFM Rated @
90 PSI
CFM @ 40 PSI
4.24
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
2.15 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
39 Pounds
Consumer Warranty
1 Year
Product Length
20 Inches
Product Width
9 Inches
Product Height
18 Inches
Power Type
Electric
UPC
662865414509
Reviews
(3)
Rolair FC1500HS3 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

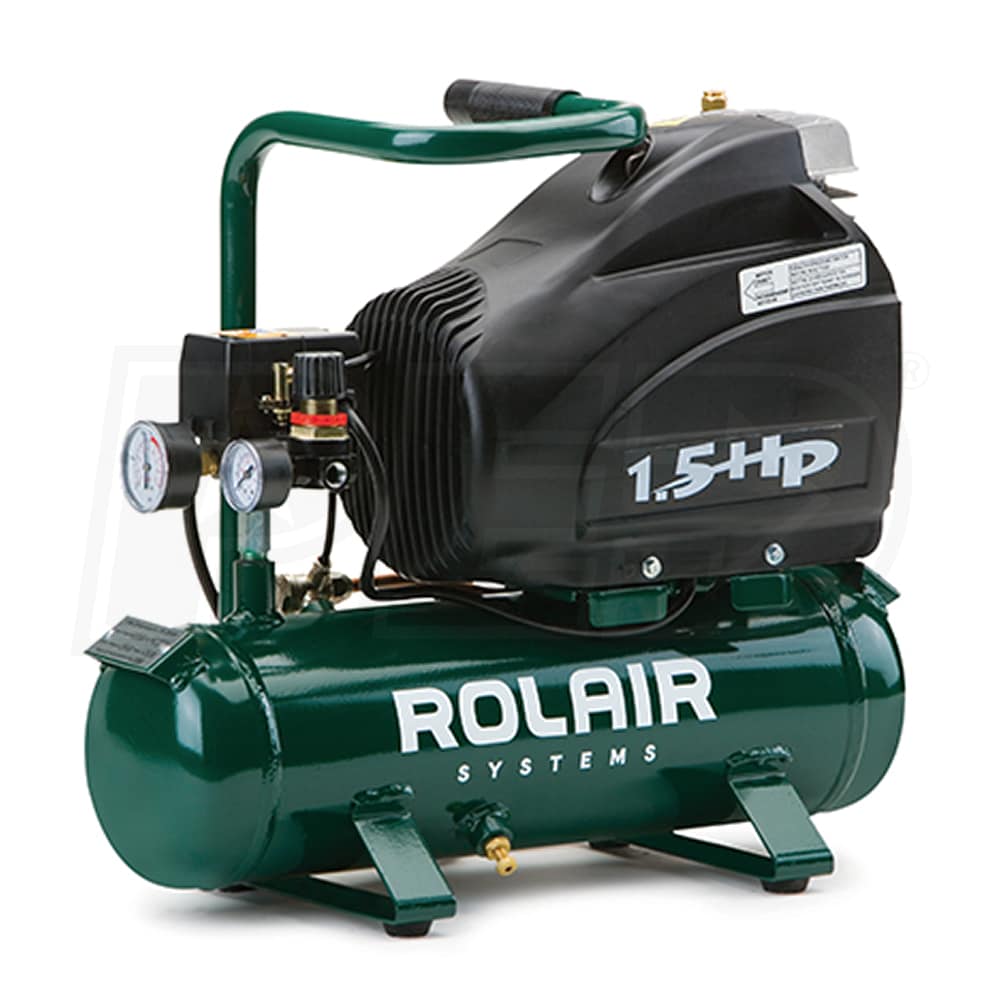

Rolair 1.5-HP 2.15-Gallon Professional Hot Dog Air Compressor
