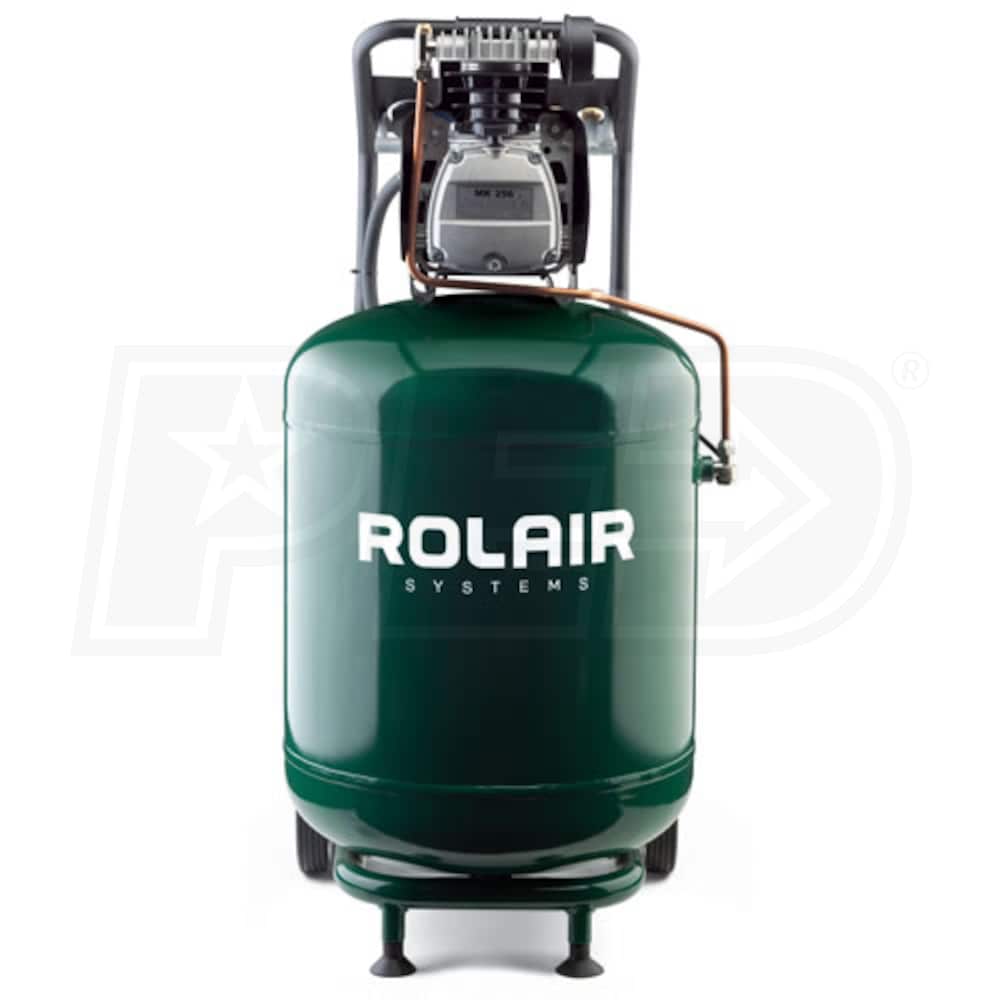

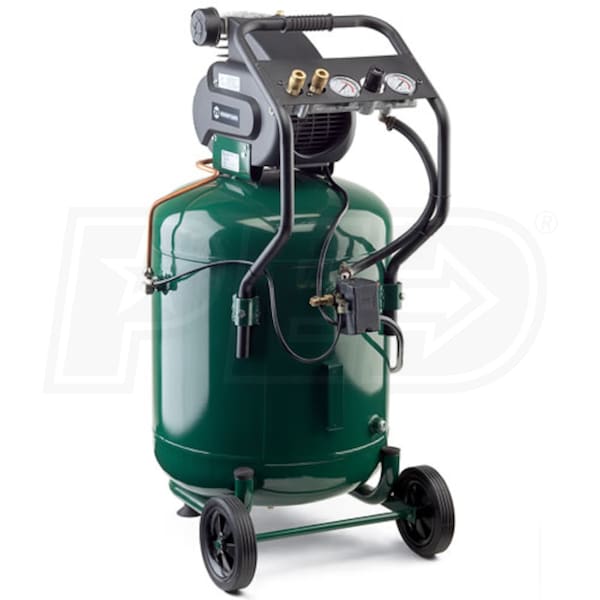

Rolair 2-HP 24-Gallon (Direct Drive) Cast-Iron Air Compressor

Model:

FC250090L

Write A Review
$799.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks

Rolair 2-HP 24-Gallon (Direct Drive) Cast-Iron Air Compressor
Rolair 2-HP 24-Gallon (Direct Drive) Cast-Iron Air Compressor
Model: FC250090L
$799.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Vertical

CFM

5.1

Tank Size

24

  • 2 HP 3400 RPM Motor
  • Heavy duty, industrial grade 115V motor stands up to frequent use
  • Ball bearings provide greater durability
  • Contractor-Grade Single Stage Pump
  • Durable stainless reed valves & cast iron cylinder last longer
  • Ball bearings, filter/silencer, & splash lube run smooth & quiet
  • Overload Protected With Manual Reset
  • Protects the air compressor, lets you get back to work quickly
  • Portable & Powerful 95-125 PSI Operating Pressure
  • Puts out 5.1 CFM @ 90 PSI; 100% Duty Cycle
  • Easy to transport with wheels & handles
  • Built-In Regulator With Gauge
  • Lets you adjust the air line pressure accurately
  • Safety relief valve protects you in case of overload
  • Factory Tested
  • 12 oz. crankcase is pre-filled with oil; arrives ready to go
  • 24 Gallon Tank
  • Large tank lets you work longer with fewer interruptions
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

FC250090L
specs product image PID-7264
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
14.6
Engine
HP
2
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.1
CFM Rated @
90 PSI
CFM @ 40 PSI
5.4
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Duty Cycle
100%
Tank
Tank Size
24 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
160 Pounds
Consumer Warranty
1 Year
Product Length
23 Inches
Product Width
28 Inches
Product Height
44 Inches
Power Type
Electric
UPC
662865002966

Reviews

Rolair FC250090L Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Melissa, the Air Compressor Expert
Hi Steve, I am looking at the Rolair 24 gallon direct drive compressor. My primary concerns are having a very low noise level, portability (up and down stairs) and long life expectancy with moderate use. (not professional) How quiet and durable is this unit? Thanks, Bob
Robert Staricka
from Minnesota
October 08, 2016
