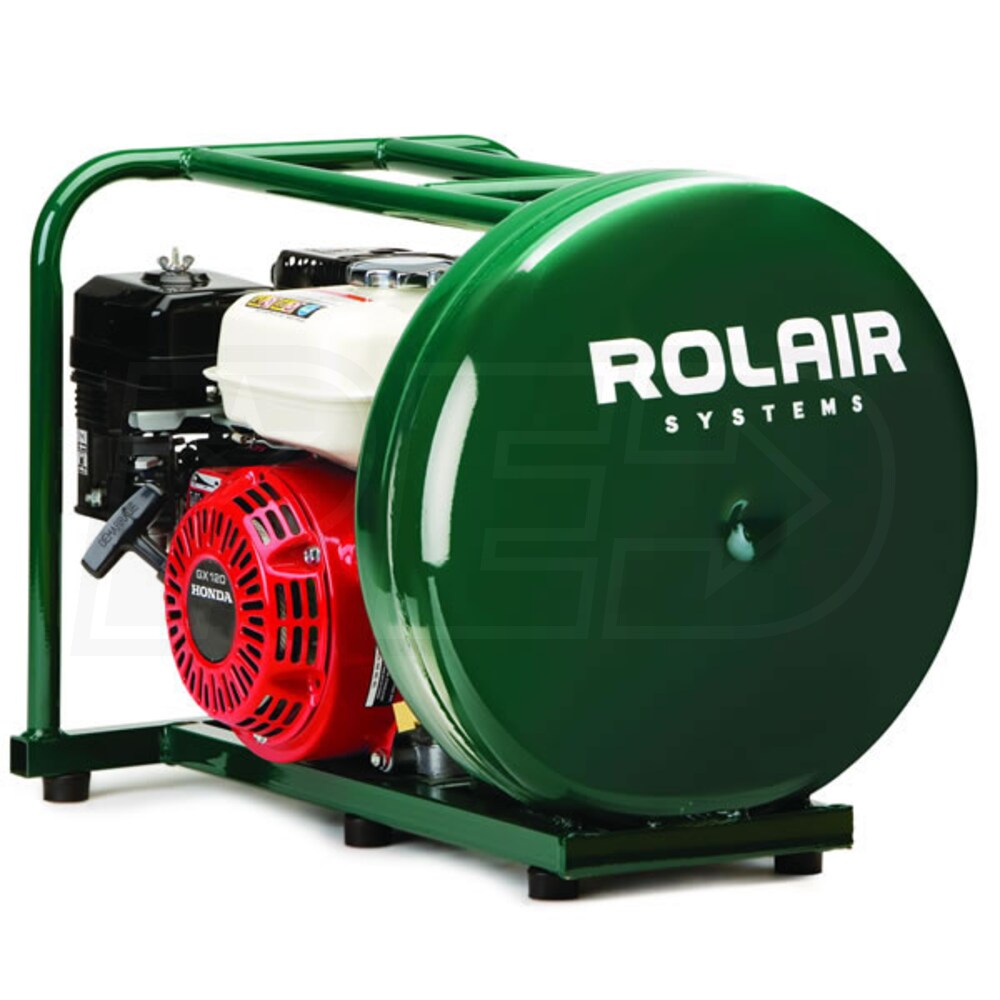

Rolair 3.5-HP 4.5-Gallon Contractor Pancake Gas Powered Air Compressor w/ Honda GX160 Engine
Model:
GD5000PV5H
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Pancake
Engine Brand
Honda GX
CFM
4.6
Tank Size
4.5
- 118cc Honda Commercial Grade GX120 Engine
- Starts easily, runs reliably
- Cast iron cylinder sleeve handles rigorous jobsite use
- Work any jobsite before electricity is wired in
- Automatic Engine Throttle
- Provides fuel economy & long service life
- Heavy Duty Single Stage Pump
- Delivers 4.6 CFM @ 90 PSI; runs roofing guns, finish nailers, etc
- Direct Drive With Unique Synchro-Balanced Coupling
- Splash lubrication for a smooth running pump & longer pump life
- Air Line Regulator & Pressure Gauge
- Pressure gauge reads 0-200 in 5-pound gradations
- Universal quick-disconnect with 1/4" plug fits many tools
- Easy To Transport
- Weighs 72 pounds; fits in truck bed, trailer, or trunk
- Roll cage construction protects the engine & pump
- Safety Relief Valve
- 4.5 gallon air tank is rated to 135 PSI
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
GD5000PV5H
General Information
Product Category
Air Compressor - Portable
Engine
HP
3.5
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
Yes
Motor
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4.6
CFM Rated @
90 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
4.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
72 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
22 Inches
Product Width
16 Inches
Product Height
16 Inches
Power Type
Gas
UPC
662865012743
Additional Model Numbers
GD4000PV5H, GD5000PV5H
