Product Description
+−
Grade
Style
CFM
2.4
CFM Rated @ 90 PSI
Tank Size
2.5
Gallons
Grade
Contractor
CFM
2.4 CFM Rated @ 90 PSI
Tank Size
2.5 Gallons
Features
Features
- **Upgraded JC10 Replacement**

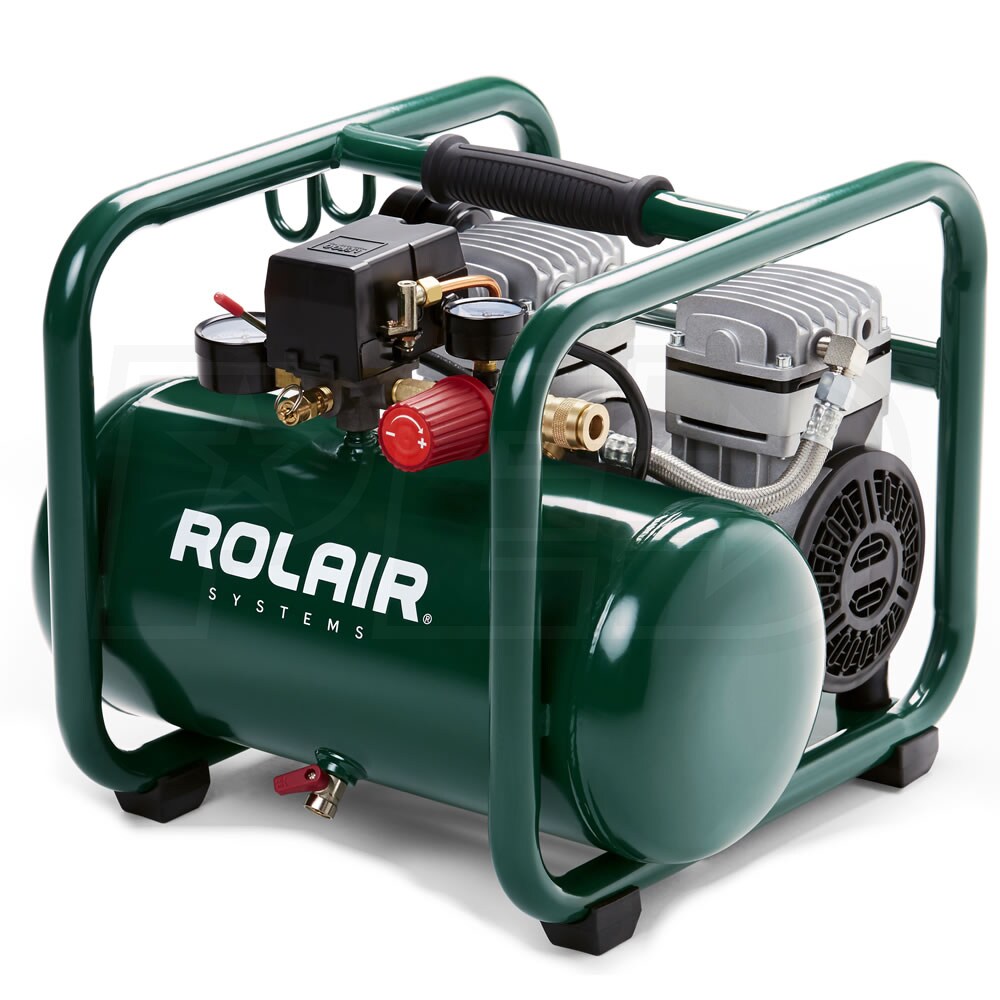

- 1 HP Hand-Carried Air Compressor
- Great for powering inside finish air tools
- Low 1725 RPM, 7.5 Amp, 115V Motor
- Produces only 60 dB, about the same as a conversation
- Quiet enough to work next to all day without stress
- Oil-Less 2 Cast Aluminum Cylinder Pump
- Sealed pump means less maintenance
- Start / Stop Pressure Switch
- Set for 95-125 PSI; delivers 3.8 CFM at 40 PSI, 2.4 CFM at 90 PSI
- 2.5 Gallon Air Tank

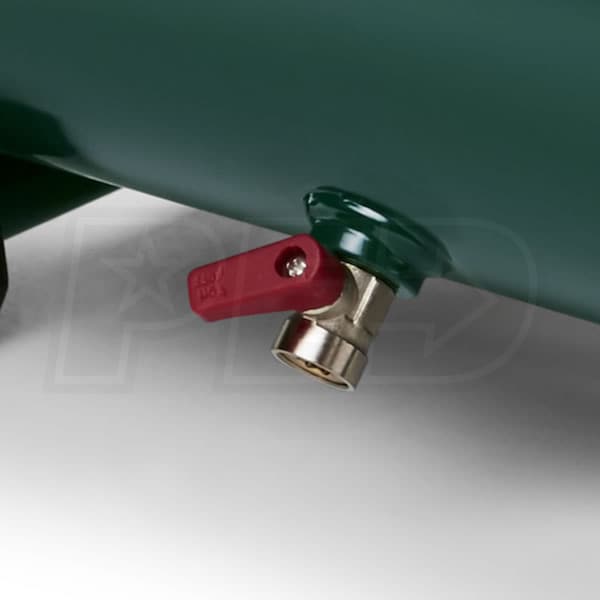

- Ball valve drain for easy maintenance
- Roll Cage Design
- Protects pump, motor & controls; weighs only 50 pounds
- Well balanced; easy to carry and transport

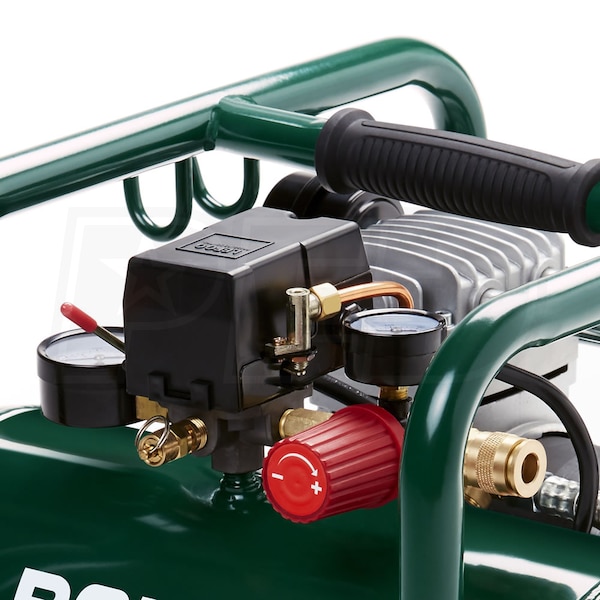

- Air Line Regulator & Pressure Gauge
- Top-mounted controls are large & easy to read
- Intake Filter/Silencer
- Helps keep air flow clean & quiet; cleaner air helps your tools last longer
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
60
Magnetic Starter
No
Amp Draw
7.5
Engine
HP
1
Pump
CFM
2.4
CFM Rated @
90 PSI
CFM @ 40 PSI
3.8
Pump Material
Aluminum
Max PSI
125 PSI
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
2.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
50 Pounds
Consumer Warranty
1 Year
Product Length
16.5 Inches
Product Width
16.5 Inches
Product Height
14 Inches
Power Type
Electric
UPC
662865011340
Grade
Style
CFM
2.4
CFM Rated @ 90 PSI
Tank Size
2.5
Gallons
Grade
Contractor
CFM
2.4 CFM Rated @ 90 PSI
Tank Size
2.5 Gallons
Features
Features
- **Upgraded JC10 Replacement**
- 1 HP Hand-Carried Air Compressor
- Great for powering inside finish air tools
- Low 1725 RPM, 7.5 Amp, 115V Motor
- Produces only 60 dB, about the same as a conversation
- Quiet enough to work next to all day without stress
- Oil-Less 2 Cast Aluminum Cylinder Pump
- Sealed pump means less maintenance
- Start / Stop Pressure Switch
- Set for 95-125 PSI; delivers 3.8 CFM at 40 PSI, 2.4 CFM at 90 PSI
- 2.5 Gallon Air Tank
- Ball valve drain for easy maintenance
- Roll Cage Design
- Protects pump, motor & controls; weighs only 50 pounds
- Well balanced; easy to carry and transport
- Air Line Regulator & Pressure Gauge
- Top-mounted controls are large & easy to read
- Intake Filter/Silencer
- Helps keep air flow clean & quiet; cleaner air helps your tools last longer
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
60
Magnetic Starter
No
Amp Draw
7.5
Engine
HP
1
Pump
CFM
2.4
CFM Rated @
90 PSI
CFM @ 40 PSI
3.8
Pump Material
Aluminum
Max PSI
125 PSI
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
2.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
50 Pounds
Consumer Warranty
1 Year
Product Length
16.5 Inches
Product Width
16.5 Inches
Product Height
14 Inches
Power Type
Electric
UPC
662865011340
Product Specs
+−
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA
60
Magnetic Starter
No
Amp Draw
7.5
Engine
HP
1
Pump
CFM
2.4
CFM Rated @
90 PSI
CFM @ 40 PSI
3.8
Pump Material
Aluminum
Max PSI
125 PSI
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
2.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
50 Pounds
Consumer Warranty
1 Year
Product Length
16.5 Inches
Product Width
16.5 Inches
Product Height
14 Inches
Power Type
Electric
UPC
662865011340
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Could I use this to fill up the 33 gallon tank from my old compressor without waiting forever or worse yet hurting this compressor?
Jack H.
from West Virginia
November 18, 2018
Answer
You could use the JC10PLUS but do run the risk of overworking the compressor as it is only a 70% duty cycle. To fill the extra 33 gal tank could take up to 15 minutes of continuous running not to mention once you actually start using the air; the JC10PLUS will not be able to keep up and will more than likely overheat. If you want to use your 33 gal tank in line with a smaller unit, you are better off with a 2hp unit, something that will not only put out more air but able to handle filling the larger tank better.
